Yamaha MAXI SCOOTERS X-Max 250 2016

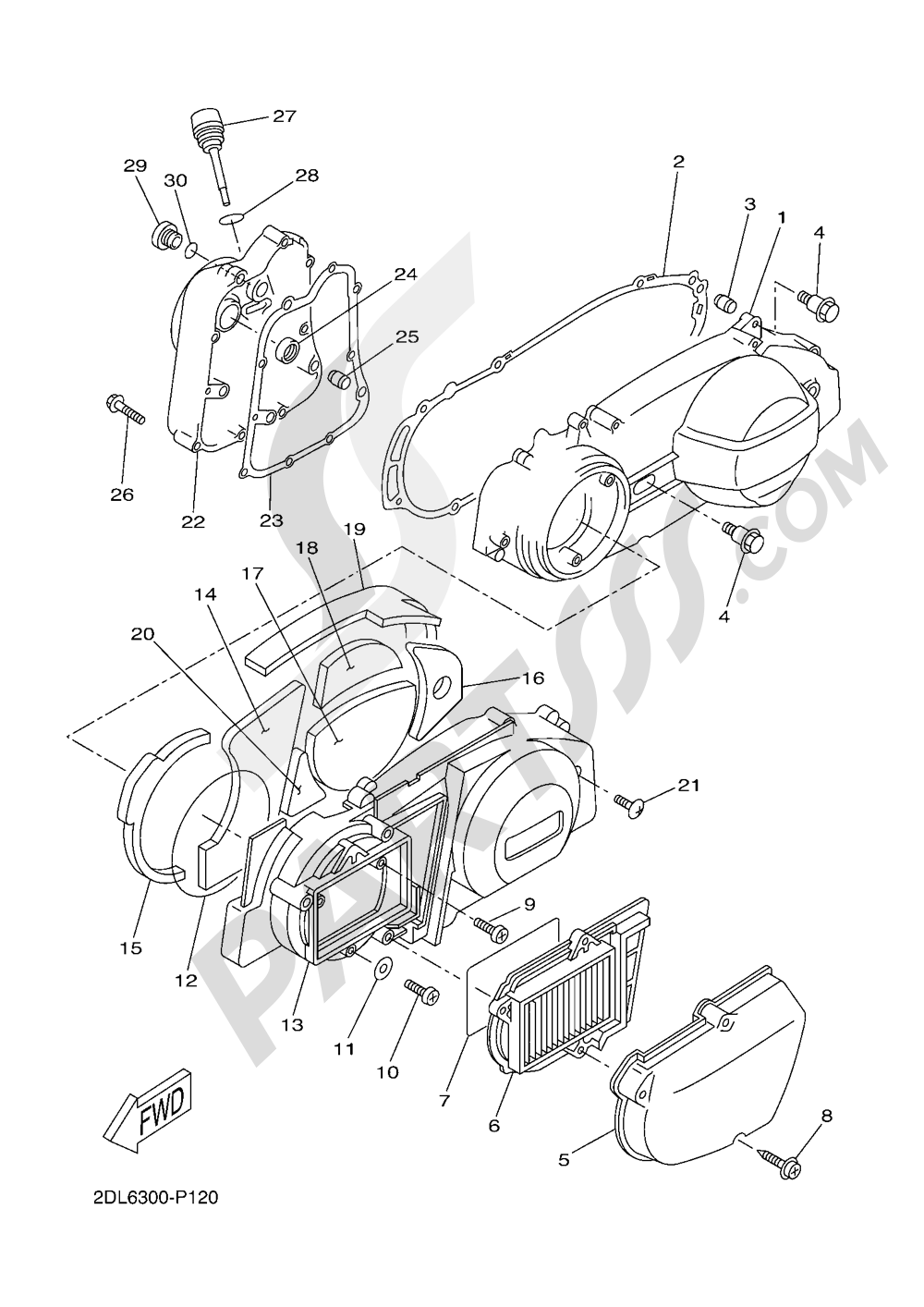

Add model to garageCRANKCASE COVER 1 Yamaha X-Max 250 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
COVER, CRANKCASE 1
5SEE54110000
|
296,45 € | 1 | Add |
| 2 |
GASKET, CRANKCASE
1C0E54510000
|
Obsolete | 1 | Not available |
| 3 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 4 |
BOLT
9010906X2000
|
Obsolete | 1 | Not available |
| 5 |
DUCT, AIR
5GM154710000
|
37,07 € | 1 | Add |
| 6 |
ELEMENT 1
5GM154070000
|
27,96 € | 1 | Add |
| 7 |
SEAL
1VJ144620000
|
6,43 € | 1 | Add |
| 8 |
SCREW, TAPPING
901670500300
|
0,62 € | 1 | Add |
| 9 |
SCREW, PAN HEAD WITH WASHER
976070622000
|
0,52 € | 10 | Add |
| 10 |
SCREW, PAN
985170602000
|
2,01 € | 5 | Add |
| 11 |
WASHER(6TA)
929070660000
|
0,62 € | 10 | Add |
| 12 |
SEAL, AIR DUCT
5SEE54720000
|
5,02 € | 1 | Add |
| 13 |
COVER, CRANKCASE 3
37PE54310000
|
Obsolete | 1 | Not available |
| 14 |
DAMPER, ENGINE MOU
5SEE53160000
|
6,80 € | 1 | Add |
| 15 |
DAMPER, ENGINE MOU
5SEE53260000
|
2,55 € | 1 | Add |
| 16 |
DAMPER 3
5SEE53350000
|
4,71 € | 1 | Add |
| 17 |
DAMPER 4
5SEE53370000
|
4,71 € | 1 | Add |
| 18 |
DAMPER, ENGINE MOU
5SEE53380000
|
3,65 € | 1 | Add |
| 19 |
PROTECTOR
5SEE54910000
|
5,49 € | 1 | Add |
| 20 |
PROTECTOR, COVER
5SEE54990000
|
7,67 € | 1 | Add |
| 21 |
BOLT 1
3KJ154810000
|
9,07 € | 1 | Add |
| 22 |
COVER, CAP
37PE54170000
|
235,98 € | 1 | Add |
| 23 |
GASKET
4HC154530000
|
21,80 € | 1 | Add |
| 24 |
OIL SEAL (3Y1)
931011409200
|
16,91 € | 1 | Add |
| 25 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 26 |
BOLT, FLANGE
9010506X3200
|
Obsolete | 10 | Not available |
| 27 |
PLUG, OIL
1C0E53630000
|
Obsolete | 1 | Not available |
| 28 |
O-RING
9321019X0000
|
1,31 € | 10 | Add |
| 29 |
PLUG
37PE51890000
|
24,29 € | 1 | Add |
| 30 |
O-RING
9321015X0300
|
1,31 € | 10 | Add |
