Yamaha MT-SERIES MT-01 2005

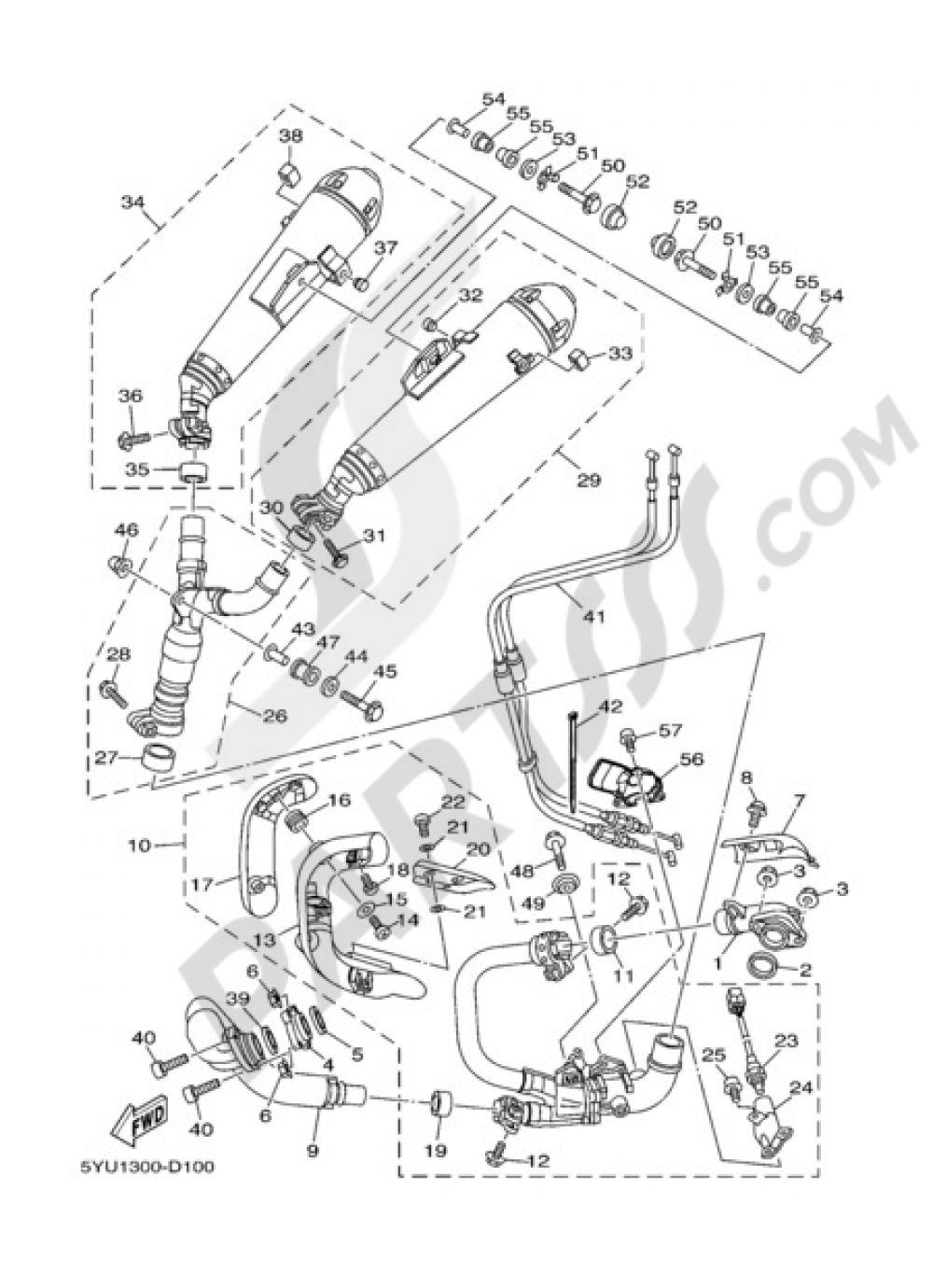

Add model to garageEXHAUST Yamaha MT-01 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
JOINT, EXHAUST 1
5YU146150000
|
Obsolete | 1 | Not available |
| 2 |
GASKET, EXHAUST PIPE
3EG146130000
|
16,15 € | 1 | Add |
| 3 |
NUT, SELF-LOCKING(3BN)
901850814600
|
3,43 € | 1 | Add |
| 4 |
JOINT 3
5YU1465H0000
|
167,47 € | 1 | Add |
| 5 |
GASKET, EXHAUST PIPE
3EG146130000
|
16,15 € | 1 | Add |
| 6 |
NUT, SELF-LOCKING(3BN)
901850814600
|
3,43 € | 1 | Add |
| 7 |
PROTECTOR, EXHAUST PIPE
5YU146280000
|
324,35 € | 1 | Add |
| 8 |
BOLT
901110606000
|
2,40 € | 1 | Add |
| 9 |
EXHAUST PIPE ASSY 2
5YU146200000
|
819,55 € | 1 | Add |
| 10 |
EXHAUST PIPE ASSY 1
5YU146100000
|
Obsolete | 1 | Not available |
| 11 |
GASKET, SILENCER
5YU147550000
|
46,88 € | 1 | Add |
| 12 |
BOLT, FLANGE(3EF)
950240803500
|
1,66 € | 1 | Add |
| 13 |
PROTECTOR, MUFFLER 1
5YU147180000
|
317,82 € | 1 | Add |
| 14 |
SCREW, BIND(J45)
989800601200
|
1,77 € | 5 | Add |
| 15 |
WASHER, PLATE
902010681600
|
2,06 € | 1 | Add |
| 16 |
GROMMET
904801700100
|
9,34 € | 1 | Add |
| 17 |
PROTECTOR, MUFFLER 2
5YU147280000
|
320,95 € | 1 | Add |
| 18 |
BOLT, BUTTON
920140802000
|
1,49 € | 1 | Add |
| 19 |
GASKET, SILENCER
5PX147550000
|
32,45 € | 1 | Add |
| 20 |
PROTECTER, MUFFLER 3
5YU147380000
|
140,48 € | 1 | Add |
| 21 |
WASHER, PLATE
902010501500
|
3,37 € | 1 | Add |
| 22 |
BOLT
901110603100
|
2,01 € | 1 | Add |
| 23 |
SENSOR
5YU8592A0000
|
Obsolete | 1 | Not available |
| 24 |
COVER, 1
5YU1479H0000
|
Obsolete | 1 | Not available |
| 25 |
BOLT, WITH WASHER(1FK)
901190611500
|
2,68 € | 1 | Add |
| 26 |
CATALYST ASSY.
5YU147400000
|
Obsolete | 1 | Not available |
| 27 |
GASKET, MUFFLER
5YU147140000
|
46,88 € | 1 | Add |
