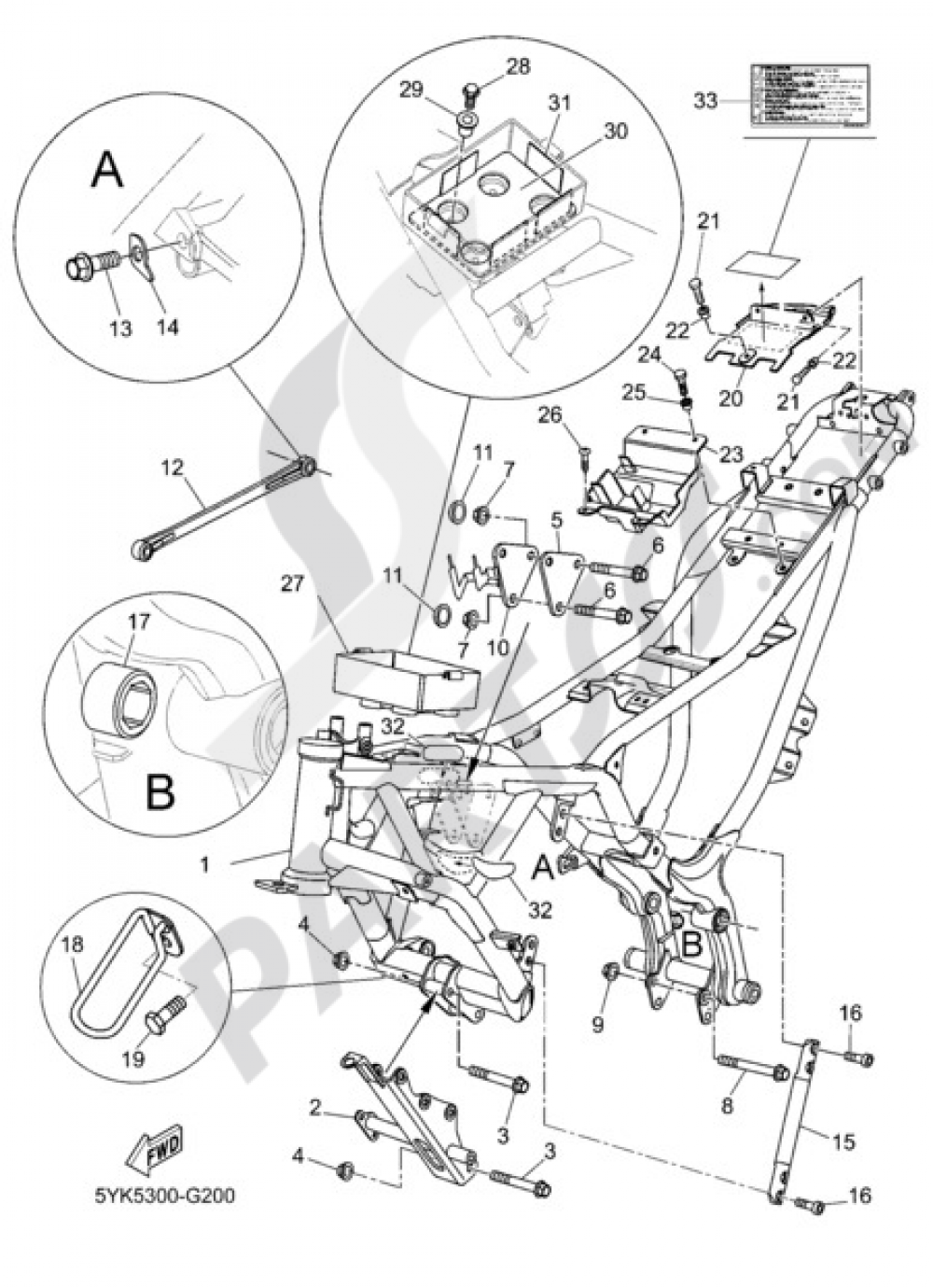

    FRAME Yamaha MT-03 2008

    FRAME Yamaha MT-03 2008
    FRAME Yamaha MT-03 2008
    Pos.
    Ref./Description
    Price
    Qty.
    1
    FRAME COMP.
    5YKF111001P0
    1.885,18 €
    1
    2
    ENGINE BRACKET COM
    5YKF14000000
    61,76 €
    1
    3
    BOLT, FLANGE(7LU)
    958171007000
    3,67 €
    1
    4
    NUT, SELF-LOCKING(JN5)
    956071020000
    2,88 €
    1
    5
    STAY, ENGINE 2
    5YKF13150000
    3,86 €
    1
    6
    BOLT, FLANGE(87Y)
    958171005500
    3,06 €
    1
    7
    NUT, SELF-LOCKING(JN5)
    956071020000
    2,88 €
    1
    8
    BOLT, WASHER BASED(3RB)
    901051073300
    3,06 €
    1
    9
    NUT, SELF-LOCKING(JN5)
    956071020000
    2,88 €
    1
    10
    ENGINE BRACKET COM
    5YKF14100000
    13,23 €
    1
    11
    CAP
    5YKF13990000
    0,74 €
    1
    12
    CROSS BAR
    5YKF142V0000
    39,13 €
    1
    13
    BOLT, FLANGE
    901051206300
    7,20 €
    1
    14
    WASHER, SPECIAL 1
    5YKF17150000
    2,01 €
    1
    15
    TENSION PIPE COMP.
    5YKF11040000 5YKF110400P0
    44,72 €
    1
    16
    BOLT
    9131L0801600
    0,54 €
    10
    17
    NUT
    5YKF14940000
    7,90 €
    1
    18
    PROTECTOR
    5YKF193A0000
    18,20 €
    1
    19
    BOLT.HEX.SOCKET
    9131L0601200
    0,27 €
    10
    20
    COVER
    5YKF117F0000
    7,73 €
    1
    21
    BOLT
    9701M0601200
    0,22 €
    1
    22
    COLLAR
    9038706X0200
    2,37 €
    1
    23
    HOLDER, RELAY
    5YKH19520100
    5,06 €
    1
    24
    BOLT,HEX.,
    9701L0601400
    0,27 €
    5
    25
    COLLAR
    9038706X0200
    2,37 €
    1
    26
    SCREW, TRUSS TAP.
    977075001200
    0,50 €
    5
    27
    BOX, BATTERY
    5YKF177G0000
    6,45 €
    1
