Yamaha MT-SERIES MT-03 2011

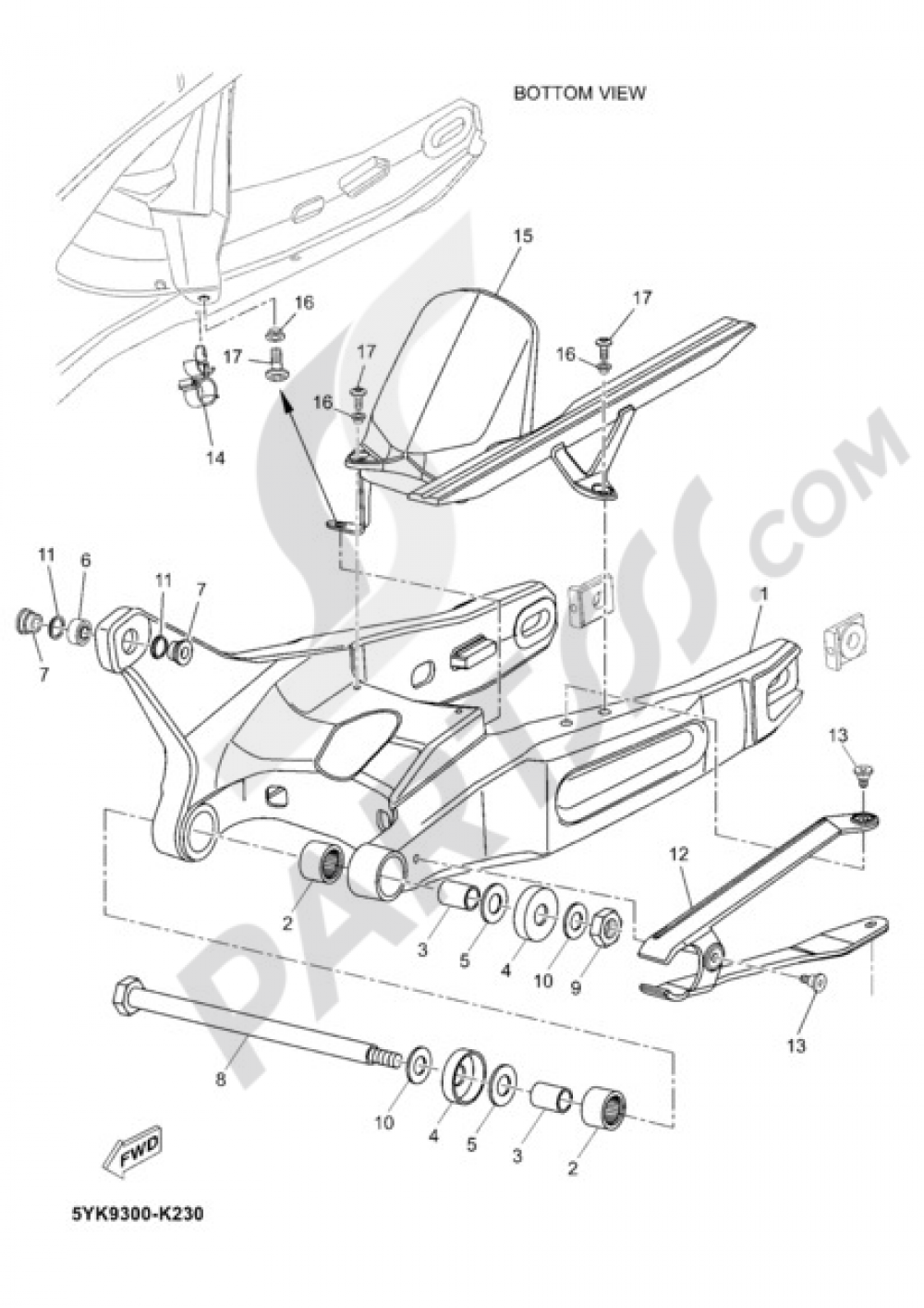

Add model to garageREAR ARM Yamaha MT-03 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
REAR ARM COMP.
5YKWF2111100
|
1.049,61 € | 1 | Add |
| 2 |
BEARING
93320325Y300
|
26,10 € | 1 | Add |
| 3 |
BUSH 2
5YKF21240000
|
18,82 € | 1 | Add |
| 4 |
COVER, THRUST 2
47X221290000
|
18,93 € | 1 | Add |
| 5 |
WASHER, PLATE(47X)
90201161J200
|
6,45 € | 1 | Add |
| 6 |
BEARING(4JT)
93399999T400
|
68,39 € | 1 | Add |
| 7 |
COLLAR
90387128T700
|
7,45 € | 1 | Add |
| 8 |
SHAFT, PIVOT
5YK221410000
|
56,82 € | 1 | Add |
| 9 |
NUT, SELF-LOCKING
901851600200
|
11,74 € | 1 | Add |
| 10 |
WASHER, PLATE (5X6)
90201160F600
|
7,79 € | 1 | Add |
| 11 |
SEAL, DUST
3JE224750000
|
3,06 € | 1 | Add |
| 12 |
SEAL, GUARD
5YKF21510000
|
Obsolete | 1 | Not available |
| 13 |
SCREW, 1
1C3229691000
|
2,27 € | 1 | Add |
| 14 |
CLAMP
904641601100
|
4,69 € | 1 | Add |
| 15 |
COVER, REAR FENDER
5YKF16510000
|
Obsolete | 1 | Not available |
| 16 |
COLLAR
9038706X3000
|
1,60 € | 1 | Add |
| 17 |
BOLT,HEX. SOCKET BUTTON
901110609500
|
2,48 € | 1 | Add |
