Yamaha MT-SERIES MT-09 2014

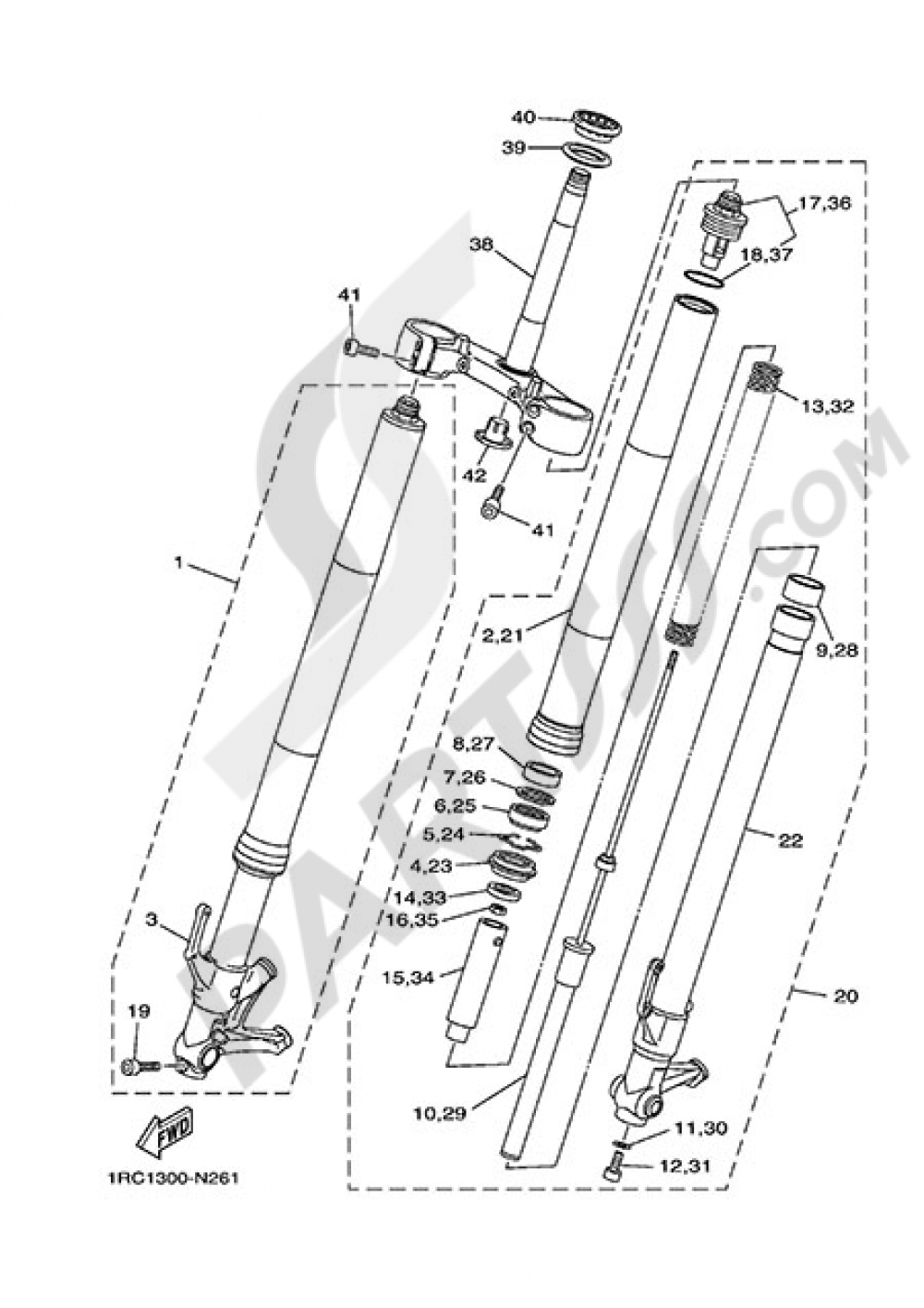

Add model to garageFRONT FORK Yamaha MT-09 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HORQUILLA DELANTERA COMPL.(MD)
1RC231030100
|
663,79 € | 1 | Add |
| 2 |
TUBO EXTERIOR 1
1RC231260100
|
284,15 € | 1 | Add |
| 3 |
TUBO INTERIOR COMPLETO 2
1RC231200100
|
254,32 € | 1 | Add |
| 4 |
SEAL, DUST
4EB231440000
|
24,24 € | 1 | Add |
| 5 |
CLIP, OIL SEAL
26H231560000
|
4,08 € | 1 | Add |
| 6 |
OIL SEAL
4EB231450100
|
17,53 € | 1 | Add |
| 7 |
WASHER, OIL SEAL
36Y231461000
|
10,49 € | 1 | Add |
| 8 |
METAL, SLIDE 1
1RC231250000
|
21,38 € | 1 | Add |
| 9 |
METAL, SLIDE
4FM231714000
|
21,38 € | 1 | Add |
| 10 |
CYLINDER COMP., FRONT FORK
1RC231701000
|
396,09 € | 1 | Add |
| 11 |
GASKET
50923158L000
|
2,25 € | 1 | Add |
| 12 |
BOLT, HEXAGON SOCKET HEAD
3D8231810000
|
10,80 € | 1 | Add |
| 13 |
SPRING, FRONT FORK
1RC231410000
|
92,80 € | 1 | Add |
| 14 |
WASHER
5VY122770000
|
12,97 € | 1 | Add |
| 15 |
SPACER
1RC231180000
|
19,12 € | 1 | Add |
| 16 |
NUT
3LC233570000
|
0,52 € | 5 | Add |
| 17 |
BOLT, CAP
1RC231111000
|
282,89 € | 1 | Add |
| 18 |
O-RING
3XJ23147L000
|
7,89 € | 1 | Add |
| 19 |
BOLT, SOCKET
913140803500
|
10,09 € | 1 | Add |
| 20 |
HORQUILLA DELANTERA COMPL.(MI)
1RC231020100
|
663,79 € | 1 | Add |
| 21 |
TUBO EXTERIOR 1
1RC231260100
|
284,15 € | 1 | Add |
| 22 |
TUBO INTERIOR COMPLETO 1
1RC231100100
|
254,32 € | 1 | Add |
| 23 |
SEAL, DUST
4EB231440000
|
24,24 € | 1 | Add |
| 24 |
CLIP, OIL SEAL
26H231560000
|
4,08 € | 1 | Add |
| 25 |
OIL SEAL
4EB231450100
|
17,53 € | 1 | Add |
| 26 |
WASHER, OIL SEAL
36Y231461000
|
10,49 € | 1 | Add |
| 27 |
METAL, SLIDE 1
1RC231250000
|
21,38 € | 1 | Add |
