Yamaha OFF-ROAD WR400F 2002

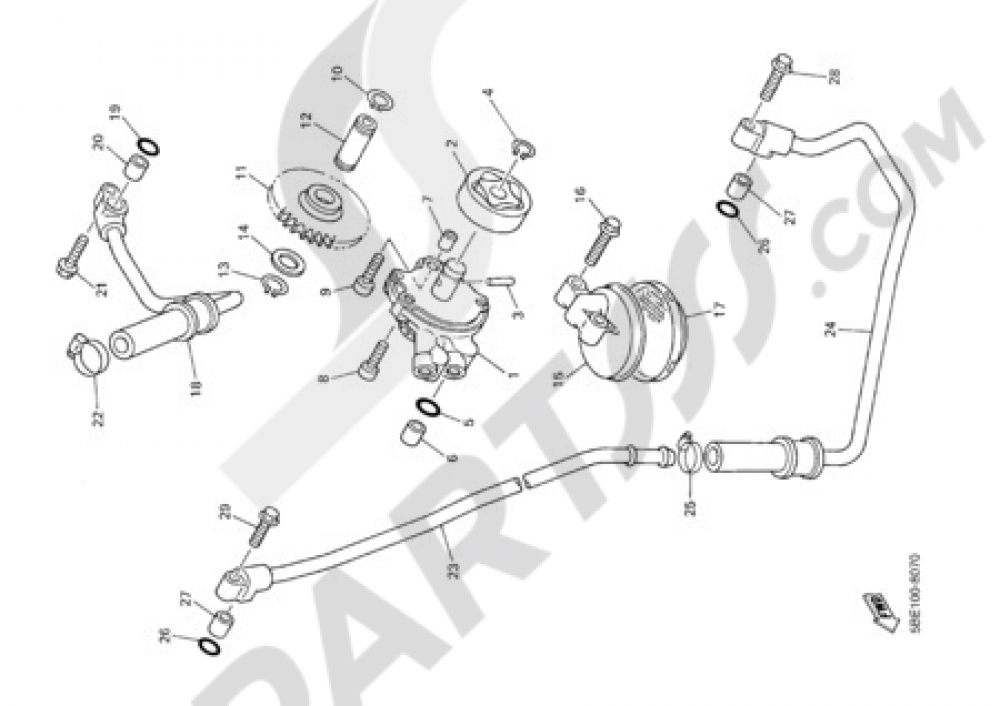

Add model to garageOIL PUMP Yamaha WR400F 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
OIL PUMP ASSY
5BE133001000
|
206,86 € | 1 | Add |
| 2 |
ROTOR ASSY 1
1HX133101000
|
Obsolete | 1 | Not available |
| 3 |
PIN,DOWEL
936031707000
|
5,26 € | 5 | Add |
| 4 |
CIRCLIP (4G0)
934401008500
|
2,55 € | 1 | Add |
| 5 |
O-RING (371)
932101019700
|
2,33 € | 1 | Add |
| 6 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 7 |
PIN, DOWEL(6G8)
995300801200
|
1,46 € | 1 | Add |
| 8 |
BOLT,SOCKET
913170602500
|
1,60 € | 5 | Add |
| 9 |
BOLT, SOCKET
913140603000
|
1,82 € | 1 | Add |
| 10 |
CIRCLIP(2R6)
990010860000
|
1,54 € | 1 | Add |
| 11 |
GEAR, OIL PUMP IDLE
5BE133410000
|
86,81 € | 1 | Add |
| 12 |
SHAFT, IDLE GEAR
5BE133420000
|
27,28 € | 1 | Add |
| 13 |
CIRCLIP(10Y)
990091240000
|
1,82 € | 1 | Add |
| 14 |
WASHER PLATE 164185720000
902011216600
|
2,97 € | 1 | Add |
| 16 |
BOLT, WASHER BASED(4KG)
90105060A000
|
1,75 € | 1 | Add |
| 17 |
STRAINER, OIL
5BE134110000
|
24,41 € | 1 | Add |
| 18 |
HOSE, OIL 1
5BE134641000
|
Obsolete | 1 | Not available |
| 19 |
O-RING (371)
932101019700
|
2,33 € | 1 | Add |
| 20 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 21 |
BOLT, WASHER BASED(4KG)
90105060A000
|
1,75 € | 1 | Add |
| 22 |
HOSE CLAMP ASSY(64X)
9045022M1400
|
11,08 € | 1 | Add |
| 23 |
PIPE, OIL 1
5BE134160000
|
Obsolete | 1 | Not available |
| 24 |
HOSE, OIL 2
5BE134651000
|
Obsolete | 1 | Not available |
| 25 |
HOSE CLAMP ASSY(64X)
9045022M1400
|
11,08 € | 1 | Add |
| 26 |
O-RING (371)
932101019700
|
2,33 € | 1 | Add |
| 27 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
