Yamaha OFF-ROAD WR450F 2005

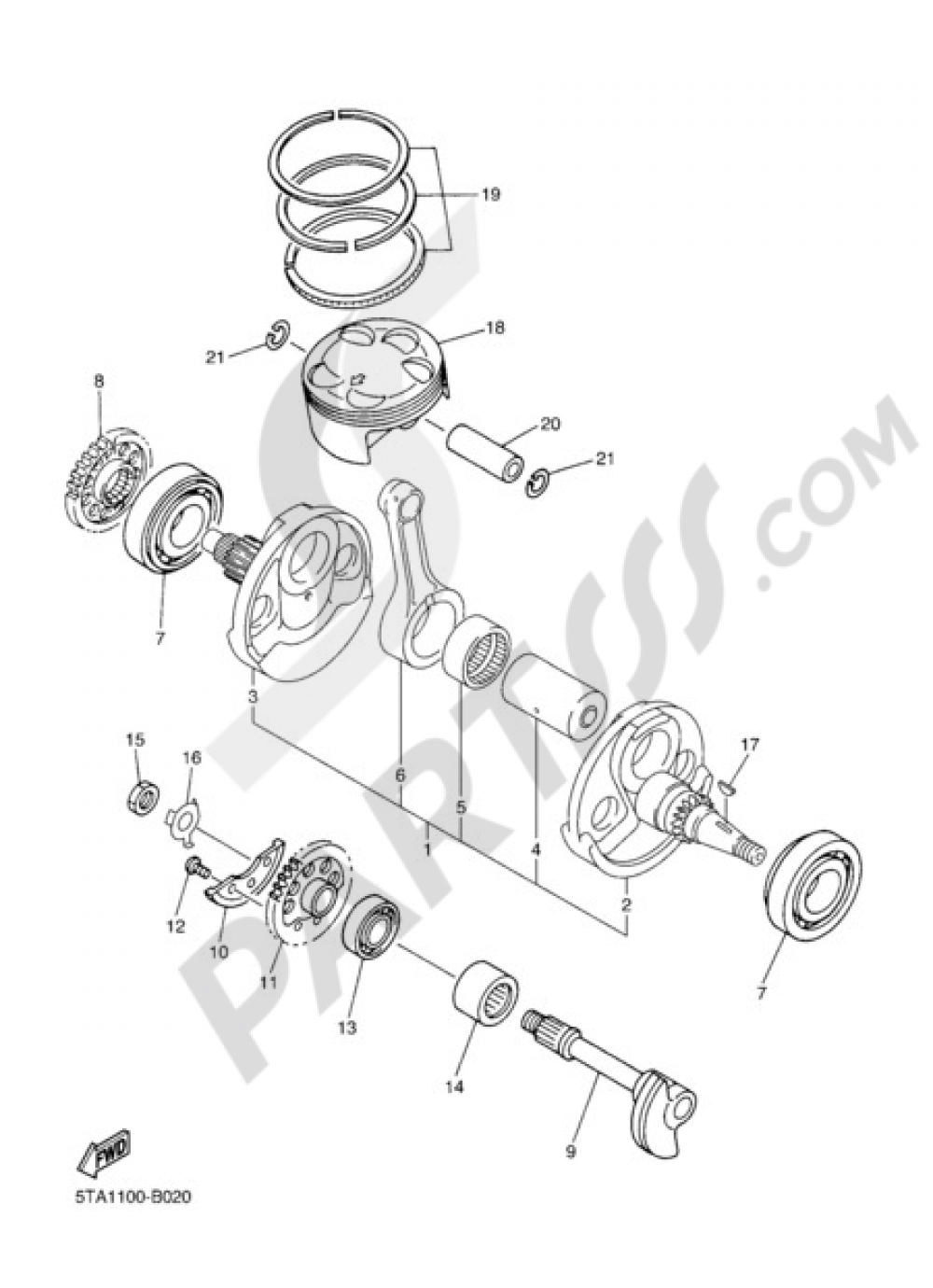

Add model to garageCRANKSHAFT & PISTON Yamaha WR450F 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT ASSY
5TJ114001100
|
Obsolete | 1 | Not available |
| 2 |
CRANK 1
5TJ114121000
|
Obsolete | 1 | Not available |
| 3 |
CRANK 2
5TA114220000
|
Obsolete | 1 | Not available |
| 4 |
PIN, CRANK 1
5TG116810100
|
85,70 € | 1 | Add |
| 5 |
BEARING
933106341700
|
112,38 € | 1 | Add |
| 6 |
ROD, CONNECTING
5XD116510000
|
119,52 € | 1 | Add |
| 7 |
BEARING
933063063300
|
82,10 € | 1 | Add |
| 8 |
GEAR, DRIVE
5TA115360000
|
122,88 € | 1 | Add |
| 9 |
SHAFT 1
5TA114551100
|
266,56 € | 1 | Add |
| 10 |
WEIGHT 1
5BE114540000
|
108,21 € | 1 | Add |
| 11 |
GEAR, BALANCE WEIGHT
5TA115310100
|
Obsolete | 1 | Not available |
| 12 |
SCREW(2VK)
901490625000
|
1,65 € | 5 | Add |
| 13 |
BEARING(37F)
933062033500
|
31,47 € | 1 | Add |
| 14 |
BEARING, CYLINDRICAL(3YL)
933116257400
|
81,79 € | 1 | Add |
| 15 |
NUT, HEXAGON
901701417100
|
5,31 € | 1 | Add |
| 16 |
WASHER, LOCK(4GA)
902151428700
|
5,67 € | 1 | Add |
| 17 |
KEY, WOODRUFF
902800300600
|
8,84 € | 1 | Add |
| 18 |
PISTON (STD)
5TJ116310000
|
159,45 € | 1 | Add |
| 19 |
PISTON RING SET (STD)
5JG116030000
|
81,16 € | 1 | Add |
| 20 |
PIN, PISTON
5TA116330000
|
41,74 € | 1 | Add |
| 21 |
CIRCLIP
934201808200
|
0,69 € | 1 | Add |
