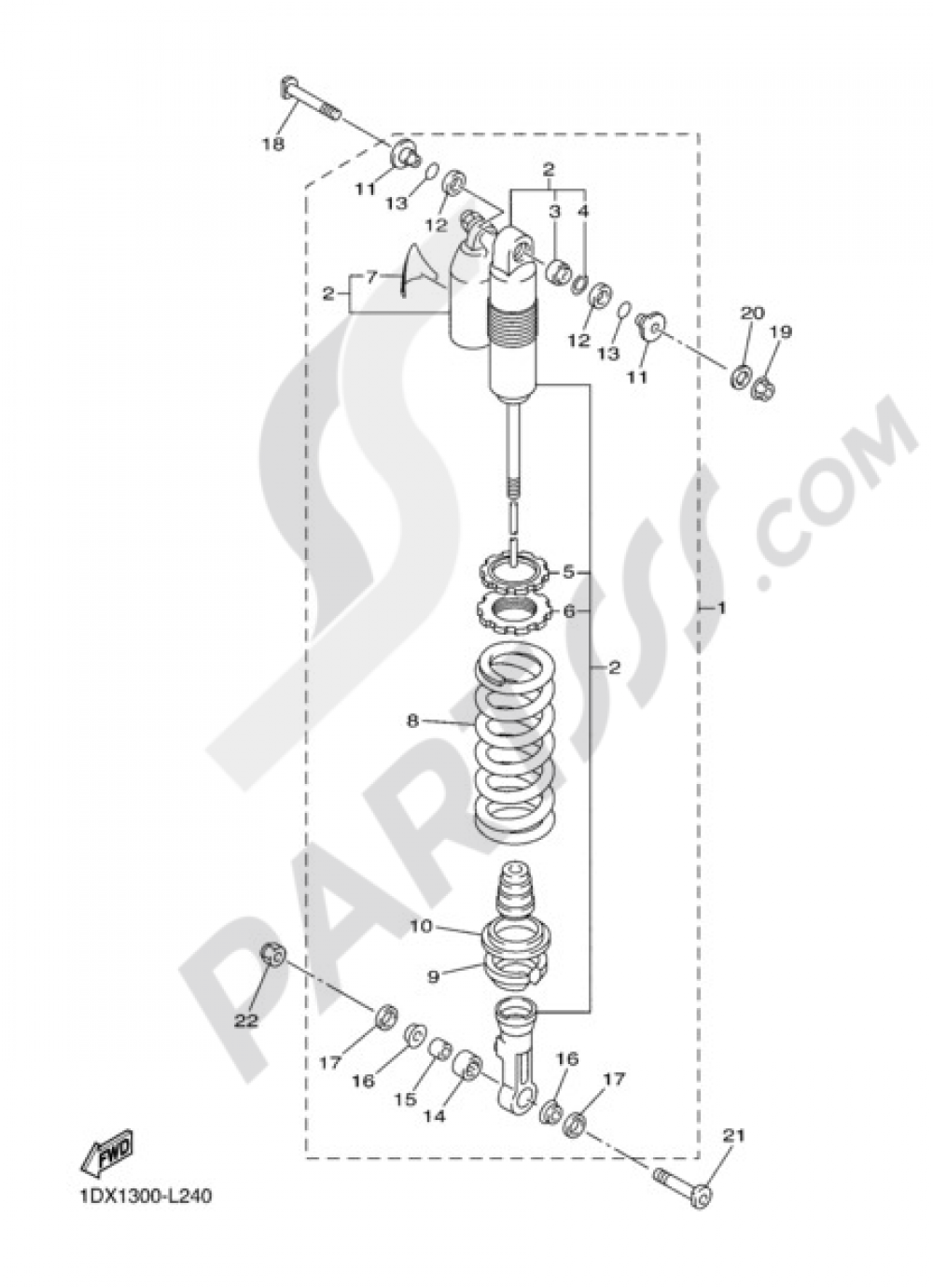

REAR SUSPENSION Yamaha WR450F 2012

Pos. Ref./Description Price Qty.
1 SHOCK ABSORBER ASSY, REAR
1DX222000000
854,41 € 1 Add
2 DAMPER SUB ASSY
1DX222010000
1.486,71 € 1 Add
3 BUSH, SHOCK ABSORBER LOWER
4JX222260000
57,82 € 1 Add
4 CIRCLIP
5DH231830000
2,39 € 1 Add
5 GUIDE, SPRING 3
3SP222340000
46,72 € 1 Add
6 SEAT, SPRING UPPER
3SP222130000
45,94 € 1 Add
7 LABEL, WARNING
4AA222594000
11,17 € 1 Add
8 SPRING
1DX222122000
374,81 € 1 Add
9 GUIDE, SPRING 1
5XE222140000
50,81 € 1 Add
10 GUIDE, SPRING 2
5MV222240000
13,71 € 1 Add
11 COLLAR, DISTANCE
1C3222535000
20,06 € 1 Add
12 SEAL, DUST
3JE224750000
2,96 € 1 Add
13 SEAL, RING
4EW224740000
3,49 € 1 Add
14 BEARING
5UN221760000
36,43 € 1 Add
15 BUSH
5MV221840000
26,48 € 1 Add
16 COLLAR, DISTANCE
5MV222530000
14,09 € 1 Add
17 SEAL, DUST
5NY224750000
12,30 € 1 Add
18 PERNO 2
5XE222420100 5XE222420000
7,92 € 1 Add
19 NUT, U FLANGE
956021020000
4,16 € 1 Add
20 958-69527-00 WASHER, PLAIN
929901020000 929021020000
1,50 € 1 Add
21 BOLT 1
5NY222410000
6,57 € 1 Add
22 NUT, SELF-LOCKING
901851001200
3,49 € 1 Add
