Yamaha OFF-ROAD YZ125 2000

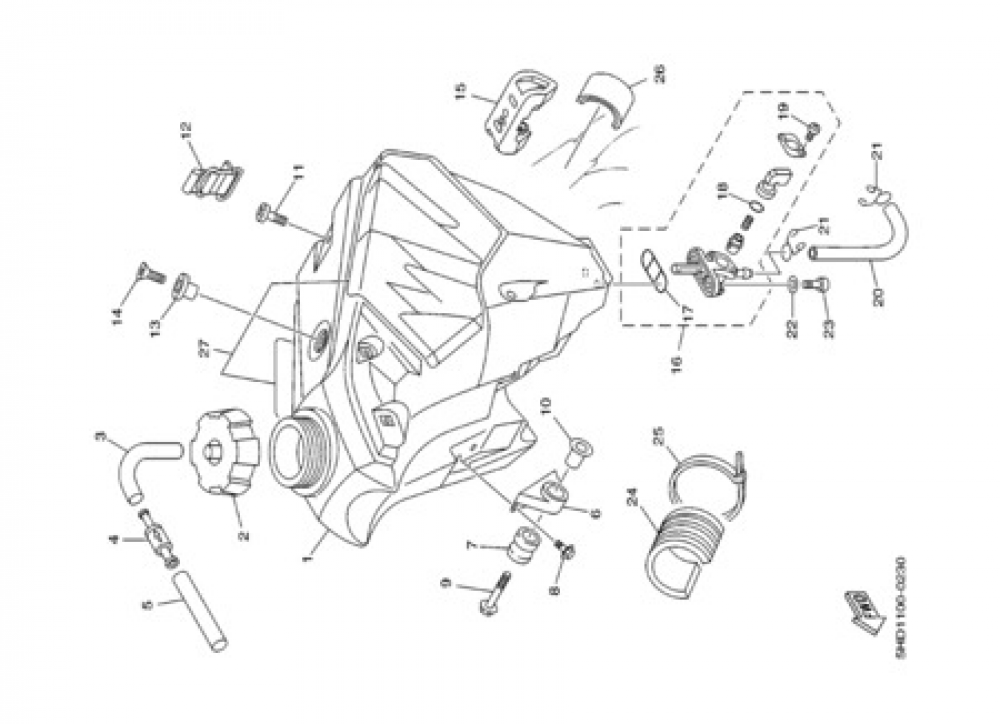

Add model to garageFUEL TANK Yamaha YZ125 2000
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FUEL TANK COMP.
5MV241100100
|
277,06 € | 1 | Add |
| 2 |
CAP ASSY
5KM246100000
|
106,39 € | 1 | Add |
| 3 |
HOSE (L1500)
90445090F600
|
11,76 € | 1 | Add |
| 4 |
PIPE JOINT ASSY
3XJ243800000
|
39,50 € | 1 | Add |
| 5 |
HOSE (L1500)
90445090F600
|
11,76 € | 1 | Add |
| 6 |
HOLDER, DAMPER
5XE241440000
|
30,36 € | 1 | Add |
| 7 |
GROMMET(4AA)
904801854900
|
6,80 € | 1 | Add |
| 8 |
BOLT, WASHER BASED(JA9)
901050669600
|
2,55 € | 1 | Add |
| 9 |
BOLT, WITH WASHER(3XP)
901190621400
|
2,43 € | 1 | Add |
| 10 |
WASHER, SPECIAL
3JD241860000
|
6,85 € | 1 | Add |
| 11 |
SCREW, BINDING
989070602000
|
1,37 € | 10 | Add |
| 12 |
BAND, TANK FITTING 1
3SP241730000
|
20,27 € | 1 | Add |
| 13 |
BRACKET, SEAT
4EW2412F0000
|
2,43 € | 1 | Add |
| 14 |
SCREW, FLAT
987070602500
|
0,62 € | 1 | Add |
| 15 |
DAMPER, LOCATING 1
4SS241810000
|
Obsolete | 1 | Not available |
| 16 |
FUEL COCK ASSY 1
3JD245002000
|
92,99 € | 1 | Add |
| 17 |
O-RING
4X8245120000
|
2,99 € | 1 | Add |
| 18 |
SEAL, COCK
3AJ245340100
|
4,42 € | 1 | Add |
| 19 |
SCREW, PAN HEAD (J10)
985800300800
|
0,69 € | 5 | Add |
| 20 |
HOSE (L210)
90445110F500
|
9,20 € | 1 | Add |
| 21 |
CLIP(1JH)
904671110600
|
2,43 € | 1 | Add |
| 22 |
WASHER, PLATE(3MB)
902020518700
|
0,62 € | 1 | Add |
| 23 |
SCREW 256241430000
901490601100
|
3,60 € | 10 | Add |
| 24 |
DAMPER, LOCATING 2
4SS241820000
|
Obsolete | 1 | Not available |
| 25 |
CLAMP(MF1)
904641515200
|
5,60 € | 1 | Add |
| 26 |
DAMPER 1
1UY216380000
|
2,29 € | 1 | Add |
