Yamaha OFF-ROAD YZ125 2008

Add model to garage

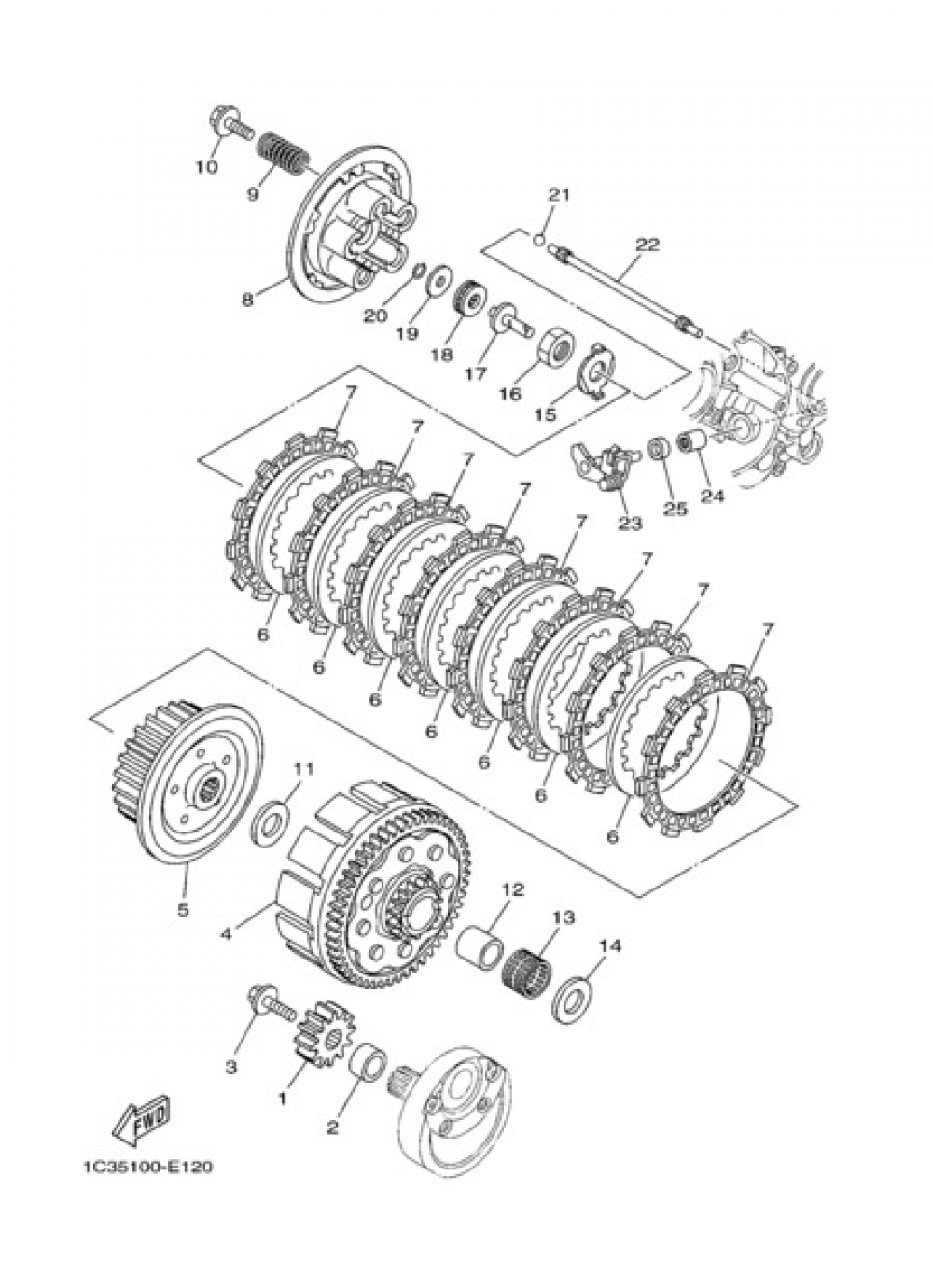

CLUTCH Yamaha YZ125 2008

Pos. Ref./Description Price Qty.
1 GEAR, PRIMARY DRIVE
1C3161110000
140,63 € 1 Add
2 COLLAR(3DL)
90387172K200
15,97 € 1 Add
3 BOLT, FLANGE
901050807100
4,98 € 1 Add
4 PRIMARY DRIVEN GEAR COMP.(74T)
1C3161500000
451,54 € 1 Add
5 BOSS, CLUTCH
5NY163710000
117,20 € 1 Add
6 PLACA DE EMBRAGUE
3XJ163241000 3XJ163240100
13,46 € 1 Add
7 PLATE, FRICTION
3XJ163210000
18,83 € 1 Add
8 PLATE, PRESSURE 1
5HD163510000
75,53 € 1 Add
9 SPRING, COMPRESSION (4H7)
905012359800
6,57 € 1 Add
10 SCREW, WITH WASHER (1W4)
901590601600
4,16 € 1 Add
11 WASHER, PLATE(1HX)
90201204K800 902012061100
10,24 € 1 Add
12 SPACER 1
1C3161810000
19,79 € 1 Add
13 BEARING
933102253900
31,71 € 1 Add
14 WASHER, PLATE(1HX)
90201204K800 902012061100
10,24 € 1 Add
15 WASHER, LOCK(4KB)
902151628900
9,40 € 1 Add
16 NUT, HEXAGON (30X)
901701632600
9,02 € 1 Add
17 ROD, PUSH 1
5NL163560000
63,59 € 1 Add
18 BEARING, THRUST(3AY)
933402100800
41,10 € 1 Add
19 WASHER, PLATE (24Y)
90201080H100
4,98 € 1 Add
20 CIRCLIP
934400718200
0,60 € 1 Add
21 BALL (498)
935113202700
2,99 € 5 Add
22 VARILLA DE EMPUJE 2
1C3163571100 1C3163571000
40,03 € 1 Add
23 PUSH LEVER ASSY
1C3163800000
57,05 € 1 Add
24 BEARING, CYLINDRICAL(50M)
933151104000
34,56 € 1 Add
25 OIL SEAL
931021000800
8,89 € 1 Add
