Yamaha OFF-ROAD YZ125 2013

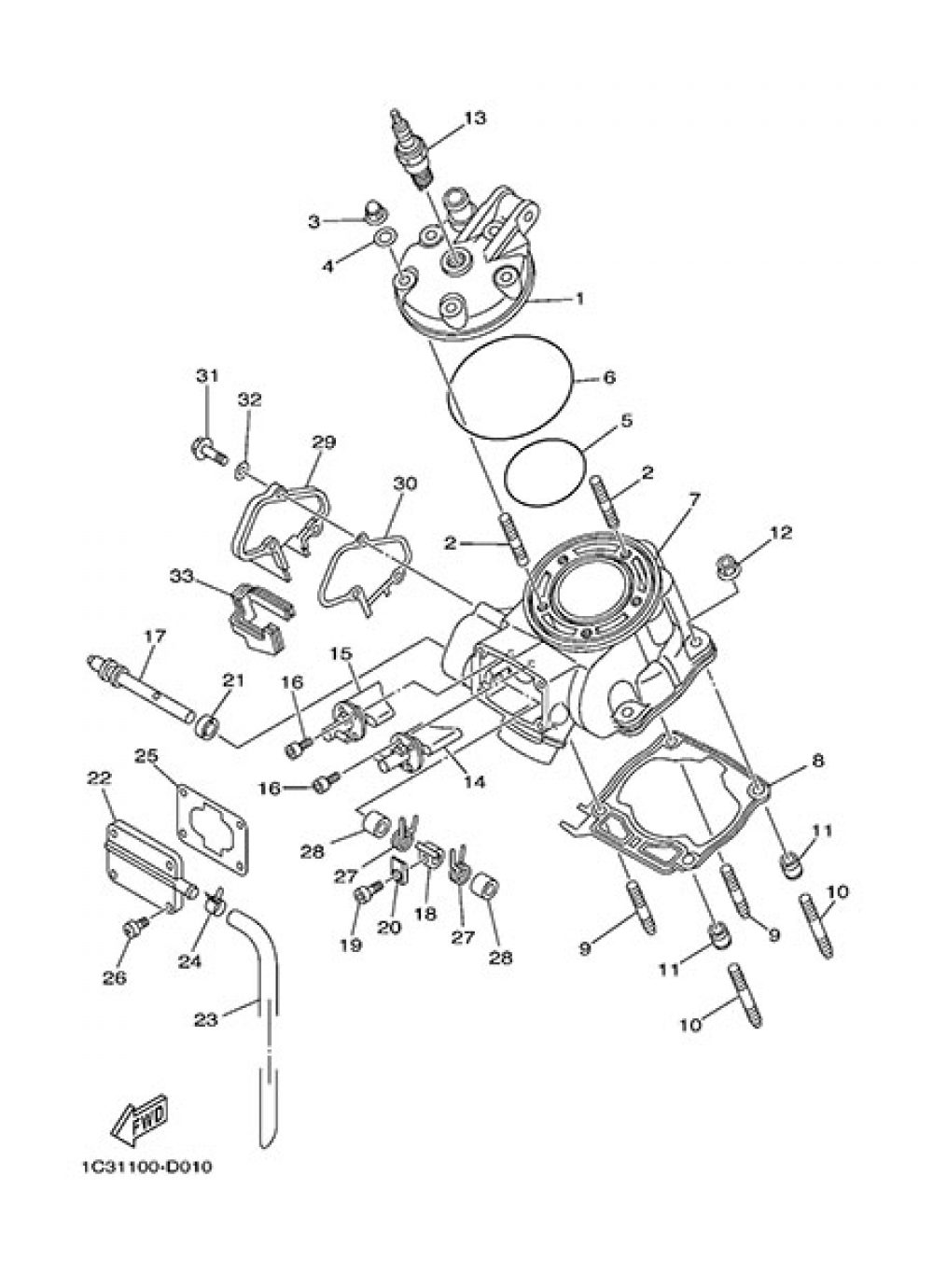

Add model to garageCYLINDER HEAD Yamaha YZ125 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CULATA CILINDRO 1
1C3111111100
|
177,77 € | 1 | Add |
| 2 |
BOLT, STUD
901160802700
|
2,57 € | 1 | Add |
| 3 |
NUT, CROWN
901760800500
|
1,94 € | 1 | Add |
| 4 |
WASHER, PLATE
90201080L800
|
4,36 € | 1 | Add |
| 5 |
O-RING (4U8)
932106344200
|
15,16 € | 1 | Add |
| 6 |
O-RING(3LD)
932109078500
|
9,34 € | 1 | Add |
| 7 |
CILINDRO 1
1C3113112100
|
437,97 € | 1 | Add |
| 8 |
GASKET, CYLINDER
1C3113510000
|
17,42 € | 1 | Add |
| 9 |
BOLT, STUD
901160803100
|
2,68 € | 1 | Add |
| 10 |
BOLT, STUD
901160802800
|
6,30 € | 1 | Add |
| 11 |
PIN, DOWEL
995901011400
|
5,97 € | 1 | Add |
| 12 |
NUT
901790801900
|
0,74 € | 1 | Add |
| 13 |
PLUG, SPARK(BR9EVX)
947020019300
|
24,76 € | 10 | Add |
| 13 |
PLUG, SPARK(BR9EVX)
947020019300
|
24,76 € | 10 | Add |
| 14 |
MAINTENANCE PART
1C31131D0100
|
297,47 € | 1 | Add |
| 15 |
MAINTENANCE PART
1C31132D0100
|
297,47 € | 1 | Add |
| 16 |
BOLT, SOCKET
913170501200
|
1,49 € | 1 | Add |
| 17 |
SHAFT 1
5HD1131V0000
|
37,42 € | 1 | Add |
| 18 |
LEVER, LINK
4SS118320000
|
84,45 € | 1 | Add |
| 19 |
BOLT, SOCKET
913170401000
|
0,71 € | 1 | Add |
| 20 |
HOLDER
5UN113950000
|
61,92 € | 1 | Add |
| 21 |
OIL SEAL (8X12X3-371)
931040804000
|
9,07 € | 1 | Add |
| 22 |
COVER
4SS1131M0100
|
84,22 € | 1 | Add |
| 23 |
PIPE, BREATHER 1
4JY111660000
|
13,44 € | 1 | Add |
| 24 |
CLIP(MG5)
904671411700
|
1,33 € | 1 | Add |
| 25 |
GASKET
1C3113540000
|
4,97 € | 1 | Add |
| 26 |
SCREW, BIND (8H4)
989020501600
|
0,62 € | 1 | Add |
