Yamaha OFF-ROAD YZ250 2011

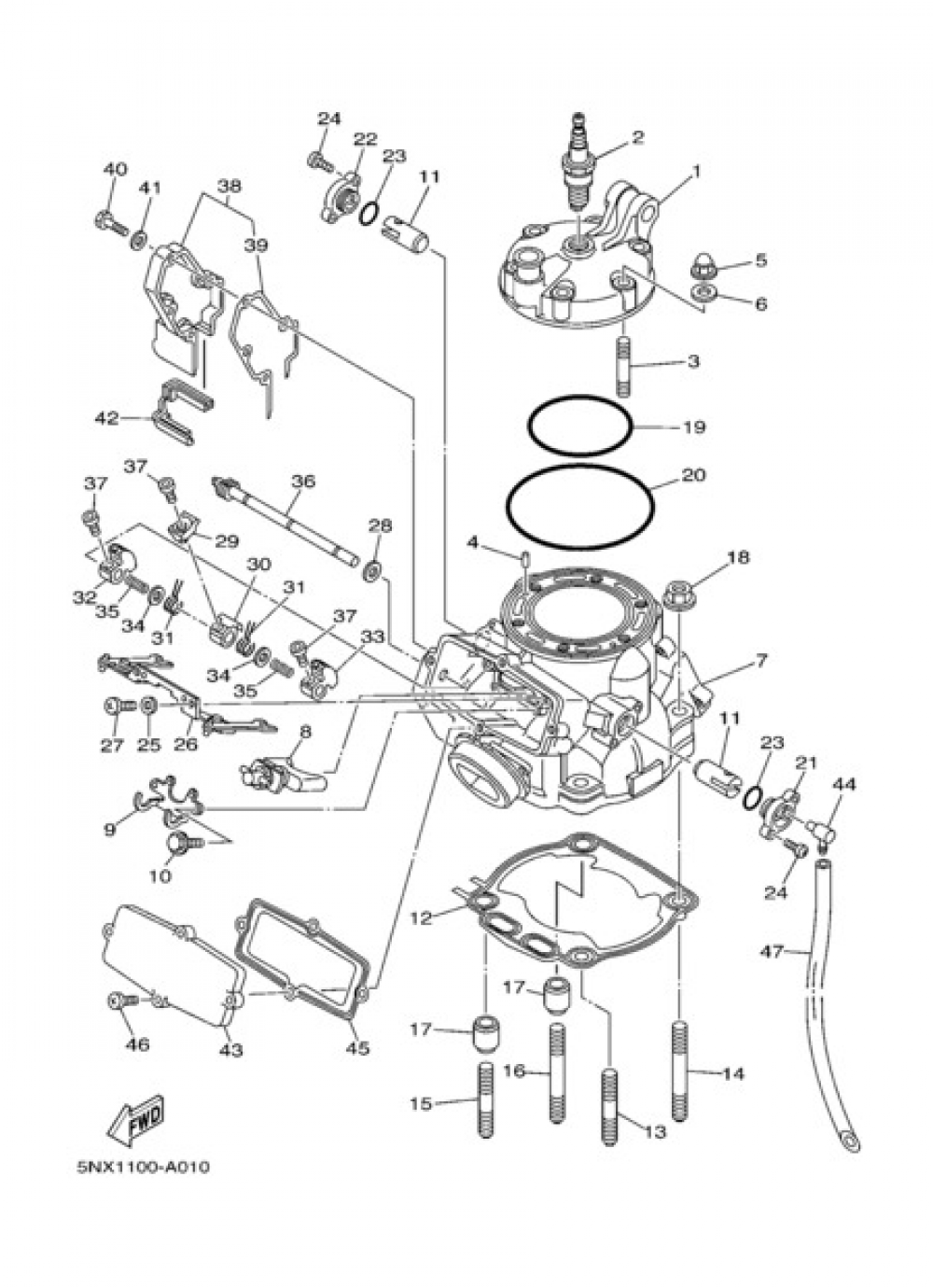

Add model to garageCYLINDER HEAD Yamaha YZ250 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CULATA CILINDRO 1
5MW111110200
|
378,13 € | 1 | Add |
| 2 |
PLUG, SPARK (BR8EG)
947020032600
|
13,11 € | 10 | Add |
| 2 |
PLUG, SPARK (BR8EG)
947020032600
|
13,11 € | 10 | Add |
| 3 |
BOLT, STUD
901160802700
|
2,48 € | 1 | Add |
| 4 |
PIN, DOWEL (278)
936040807100
|
2,10 € | 5 | Add |
| 5 |
NUT, CROWN
901760800500
|
1,88 € | 1 | Add |
| 6 |
WASHER, PLATE
90201080L800
|
4,21 € | 1 | Add |
| 7 |
CILINDRO 1
5UP113112100
|
747,30 € | 1 | Add |
| 8 |
VALVE ASSY
5XF1131D0000
|
288,34 € | 1 | Add |
| 9 |
HOLDER 3
5CU1131U1000
|
23,38 € | 1 | Add |
| 10 |
BOLT
901090500200
|
1,61 € | 1 | Add |
| 11 |
VALVE 2
5CU1132A0000
|
75,53 € | 1 | Add |
| 12 |
GASKET, CYLINDER
5UP113510000
|
23,19 € | 1 | Add |
| 13 |
BOLT, STUD
901161003400
|
3,43 € | 1 | Add |
| 14 |
BOLT, STUD
956121066000
|
8,30 € | 1 | Add |
| 15 |
BOLT, STUD
901161003400
|
3,43 € | 1 | Add |
| 16 |
BOLT, STUD
956121066000
|
8,30 € | 1 | Add |
| 17 |
PIN, DOWEL(4JT)
995901401600
|
3,38 € | 1 | Add |
| 18 |
NUT
9017910M3500
|
2,39 € | 1 | Add |
| 19 |
O-RING (1J7)
932107431600
|
5,97 € | 1 | Add |
| 20 |
O-RING(55X)
932110270300
|
9,55 € | 1 | Add |
| 21 |
HOLDER 1
5CU1131E0100
|
41,14 € | 1 | Add |
| 22 |
HOLDER 4
5CU1131P0000
|
44,72 € | 1 | Add |
| 23 |
O-RING (32N)
932101563900
|
1,37 € | 5 | Add |
| 24 |
SCREW,PAN HEAD (646)
985800501200
|
0,90 € | 10 | Add |
| 25 |
WASHER, PLATE
902010502100
|
0,60 € | 1 | Add |
| 26 |
LINK ASSY
5CU118300000
|
156,34 € | 1 | Add |
