Yamaha OFF-ROAD YZ426F 2001

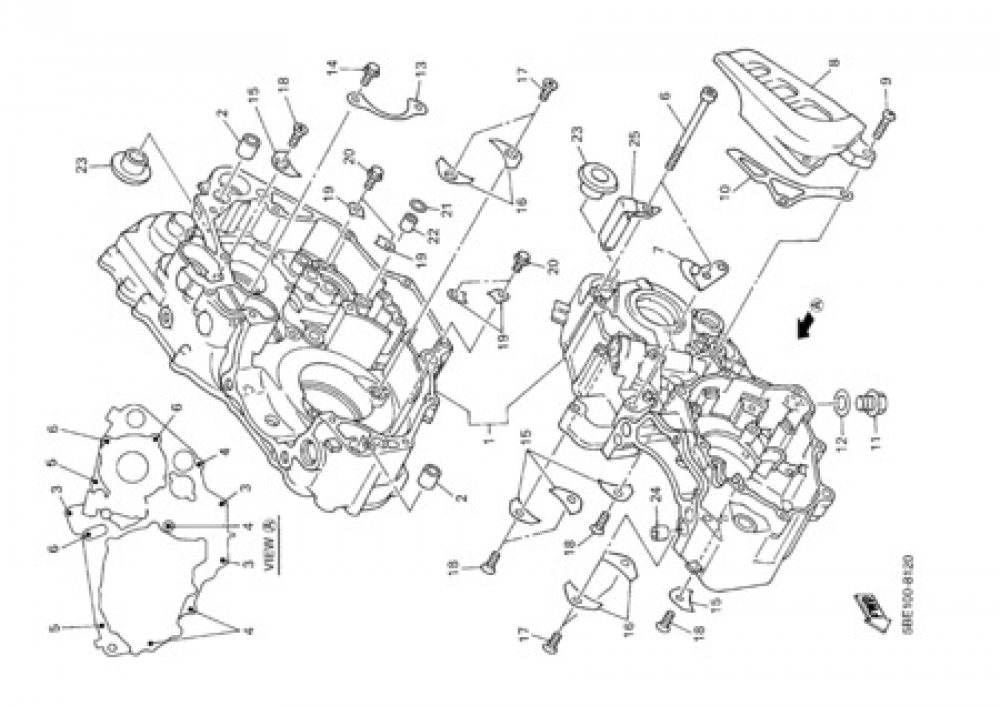

Add model to garageCRANKCASE Yamaha YZ426F 2001
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKCASE ASSY
5BE1510003YX
|
Obsolete | 1 | Not available |
| 2 |
PIN, DOWEL
995301401600
|
4,51 € | 1 | Add |
| 3 |
BOLT,SOCKET
913170604000
|
0,52 € | 5 | Add |
| 4 |
BOLT,SOCKET
913170605000
|
2,88 € | 1 | Add |
| 5 |
BOLT,SOCKET
913170606000
|
2,88 € | 1 | Add |
| 6 |
BOLT, SOCKET
913170607500
|
4,51 € | 1 | Add |
| 7 |
HOLDER, CLUTCH CABLE
5JG154410100
|
Obsolete | 1 | Not available |
| 8 |
COVER, CRANKCASE 2
5BE154212000
|
46,12 € | 1 | Add |
| 9 |
SCREW, PAN HEAD (76T)
985170602500
|
0,52 € | 1 | Add |
| 10 |
GUIDE, CHAIN
5BE174661000
|
26,39 € | 1 | Add |
| 11 |
PLUG, STRAIGHT SCREW
903401200600
|
1,66 € | 1 | Add |
| 12 |
GASKET(3FD)
904301221300
|
3,84 € | 1 | Add |
| 13 |
PLATE, COVER
4L0174710000
|
11,56 € | 1 | Add |
| 14 |
BOLT, FLANGE(4MY)
950270601200
|
0,22 € | 10 | Add |
| 15 |
PLATE, BEARING COVER
4JT153810100
|
14,65 € | 1 | Add |
| 16 |
PLATE, BEARING COVER
5BE153830100
|
9,73 € | 1 | Add |
| 17 |
SCREW, FLATHEAD (2H7)
901490612600
|
2,88 € | 1 | Add |
| 18 |
SCREW, COUNTERSUNK
901510605200
|
1,08 € | 1 | Add |
| 19 |
PLATE, STOPPER 2
5DH185620000
|
6,71 € | 1 | Add |
| 20 |
BOLT, FLANGE(4MY)
950270601200
|
0,22 € | 10 | Add |
| 21 |
O-RING (371)
932101019700
|
2,33 € | 1 | Add |
| 22 |
P1N, DOWEL
995301011400
|
1,60 € | 5 | Add |
| 23 |
COLLAR
903871712Y00
|
Obsolete | 1 | Not available |
| 24 |
PIN, DOWEL(2VG)
995301011600
|
1,42 € | 1 | Add |
| 25 |
CLAMP(4NX)
904611013600
|
21,56 € | 1 | Add |
