Yamaha OFF-ROAD YZ450F 2009

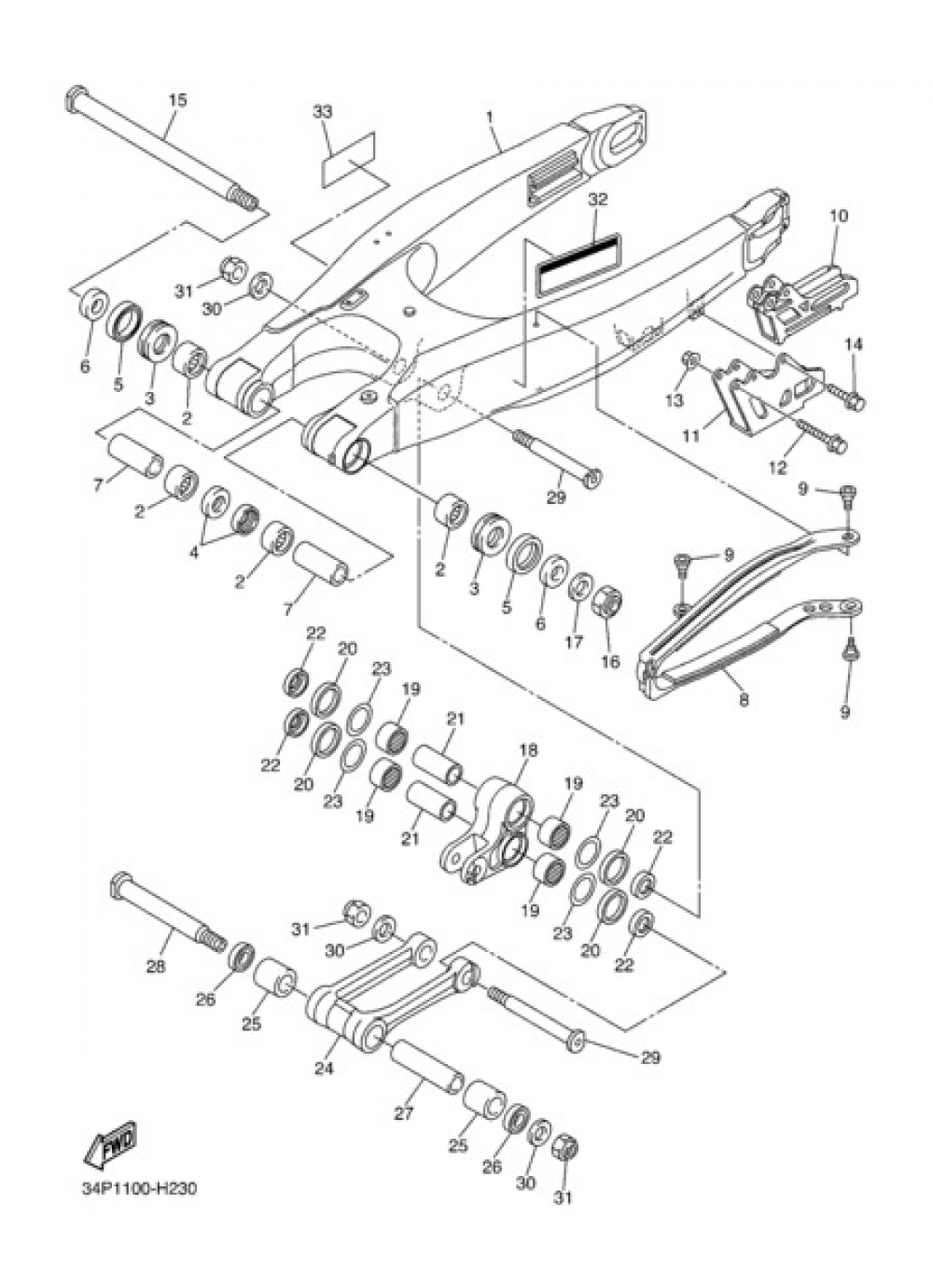

Add model to garageREAR ARM Yamaha YZ450F 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
REAR ARM COMP.
34P221100000
|
Obsolete | 1 | Not available |
| 2 |
BEARING, CYLINDRICAL(2VM)
933172226200
|
35,60 € | 1 | Add |
| 3 |
BEARING
933422221700
|
51,04 € | 1 | Add |
| 4 |
OIL SEAL
931062200200
|
9,96 € | 1 | Add |
| 5 |
OIL SEAL (36F)
931092804300
|
7,29 € | 1 | Add |
| 6 |
COLLAR
903871801200
|
15,78 € | 1 | Add |
| 7 |
COLLAR
903871800400
|
18,40 € | 1 | Add |
| 8 |
SEAL, GUARD
34P221510100
|
66,78 € | 1 | Add |
| 9 |
SCREW, 1
1C3229699000
|
2,12 € | 1 | Add |
| 10 |
SUPPORT, CHAIN
2S2221997000
|
58,39 € | 1 | Add |
| 11 |
COVER, THRUST 1
2S2221287000
|
81,21 € | 1 | Add |
| 12 |
BOLT, FLANGE
901050610400
|
1,12 € | 1 | Add |
| 13 |
NUT
901790602800
|
1,60 € | 1 | Add |
| 14 |
BOLT, FLANGE
901050610500
|
0,46 € | 1 | Add |
| 15 |
SHAFT, PIVOT
1C3221411000
|
65,25 € | 1 | Add |
| 16 |
NUT, SELF-LOCKING
901851600200
|
12,10 € | 1 | Add |
| 17 |
WASHER, PLATE
902011601800
|
3,60 € | 1 | Add |
| 18 |
ARM, RELAY
17D2217A0000
|
256,23 € | 1 | Add |
| 19 |
BEARING
933153216600
|
25,88 € | 1 | Add |
| 20 |
OIL SEAL
931092500100
|
4,14 € | 1 | Add |
| 21 |
COLLAR
903871602600
|
21,18 € | 1 | Add |
| 22 |
WASHER
902091601100
|
7,61 € | 1 | Add |
| 23 |
WASHER, PLATE
902012101400
|
3,18 € | 1 | Add |
| 24 |
ROD, CONNECTING 1
17D2217F0000
|
Obsolete | 1 | Not available |
| 25 |
BEARING
933153216600
|
25,88 € | 1 | Add |
| 26 |
OIL SEAL
931092100100
|
7,64 € | 1 | Add |
| 27 |
COLLAR
903871401600
|
26,50 € | 1 | Add |
