Yamaha OFF-ROAD YZ85F 2015

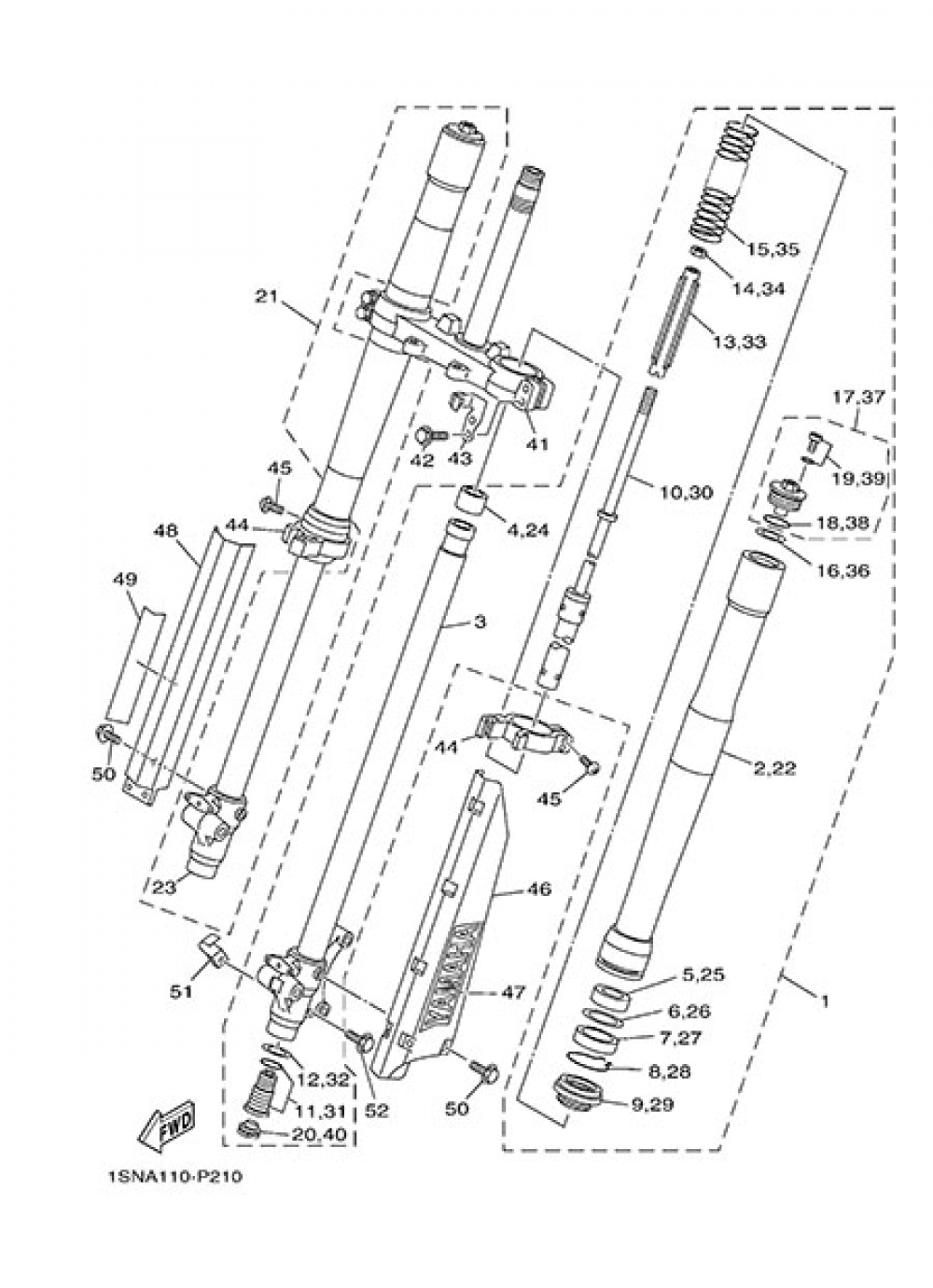

Add model to garageFRONT FORK Yamaha YZ85F 2015
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
1 |
FRONT FORK ASSY (L.H)
5SH231021000
|
650,52 € | 1 | Add |
2 |
TUBE, OUTER
5PA231361000
|
660,76 € | 1 | Add |
3 |
INNER TUBE COMP.2
5PA231200000
|
175,24 € | 1 | Add |
4 |
PISTON, FRONT FORK
5PA231710000
|
27,32 € | 1 | Add |
5 |
METAL, SLIDE 1
5PA231250000
|
15,70 € | 1 | Add |
6 |
WASHER, SPRING UPPER
5K5231490000
|
6,63 € | 1 | Add |
7 |
OIL SEAL
4ES231450000
|
15,23 € | 1 | Add |
8 |
RING, SNAP
4A1231560000
|
4,54 € | 1 | Add |
9 |
SEAL, DUST
4ES231440000
|
25,19 € | 1 | Add |
10 |
CYLINDER COMP., FRONT FORK
5PA231700000
|
472,11 € | 1 | Add |
11 |
VALVE COMP.
5SH2316A0000
|
262,19 € | 1 | Add |
11 |
VALVE COMP.
5PA2316A0000
|
261,71 € | 1 | Add |
12 |
GASKET
2HH23158L000
|
5,31 € | 1 | Add |
13 |
SEAT, SPRING UPPER
4ES231420000
|
37,25 € | 1 | Add |
14 |
NUT
3XJ23357L000
|
0,71 € | 1 | Add |
15 |
SPRING, FRONT FORK
4ES231414000
|
114,43 € | 1 | Add |
15 |
SPRING, FRONT FORK
4ES231416000
|
114,43 € | 1 | Add |
16 |
WASHER, SPRING UPPER
5PA231490000
|
1,94 € | 1 | Add |
17 |
BOLT, CAP
4ES231111000
|
135,38 € | 1 | Add |
18 |
ANILLO O
4V423188L100
|
5,26 € | 1 | Add |
19 |
B0LT, SPECIAL
3JD233940000
|
9,22 € | 1 | Add |
20 |
PLUG
3JD2312GL000
|
7,01 € | 1 | Add |
21 |
FRONT FORK ASSY (R.H)
5SH231031000
|
650,52 € | 1 | Add |
22 |
TUBE, OUTER
5PA231361000
|
660,76 € | 1 | Add |
23 |
INNER TUBE COMP.1
5PA231100000
|
175,24 € | 1 | Add |
