Yamaha OFF-ROAD YZ85LW 2013

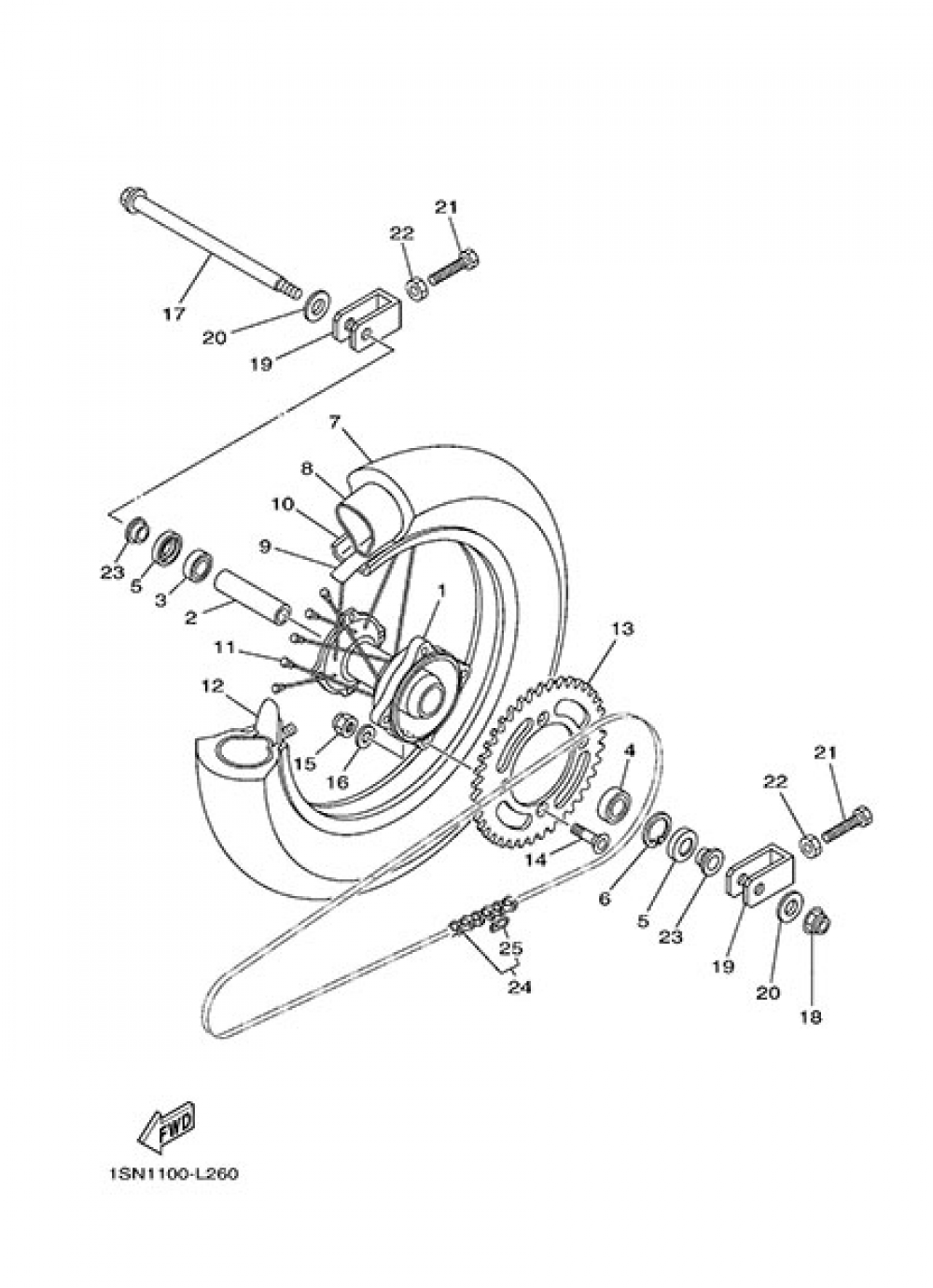

Add model to garageREAR WHEEL Yamaha YZ85LW 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HUB, REAR
4ES253110000
|
154,04 € | 1 | Add |
| 2 |
COLLAR, WHEEL
4ES253830000
|
22,34 € | 1 | Add |
| 3 |
BRG,R-B 6002RS 32MM 30G KY
933060020100
|
45,46 € | 1 | Add |
| 4 |
BEARING(3DL)
933062022600
|
47,21 € | 1 | Add |
| 5 |
OIL SEAL (20X35X7-136)
931022000900
|
7,36 € | 1 | Add |
| 6 |
CIRCLIP(47Y)
990093550000
|
5,67 € | 1 | Add |
| 7 |
TIRE (90/100-16 52M MX51)
941091602000
|
Obsolete | 1 | Not available |
| 8 |
TUBE (80-90/100-14 TR4)(4ES)
942081428500
|
34,11 € | 1 | Add |
| 8 |
TUBE (90/100-16 TR-4)(4LB)
942091629100
|
38,56 € | 1 | Add |
| 9 |
BAND, RIM
943301605800
|
8,44 € | 1 | Add |
| 9 |
BAND, RIM (1K8)
943271407600
|
10,02 € | 1 | Add |
| 10 |
RIM (1.60-14)(4ES)
944161452900
|
245,50 € | 1 | Add |
| 10 |
RIM (1.85-16)(4LB)
944181652200
|
279,19 € | 1 | Add |
| 11 |
SPOKE SET, REAR
4ES253042000
|
92,99 € | 1 | Add |
| 11 |
SPOKE SET, REAR
4LB253040000
|
92,99 € | 1 | Add |
| 12 |
SPACER, BEAD
5X2253940000
|
62,61 € | 1 | Add |
| 12 |
SPACER, BEAD
1T2253940000
|
51,46 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (51T)
5PA254510000
|
84,82 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (47T)
4ES254471000
|
126,49 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (46T)
5PA254460000
|
96,57 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (48T)
5PA254480000
|
130,16 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (53T)
5PA254530000
|
84,82 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (49T)
5PA254490000
|
125,84 € | 1 | Add |
| 13 |
SPROCKET, DRIVEN (52T)
5PA254520000
|
84,82 € | 1 | Add |
