Yamaha SPORT TOURING FJR1300A 2005

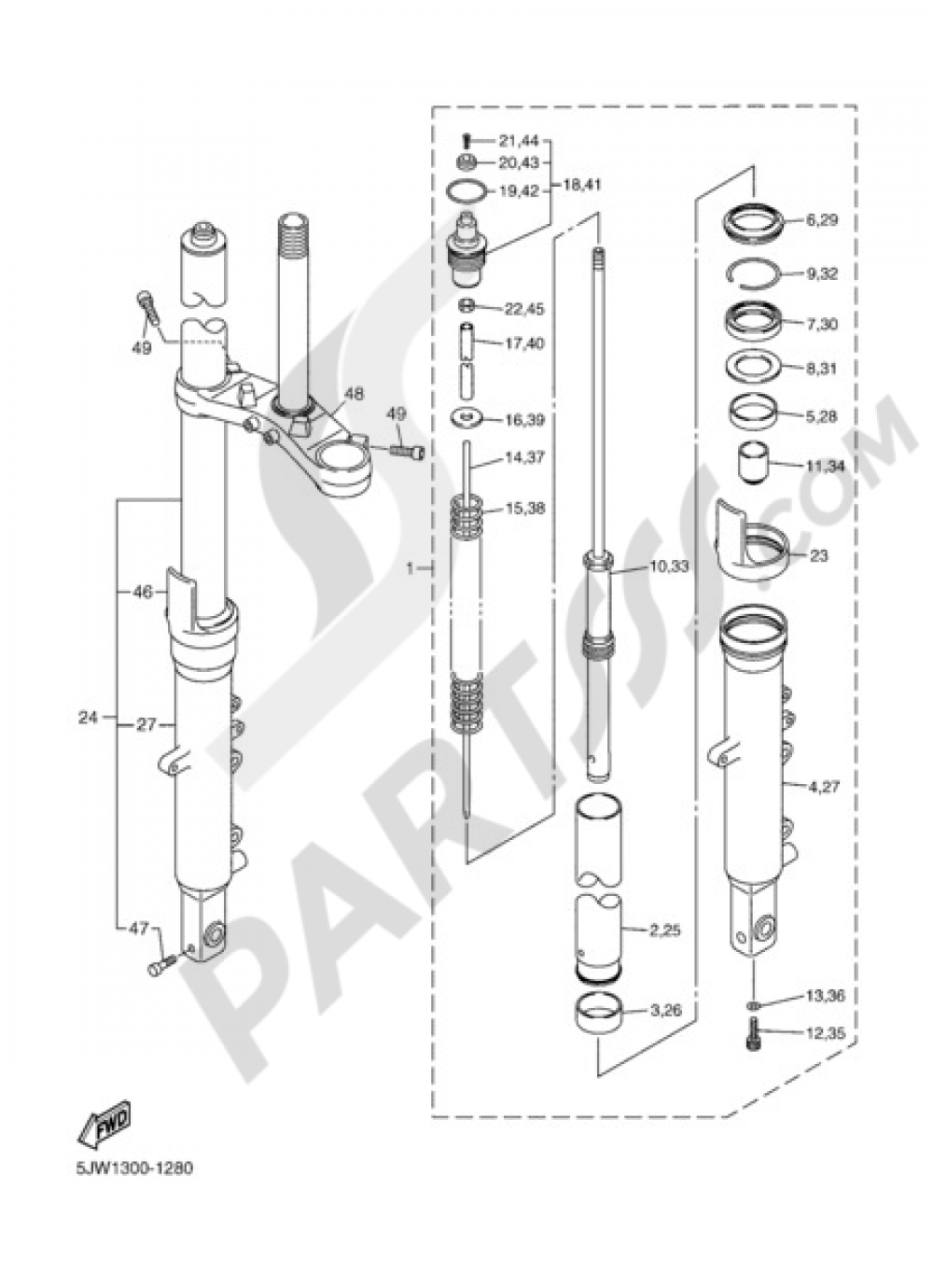

Add model to garageFRONT FORK Yamaha FJR1300A 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
5VS231020000
|
Obsolete | 1 | Not available |
| 2 |
INNER TUBE COMP.1
5JW231100000
|
433,75 € | 1 | Add |
| 3 |
METAL, SLIDE 2
4SV231351000
|
21,99 € | 1 | Add |
| 4 |
OUTER TUBE COMP. (L.H)
5VS231060000
|
Obsolete | 1 | Not available |
| 5 |
METAL, SLIDE 1
4SV231251000
|
22,34 € | 1 | Add |
| 6 |
SEAL, DUST
4SV231440000
|
21,57 € | 1 | Add |
| 7 |
OIL SEAL
4SV231450100
|
19,87 € | 1 | Add |
| 8 |
SEAT 1
4SV231150000
|
7,89 € | 1 | Add |
| 9 |
CLIP, OIL SEAL
4SV231560000
|
2,64 € | 1 | Add |
| 10 |
CYLINDER COMP., FRONT FORK
5JW231700000
|
Obsolete | 1 | Not available |
| 11 |
SPINDLE, TAPER
5LV231730000
|
50,99 € | 1 | Add |
| 12 |
BOLT, HEXAGON SOCKET HEAD
9011010N5200
|
8,44 € | 1 | Add |
| 13 |
GASKET (5R6)
904301017100
|
4,56 € | 5 | Add |
| 14 |
PLUNGER
5JW2318Y0000
|
6,24 € | 1 | Add |
| 15 |
SPRING, FRONT FORK
5VS231410000
|
Obsolete | 1 | Not available |
| 16 |
WASHER, PLATE (856)
902011032100
|
10,09 € | 1 | Add |
| 17 |
SPACER
5JW231180000
|
9,07 € | 1 | Add |
| 18 |
BOLT, CAP
5JW231110100
|
277,97 € | 1 | Add |
| 19 |
O-RING(4SV)
9321040N5000
|
4,28 € | 1 | Add |
| 20 |
KNOB (TEN)
5JW2319W0000
|
9,20 € | 1 | Add |
| 21 |
SCREW, OVAL HEAD
986800300800
|
2,76 € | 1 | Add |
| 22 |
NUT(6TD)
953371060000
|
6,37 € | 1 | Add |
| 23 |
COVER
4SV2331G0000
|
20,34 € | 1 | Add |
| 24 |
FRONT FORK ASSY (R.H)
5VS231030000
|
962,16 € | 1 | Add |
| 25 |
INNER TUBE COMP.1
5JW231100000
|
433,75 € | 1 | Add |
| 26 |
METAL, SLIDE 2
4SV231351000
|
21,99 € | 1 | Add |
| 27 |
OUTER TUBE COMP. (R.H)
5VS231070000
|
Obsolete | 1 | Not available |
