Yamaha SPORT TOURING TDM 900 ABS 2007

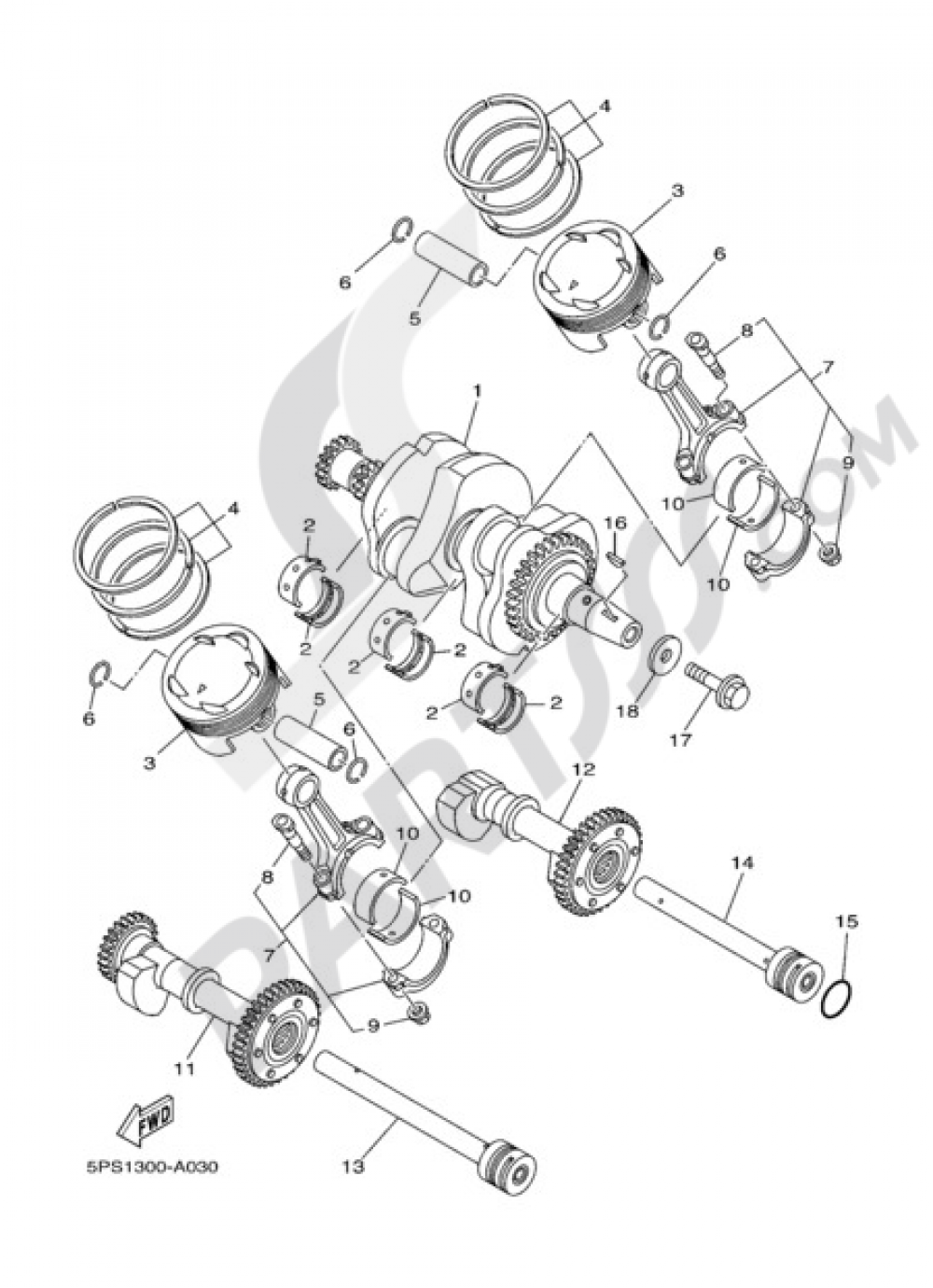

Add model to garageCRANKSHAFT & PISTON Yamaha TDM 900 ABS 2007
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT ASSY
5PS114000100
|
1.669,23 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114166000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114165000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114164000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114163000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114162000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114161000
|
20,53 € | 1 | Add |
| 2 |
PLANE BEARING, CRANKSHAFT 1
3LD114160000
|
20,53 € | 1 | Add |
| 3 |
PISTON (STD)
5PS116310000
|
141,22 € | 1 | Add |
| 4 |
PISTON RING SET (STD)
5BE116030000
|
78,38 € | 1 | Add |
| 5 |
PIN, PISTON
5PS116330000
|
46,86 € | 1 | Add |
| 6 |
CIRCLIP
934502214600
|
0,41 € | 1 | Add |
| 7 |
CONNECTING ROD ASSY
5PS116500000
|
308,21 € | 1 | Add |
| 8 |
BOLT, CONNECTING ROD
3LD116540000
|
10,76 € | 1 | Add |
| 9 |
NUT (11H)
901790937900
|
5,65 € | 1 | Add |
| 10 |
PLANE BEARING, CONNECTING ROD
3LD116560000
|
20,58 € | 1 | Add |
| 10 |
PLANE BEARING, CONNECTING ROD
3LD116561000
|
20,58 € | 1 | Add |
| 10 |
PLANE BEARING, CONNECTING ROD
3LD116562000
|
20,58 € | 1 | Add |
| 10 |
PLANE BEARING, CONNECTING ROD
3LD116563000
|
20,58 € | 1 | Add |
| 11 |
BALANCER ASSY
4NX115000200
|
623,50 € | 1 | Add |
| 12 |
BALANCER ASSY, 2
4NX115100100
|
Obsolete | 1 | Not available |
| 13 |
SHAFT, BALANCER 1
3LD115830000
|
231,33 € | 1 | Add |
| 14 |
SHAFT, BALANCER 2
3LD115840000
|
217,70 € | 1 | Add |
| 15 |
O-RING(36Y)
932103066000
|
3,44 € | 1 | Add |
| 16 |
KEY, WOODRUFF (26H)
902800502900
|
10,76 € | 1 | Add |
| 17 |
BOLT, WASHER BASED(3LD)
901051258400
|
14,03 € | 1 | Add |
| 18 |
WASHER (838)
902011219100
|
9,39 € | 1 | Add |
