Yamaha SPORT TOURING TDM 900 ABS 2009

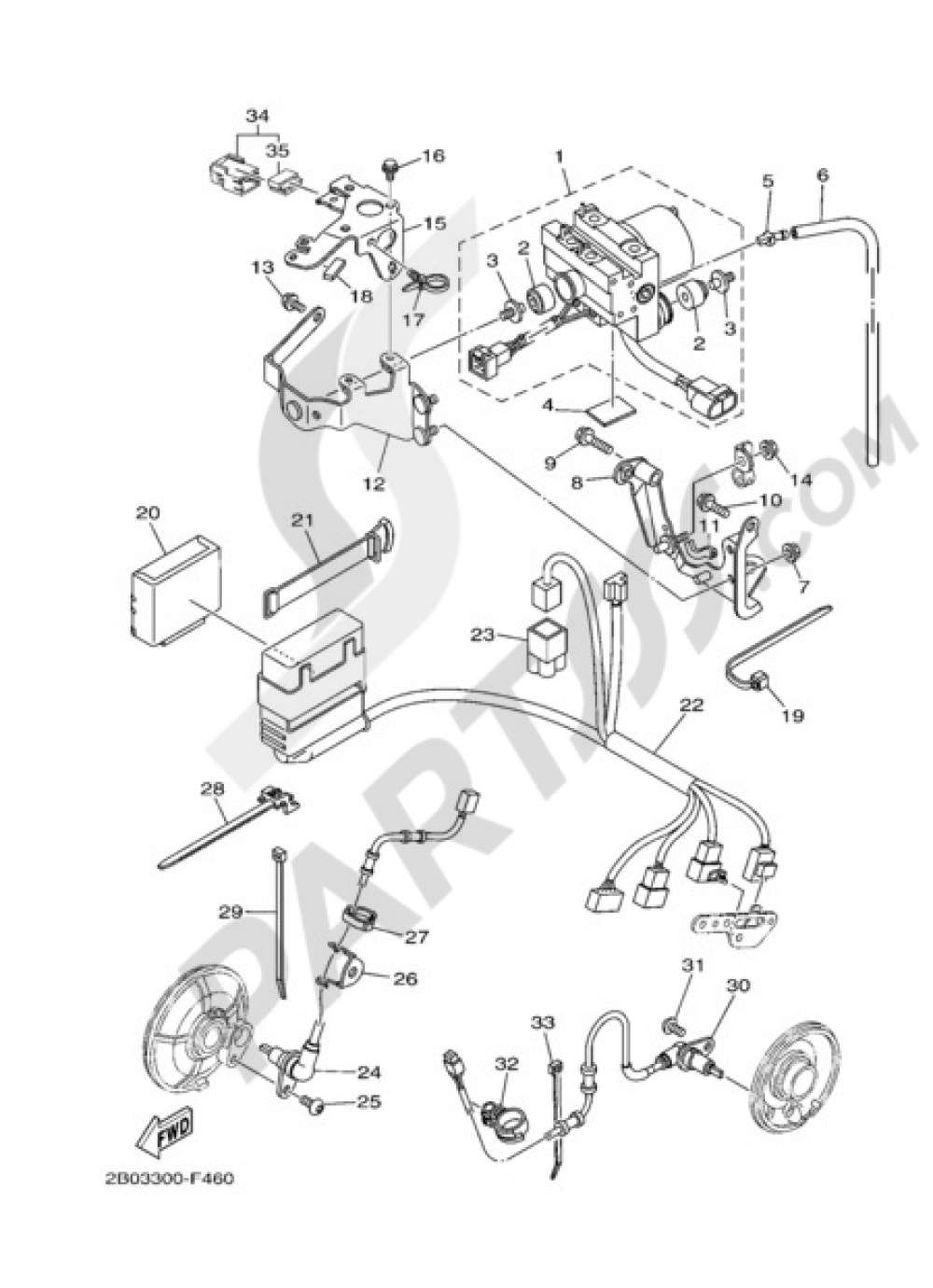

Add model to garageELECTRIC EQUIPMENT 3 Yamaha TDM 900 ABS 2009
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HYDRAULIC UNIT ASSY
2B0859300900
|
2.313,83 € | 1 | Add |
| 2 |
DAMPER
5CG851130000
|
9,27 € | 1 | Add |
| 3 |
BOLT
5CG2535E0000
|
5,78 € | 1 | Add |
| 4 |
DAMPER
2AL845530000
|
7,51 € | 1 | Add |
| 5 |
PLUG, DRAIN
5CG241960000
|
67,11 € | 1 | Add |
| 6 |
HOSE (L450)
904451014400
|
5,91 € | 1 | Add |
| 7 |
NUT, SELF-LOCKING
901850816900
|
3,82 € | 1 | Add |
| 8 |
BRACKET 1
2B02175T0000
|
162,95 € | 1 | Add |
| 9 |
BOLT, SMALL FLANGE
950270803000
|
2,40 € | 1 | Add |
| 10 |
BOLT, FLANGE(4MY)
950270802500
|
1,60 € | 1 | Add |
| 11 |
MOLD, FUEL TANK
1HX241880100
|
11,15 € | 1 | Add |
| 12 |
BRACKET 2
2B02175U0000
|
Obsolete | 1 | Not available |
| 13 |
BOLT, SMALL FLANGE
950270801200
|
1,60 € | 1 | Add |
| 14 |
NUT, SELF-LOCKING
901850816900
|
3,82 € | 1 | Add |
| 15 |
LINING, SIDE COVER 1
2B02117J1000
|
Obsolete | 1 | Not available |
| 16 |
BOLT, FLANGE(4MY)
950270601000
|
0,22 € | 1 | Add |
| 17 |
CLAMP
904642000500
|
1,77 € | 1 | Add |
| 18 |
PROTECTOR
3MA274910000
|
7,52 € | 1 | Add |
| 19 |
CLAMP(4FM)
904641519500
|
2,88 € | 1 | Add |
| 20 |
ELECTRONIC CONTROL UNIT ASSY
2B0859401100
|
1.367,25 € | 1 | Add |
| 21 |
BAND,BATTERY
7H3821310000
|
11,55 € | 1 | Add |
| 22 |
WIRE HARNESS ASSY
2B0859501000
|
272,51 € | 1 | Add |
| 23 |
CONNECTOR
3YA823780000
|
17,86 € | 1 | Add |
| 24 |
WHEEL SENSOR ASSY, FRONT
2B0859700000
|
176,29 € | 1 | Add |
| 25 |
BOLT, BUTTON
920140801600
|
1,49 € | 1 | Add |
| 26 |
HOLDER, CABLE
2B0233170000
|
27,06 € | 1 | Add |
| 27 |
CLAMP(1NL)
904651431000
|
4,97 € | 1 | Add |
