Yamaha SPORT TOURING TDM 900 2003

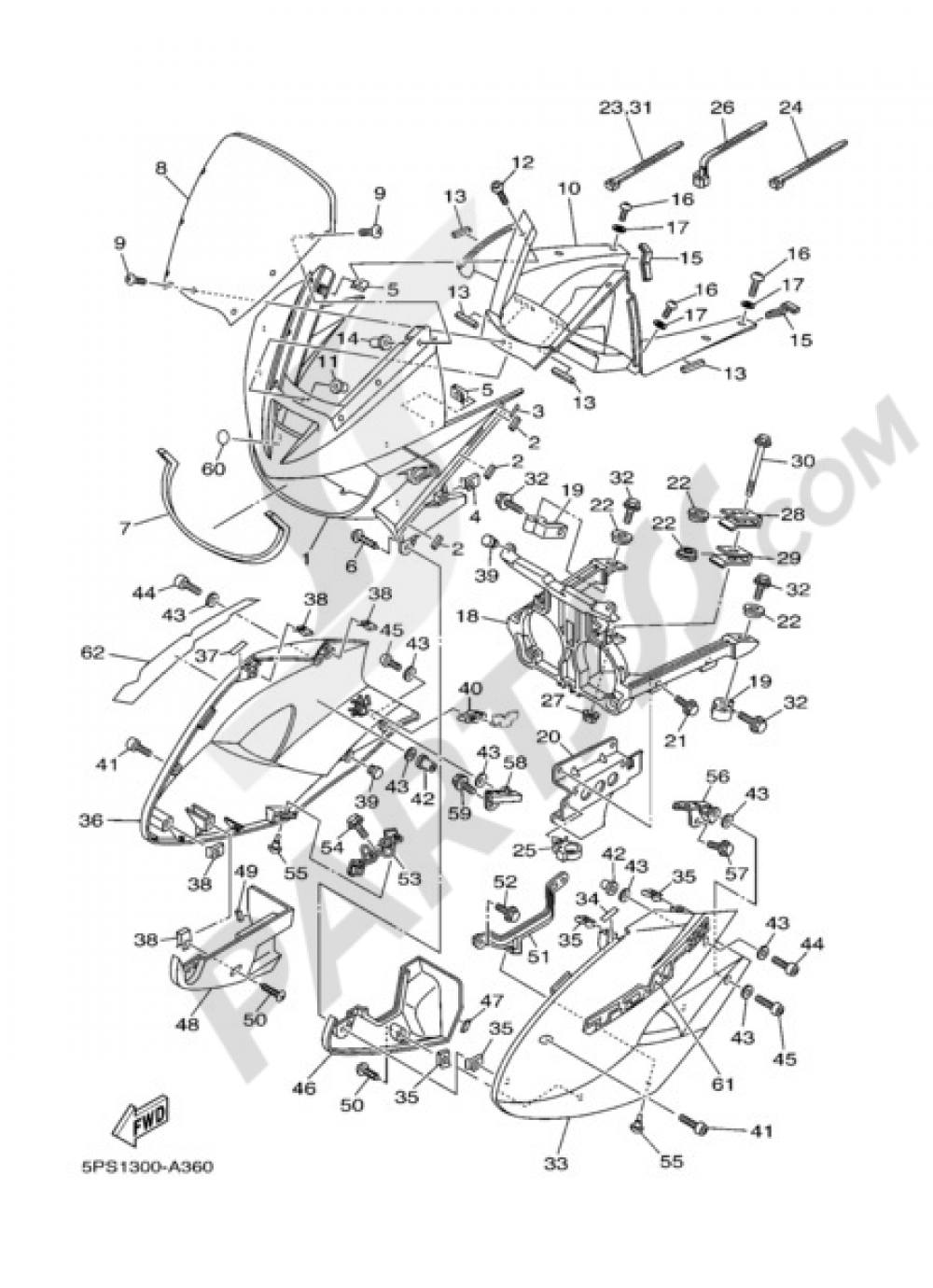

Add model to garageFAIRING 1 Yamaha TDM 900 2003
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 26 |
CLAMP(4FM)
904641519500
|
2,97 € | 1 | Add |
| 27 |
NUT(55X)
901790849100
|
2,64 € | 5 | Add |
| 28 |
PLATE 1
5PS283960000
|
12,10 € | 1 | Add |
| 29 |
PLATE 2
5PS283970000
|
13,14 € | 1 | Add |
| 30 |
BOLT, LEG SHIELD
5PS283310000
|
2,48 € | 1 | Add |
| 31 |
CLAMP
904651009800
|
0,86 € | 1 | Add |
| 32 |
BOLT, FLANGE(4LN)
958170802500
|
1,72 € | 1 | Add |
| 33 |
PANEL 1
5PS2835U01P1
|
350,61 € | 1 | Add |
| 33 |
PANEL 1
5PS2835U00P3
|
Obsolete | 1 | Not available |
| 33 |
PANEL 1
5PS2835U00P4
|
Obsolete | 1 | Not available |
| 34 |
LABEL
5PS2178A0000
|
1,46 € | 10 | Add |
| 35 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 36 |
PANEL 2
5PS2835V00P4
|
Obsolete | 1 | Not available |
| 36 |
PANEL 2
5PS2835V00P3
|
Obsolete | 1 | Not available |
| 36 |
PANEL 2
5PS2835V01P1
|
350,61 € | 1 | Add |
| 37 |
LABEL
5PS2178A0000
|
1,46 € | 10 | Add |
| 38 |
NUT, SPRING(1YT)
901830504200
|
0,62 € | 5 | Add |
| 39 |
PLUG (17J)
903381013200
|
3,18 € | 1 | Add |
| 40 |
DAMPER, SIDE COVER
15A217170000
|
3,74 € | 1 | Add |
| 41 |
TORNILLO ALLEN
901110505900
|
3,18 € | 5 | Add |
| 42 |
NUT(1KT)
901790552300
|
9,91 € | 5 | Add |
| 43 |
WASHER, PLATE(MG5)
902020522400
|
0,93 € | 1 | Add |
| 44 |
SCREW(3YF)
901490529900
|
4,83 € | 1 | Add |
| 45 |
TORNILLO ALLEN
901110505900
|
3,18 € | 5 | Add |
| 46 |
GRILL, AIR INTAKE 1
5PS2837N0100
|
64,48 € | 1 | Add |
| 47 |
DAMPER
4TX217170000
|
2,07 € | 1 | Add |
| 48 |
GRILL, AIR INTAKE 2
5PS2837R0000
|
59,83 € | 1 | Add |
