Yamaha SPORT TOURING TDM 900 2004

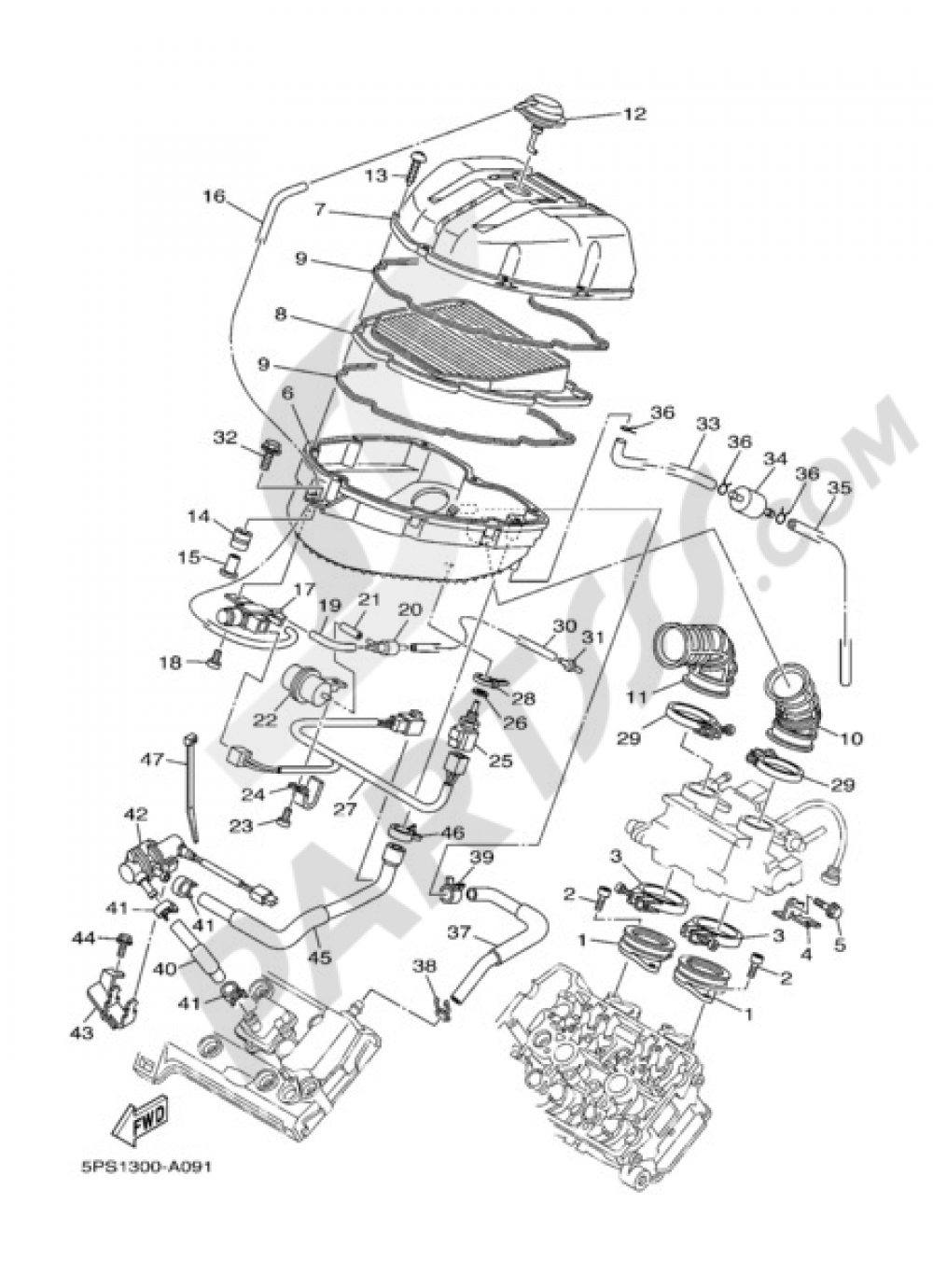

Add model to garageINTAKE Yamaha TDM 900 2004
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
JOINT, CARBURETOR 1
5PS135860000
|
133,85 € | 1 | Add |
| 2 |
BOLT,SOCKET
913170602000
|
0,38 € | 1 | Add |
| 3 |
HOSE CLAMP ASSY
904506300100
|
17,37 € | 1 | Add |
| 4 |
STAY 2
5PS144140000
|
4,99 € | 1 | Add |
| 5 |
BOLT, FLANGE(4MY)
950270601000
|
0,24 € | 1 | Add |
| 6 |
CASE, AIR CLEANER 1
5PS144110000
|
75,20 € | 1 | Add |
| 7 |
CASE, AIR CLEANER 2
5PS144210000
|
119,60 € | 1 | Add |
| 8 |
ELEMENT, AIR CLEANER
5PS144510000
|
39,61 € | 1 | Add |
| 9 |
SEAL
5PS144520000
|
6,90 € | 1 | Add |
| 10 |
JOINT, AIR CLEANER 1
5PS144530000
|
45,65 € | 1 | Add |
| 11 |
JOINT, AIR CLEANER 2
5PS144630000
|
39,36 € | 1 | Add |
| 12 |
DIAPHRAGM
5PS145450000
|
88,31 € | 1 | Add |
| 13 |
SCREW, TAPPING(4TV)
901670507800
|
0,98 € | 5 | Add |
| 14 |
GROMMET
5PS144350000
|
1,23 € | 1 | Add |
| 15 |
COLLAR
5PS142640000
|
1,63 € | 1 | Add |
| 16 |
PIPE
5PS144190000
|
17,37 € | 1 | Add |
| 17 |
VALVULA SOLENOIDE
5PS1410H0100
|
77,97 € | 1 | Add |
| 18 |
SCREW, BINDING
989070501200
|
0,65 € | 1 | Add |
| 19 |
PIPE
5PS141480000
|
4,00 € | 1 | Add |
| 20 |
VALVULA DE RETENCION
5PS145520100
|
31,79 € | 1 | Add |
| 21 |
HOSE (L28)
904450801000
|
0,60 € | 1 | Add |
| 22 |
TANK, SURGE
5PS1446E0000
|
28,92 € | 1 | Add |
| 23 |
SCREW, BINDING
989070501600
|
0,65 € | 1 | Add |
| 24 |
CLAMP 363154850100
904620500500
|
3,76 € | 1 | Add |
| 25 |
THERMO UNIT
4BH835910000
|
77,75 € | 1 | Add |
| 26 |
GASKET(2GH)
904301220200
|
2,15 € | 1 | Add |
| 27 |
EXTENSION, WIRE HARNESS
5PS823860000
|
73,94 € | 1 | Add |
