Yamaha SPORT TOURING XJR 1300 2006

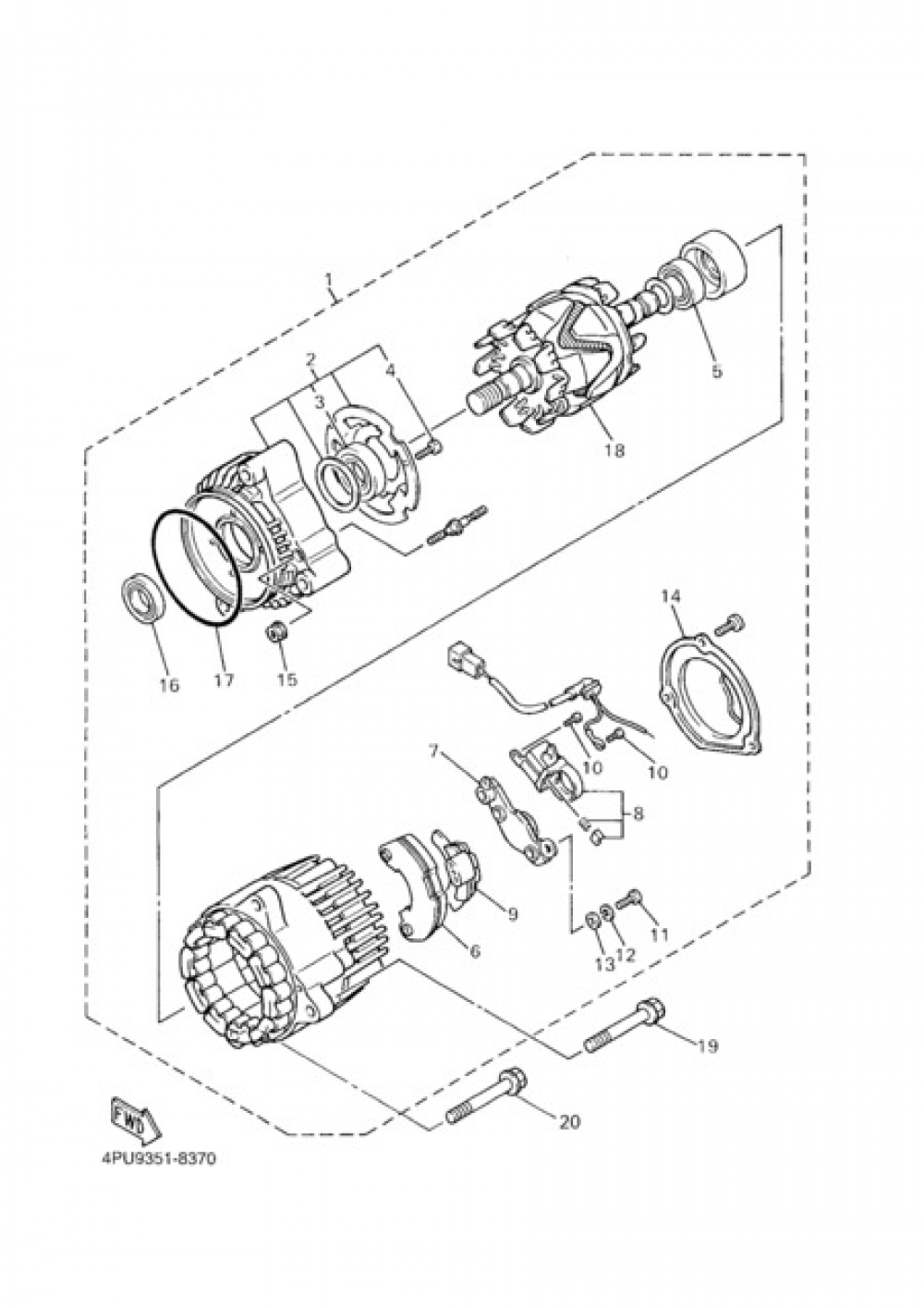

Add model to garageGENERATOR Yamaha XJR 1300 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
A.C. GENERATOR ASSY
5EA816000100
|
2.003,07 € | 1 | Add |
| 2 |
STATOR ASSY
4KG816340000
|
1.136,70 € | 1 | Add |
| 3 |
BEARING(3DL)
933062022600
|
47,21 € | 1 | Add |
| 4 |
SCREW
4BH816450000
|
3,60 € | 1 | Add |
| 5 |
BEARING
4BH816431000
|
47,26 € | 1 | Add |
| 6 |
RECTIFIER ASSY
4BH819700000
|
390,22 € | 1 | Add |
| 7 |
VOLTAGE REGULATOR ASSY
36Y819105000
|
606,78 € | 1 | Add |
| 8 |
BRUSH HOLDER ASSY
3FV816190000
|
125,35 € | 1 | Add |
| 9 |
COVER, RECTIFIER
4BH819720000
|
33,34 € | 1 | Add |
| 10 |
SCREW
3FV816450000
|
15,98 € | 1 | Add |
| 11 |
SCREW PANHEAD (669)
985800501800
|
1,46 € | 1 | Add |
| 12 |
YBS67-5 WASHER, SPRING
929900510000
|
0,62 € | 5 | Add |
| 13 |
WASHER, PLAIN (646)
929900560000
|
0,62 € | 5 | Add |
| 14 |
COVER ASSY
4KM816040000
|
136,78 € | 1 | Add |
| 15 |
NUT, FLANGE
957020550000
|
0,93 € | 1 | Add |
| 16 |
OIL SEAL
36Y816385000
|
27,34 € | 1 | Add |
| 17 |
O-RING
2KT816425000
|
12,26 € | 1 | Add |
| 18 |
ROTOR ASSY
4BH816600000
|
615,85 € | 1 | Add |
| 19 |
BOLT, FLANGE
958140806500
|
3,18 € | 1 | Add |
| 20 |
BOLT, FLANGE
958140806500
|
3,18 € | 1 | Add |
