Yamaha SUPERSPORT YZF-R1 2006

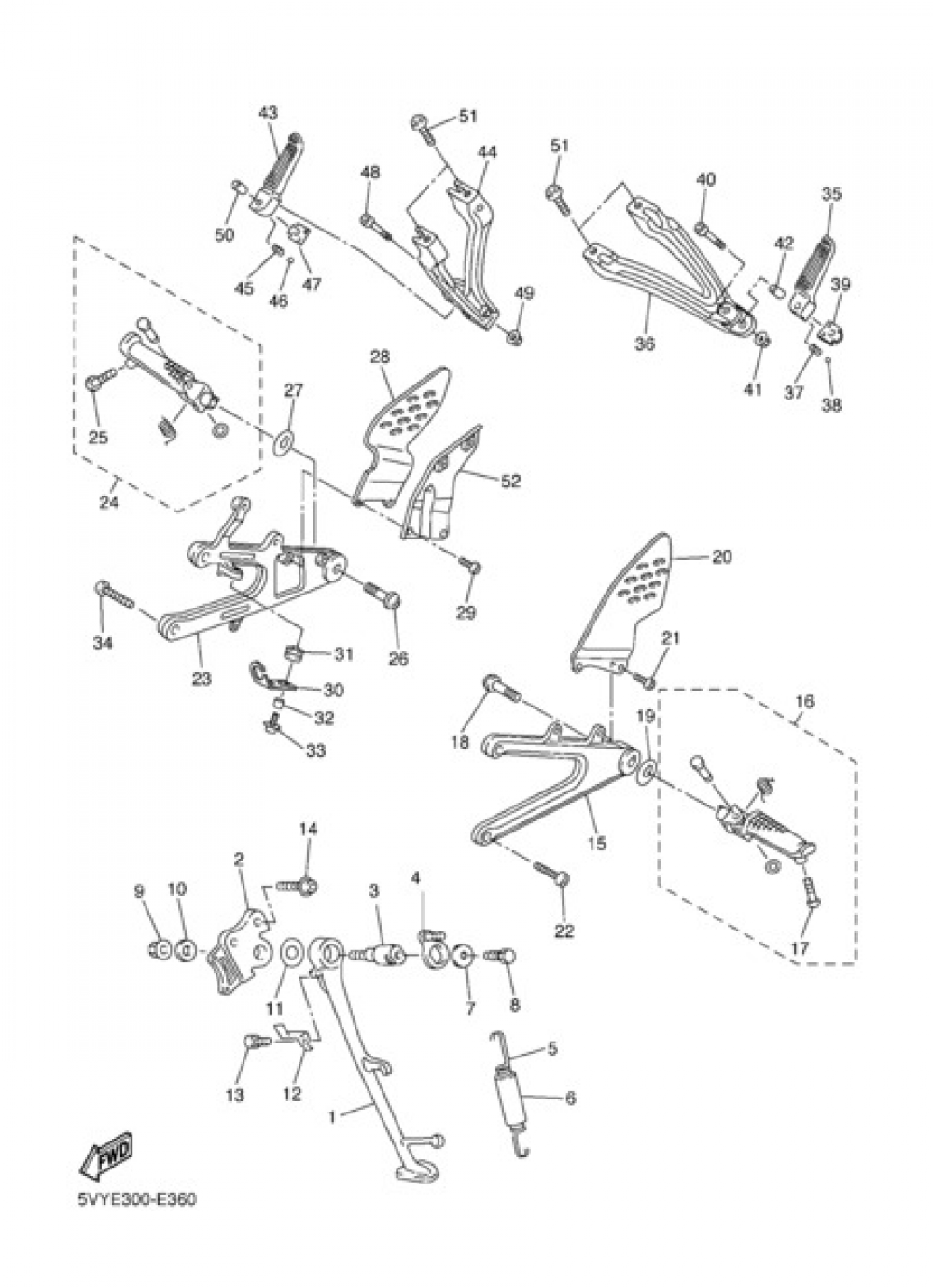

Add model to garageSTAND & FOOTREST Yamaha YZF-R1 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
PLATE 2
5VY274460000
|
Obsolete | 1 | Not available |
| 29 |
SCREW(4KB)
920170601400
|
1,37 € | 1 | Add |
| 30 |
STAY, STOP SWITCH
5VY2144G0000
|
4,41 € | 1 | Add |
| 31 |
GROMMET(4SV)
904801260700
|
6,48 € | 1 | Add |
| 32 |
COLLAR 8121444900
903870602300
|
3,25 € | 1 | Add |
| 33 |
SCREW, PAN HEAD(3TJ)
985070601600
|
0,60 € | 1 | Add |
| 34 |
BOLT
90109085G600
|
1,70 € | 1 | Add |
| 35 |
FOOTREST, REAR 1
5JJ274311000
|
33,59 € | 1 | Add |
| 36 |
MENSULA 4
5VY2741L0100
|
91,50 € | 1 | Add |
| 37 |
SPRING, COMPRESSION (22N)
905011274300
|
5,07 € | 5 | Add |
| 38 |
BALL
935010401100
|
0,39 € | 5 | Add |
| 39 |
WASHER, SPECIAL
5JJ274370100
|
6,09 € | 1 | Add |
| 40 |
BOLT, SOCKET
913140603500
|
1,70 € | 1 | Add |
| 41 |
NUT, U FLANGE
956040620000
|
1,50 € | 1 | Add |
| 42 |
COLLAR (8H9)
903870669700
|
9,55 € | 1 | Add |
| 43 |
FOOTREST, REAR 2
5JJ274411000
|
33,59 € | 1 | Add |
| 44 |
MENSULA 5
5VY2742L0100
|
91,50 € | 1 | Add |
| 45 |
SPRING, COMPRESSION (22N)
905011274300
|
5,07 € | 5 | Add |
| 46 |
BALL
935010401100
|
0,39 € | 5 | Add |
| 47 |
WASHER, SPECIAL
5JJ274370100
|
6,09 € | 1 | Add |
| 48 |
BOLT, SOCKET
913140603500
|
1,70 € | 1 | Add |
| 49 |
NUT, U FLANGE
956040620000
|
1,50 € | 1 | Add |
| 50 |
COLLAR (8H9)
903870669700
|
9,55 € | 1 | Add |
| 51 |
BOLT, BUTTON
920170802000
|
1,55 € | 1 | Add |
| 52 |
BRACKET, FOOTREST 2
5VY274250000
|
22,01 € | 1 | Add |
