Yamaha SUPERSPORT YZF-R1 2013

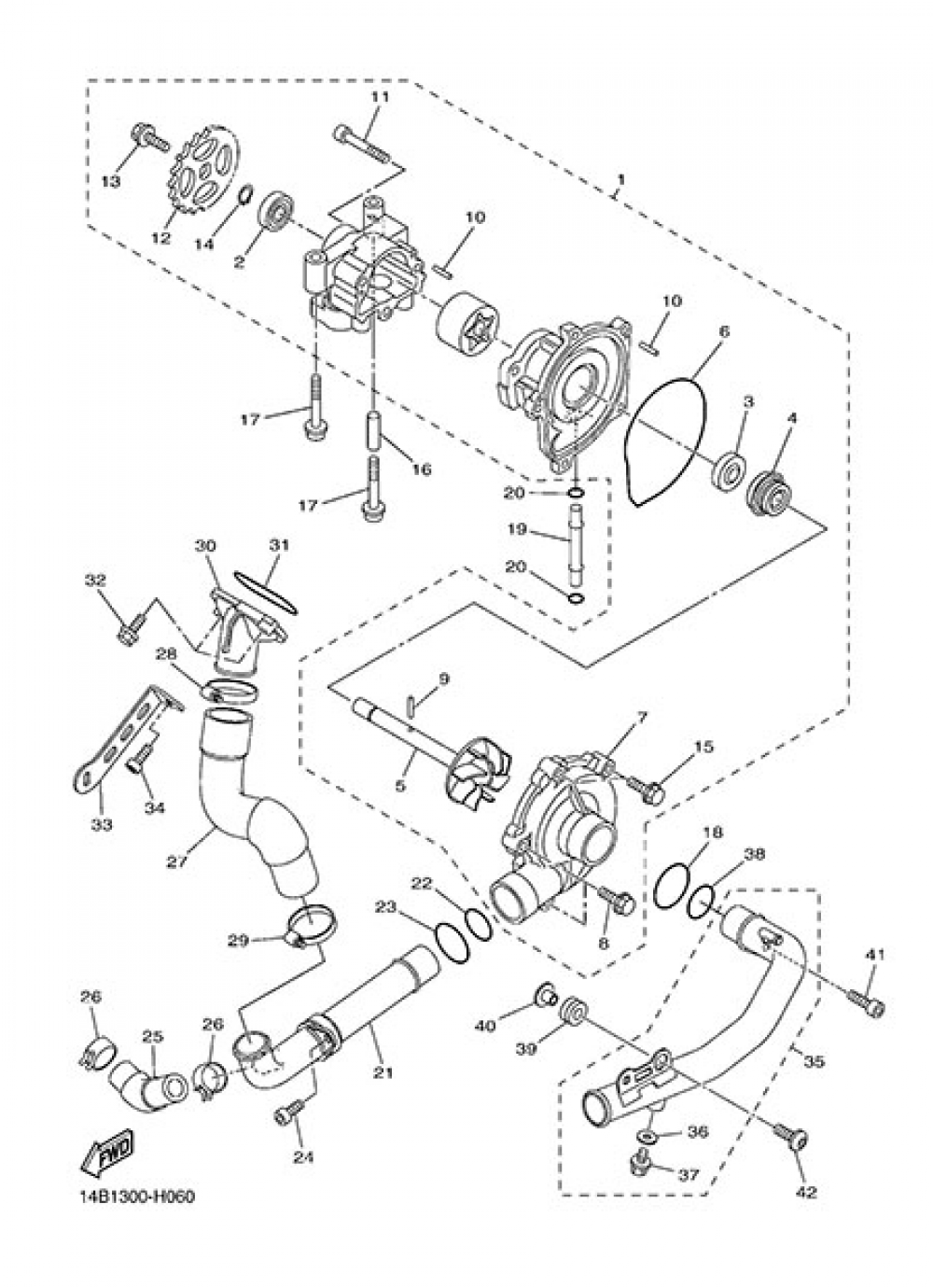

Add model to garageWATER PUMP Yamaha YZF-R1 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 28 |
HOSE CLAMP ASSY(3GM)
904503804000
|
18,19 € | 1 | Add |
| 29 |
HOSE CLAMP ASSY
904503500100
|
7,32 € | 1 | Add |
| 30 |
JOINT 1
14B124691000
|
50,92 € | 1 | Add |
| 31 |
O-RING
932104604400
|
4,10 € | 5 | Add |
| 32 |
BOLT, FLANGE(4KG)
950240602500
|
1,42 € | 1 | Add |
| 33 |
STAY 1
14B126370000
|
12,88 € | 1 | Add |
| 34 |
BOLT,SOCKET HEAD
913140601200
|
0,69 € | 1 | Add |
| 35 |
PIPE 4
14B124840000
|
119,02 € | 1 | Add |
| 36 |
GASKET 256113960000
904300601400
|
2,33 € | 1 | Add |
| 37 |
SCREW, HEXAGON
901530600200
|
0,41 € | 1 | Add |
| 38 |
O-RING
93210235A100
|
6,09 € | 1 | Add |
| 39 |
GROMMET
904801201000
|
4,29 € | 1 | Add |
| 40 |
COLLAR
903870611200
|
2,68 € | 1 | Add |
| 41 |
BOLT,SOCKET
913170601200
|
0,93 € | 1 | Add |
| 42 |
SCREW(4DN)
901490630200
|
5,97 € | 1 | Add |
