Yamaha SUPERSPORT YZF-R6 2002

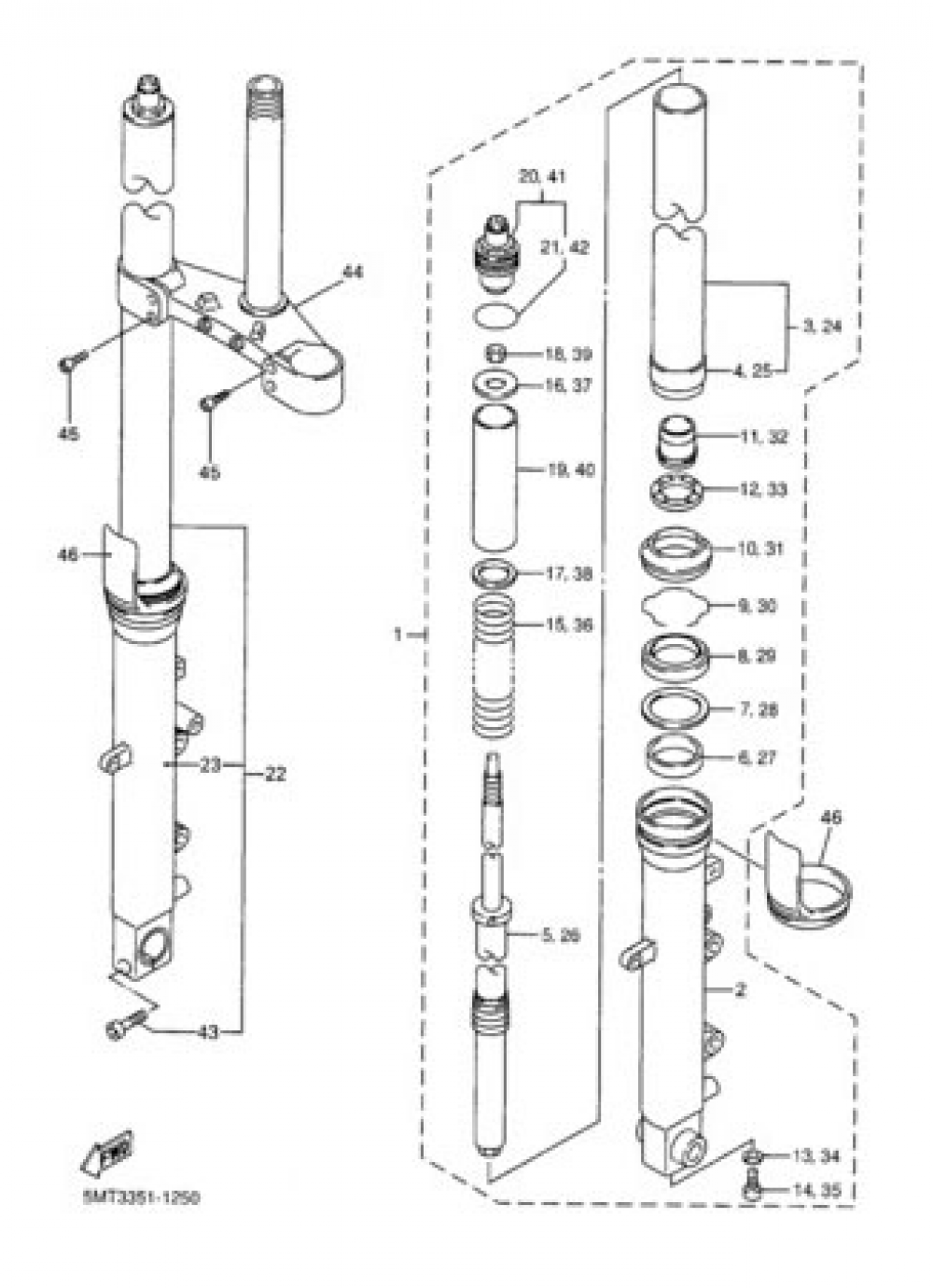

Add model to garageFRONT FORK Yamaha YZF-R6 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
5MT231020100
|
Obsolete | 1 | Not available |
| 2 |
TUBE, OUTER (LEFT)
5MT231260000
|
Obsolete | 1 | Not available |
| 3 |
INNER TUBE COMP.1
5MT231100000
|
Obsolete | 1 | Not available |
| 4 |
PISTON, FRONT FORK
5EB231710000
|
25,04 € | 1 | Add |
| 5 |
CYLINDER COMP., FRONT FORK
5MT231700000
|
Obsolete | 1 | Not available |
| 6 |
METAL, SLIDE 1
5EB231250000
|
22,60 € | 1 | Add |
| 7 |
WASHER
4V423146L000
|
6,63 € | 1 | Add |
| 8 |
OIL SEAL
4PU231450100
|
16,90 € | 1 | Add |
| 9 |
RING, SNAP
4V423153L000
|
4,03 € | 1 | Add |
| 10 |
SEAL, DUST
4PU231440000
|
23,68 € | 1 | Add |
| 11 |
SPINDLE, TAPER
5MT231730000
|
Obsolete | 1 | Not available |
| 12 |
RUBBER
5MT231950000
|
17,85 € | 1 | Add |
| 13 |
GASKET
2K823158L000
|
6,68 € | 1 | Add |
| 14 |
BOLT, HEXAGON SOCKET HEAD
3LC231810000
|
17,52 € | 1 | Add |
| 15 |
SPRING, FRONT FORK
5MT231410000
|
Obsolete | 1 | Not available |
| 16 |
WASHER, SPRING UPPER
3TJ231491000
|
Obsolete | 1 | Not available |
| 17 |
WASHER, SPRING UPPER
3LR231490000
|
7,26 € | 1 | Add |
| 18 |
NUT
3LC233570000
|
0,51 € | 5 | Add |
| 19 |
SPACER
5MT231180000
|
Obsolete | 1 | Not available |
| 20 |
BOLT, CAP
5MT231110000
|
Obsolete | 1 | Not available |
| 21 |
ANILLO O
4V423188L100
|
5,26 € | 1 | Add |
| 22 |
FRONT FORK ASSY (R.H)
5MT231030100
|
Obsolete | 1 | Not available |
| 24 |
INNER TUBE COMP.1
5MT231100000
|
Obsolete | 1 | Not available |
| 25 |
PISTON, FRONT FORK
5EB231710000
|
25,04 € | 1 | Add |
| 26 |
CYLINDER COMP., FRONT FORK
5MT231700000
|
Obsolete | 1 | Not available |
| 27 |
METAL, SLIDE 1
5EB231250000
|
22,60 € | 1 | Add |
