Yamaha SUPERSPORT YZF-R6 2009

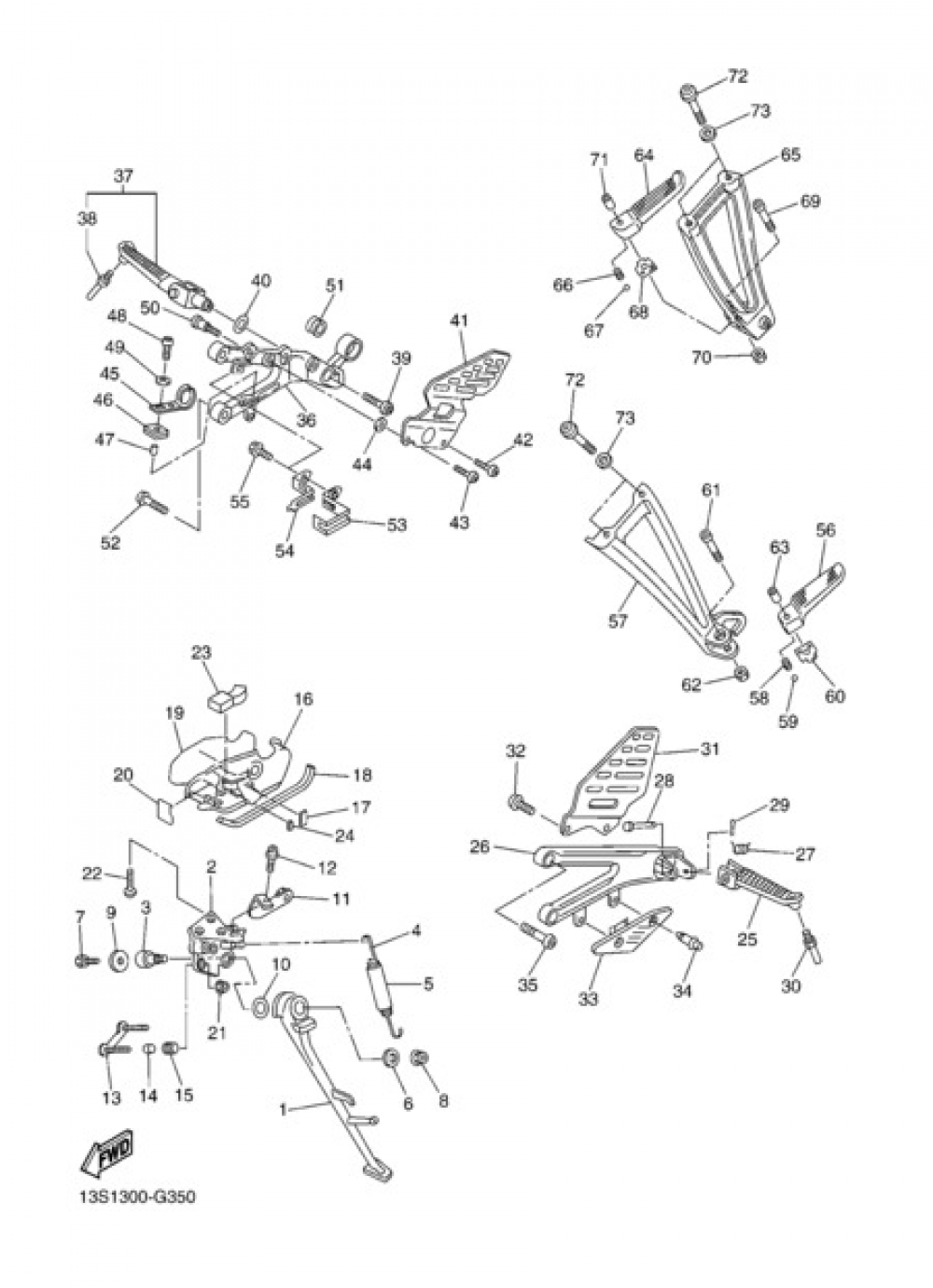

Add model to garageSTAND & FOOTREST Yamaha YZF-R6 2009
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
28 |
PIN, CLEVIS (2A6)
917010803800
|
5,77 € | 1 | Add |
29 |
PIN, COTTER
914902502000
|
1,44 € | 5 | Add |
30 |
BOLT
2C0274350000
|
8,63 € | 1 | Add |
31 |
PLATE 1
2C0274450000
|
85,40 € | 1 | Add |
32 |
BOLT, BUTTON HEAD
920170601200
|
1,55 € | 1 | Add |
33 |
PROTECTOR
2C0274910000
|
8,05 € | 1 | Add |
34 |
RIVET
902690600800
|
1,22 € | 1 | Add |
35 |
BOLT
90109085G600
|
1,70 € | 1 | Add |
36 |
BRACKET 3
2C0274430000
|
108,36 € | 1 | Add |
37 |
FRONT FOOTREST ASSY (RIGHT)
2C0274200000
|
83,93 € | 1 | Add |
38 |
BOLT
2C0274350000
|
8,63 € | 1 | Add |
39 |
BOLT,HEX. SOCKET BUTTON
901111001700
|
7,34 € | 1 | Add |
40 |
WASHER, CLAW
902141300200
|
6,17 € | 1 | Add |
41 |
PLATE 2
13S274460000
|
108,36 € | 1 | Add |
42 |
BOLT, BUTTON HEAD
920170601200
|
1,55 € | 1 | Add |
43 |
BOLT
901110604600
|
2,00 € | 1 | Add |
44 |
COLLAR
903870621500
|
5,07 € | 1 | Add |
45 |
STAY, STOP SWITCH
13S2144G0000
|
5,97 € | 1 | Add |
46 |
GROMMET(4SV)
904801260700
|
6,48 € | 1 | Add |
47 |
COLLAR 8121444900
903870602300
|
3,25 € | 1 | Add |
48 |
SCREW(6U1)
920170601600
|
1,50 € | 1 | Add |
49 |
WASHER, PLATE
902010638000
|
1,50 € | 1 | Add |
50 |
BOLT(4BP)
90109066F000
|
4,09 € | 1 | Add |
51 |
DAMPER, MUFFLER
5VY147470000
|
5,20 € | 1 | Add |
52 |
BOLT
90109085G600
|
1,70 € | 1 | Add |
53 |
BRACKET 8
2C02116K0000
|
11,35 € | 1 | Add |
54 |
BRACKET 9
2C02116L0000
|
4,75 € | 1 | Add |
