Yamaha SUPERSPORT YZF-R6 2010

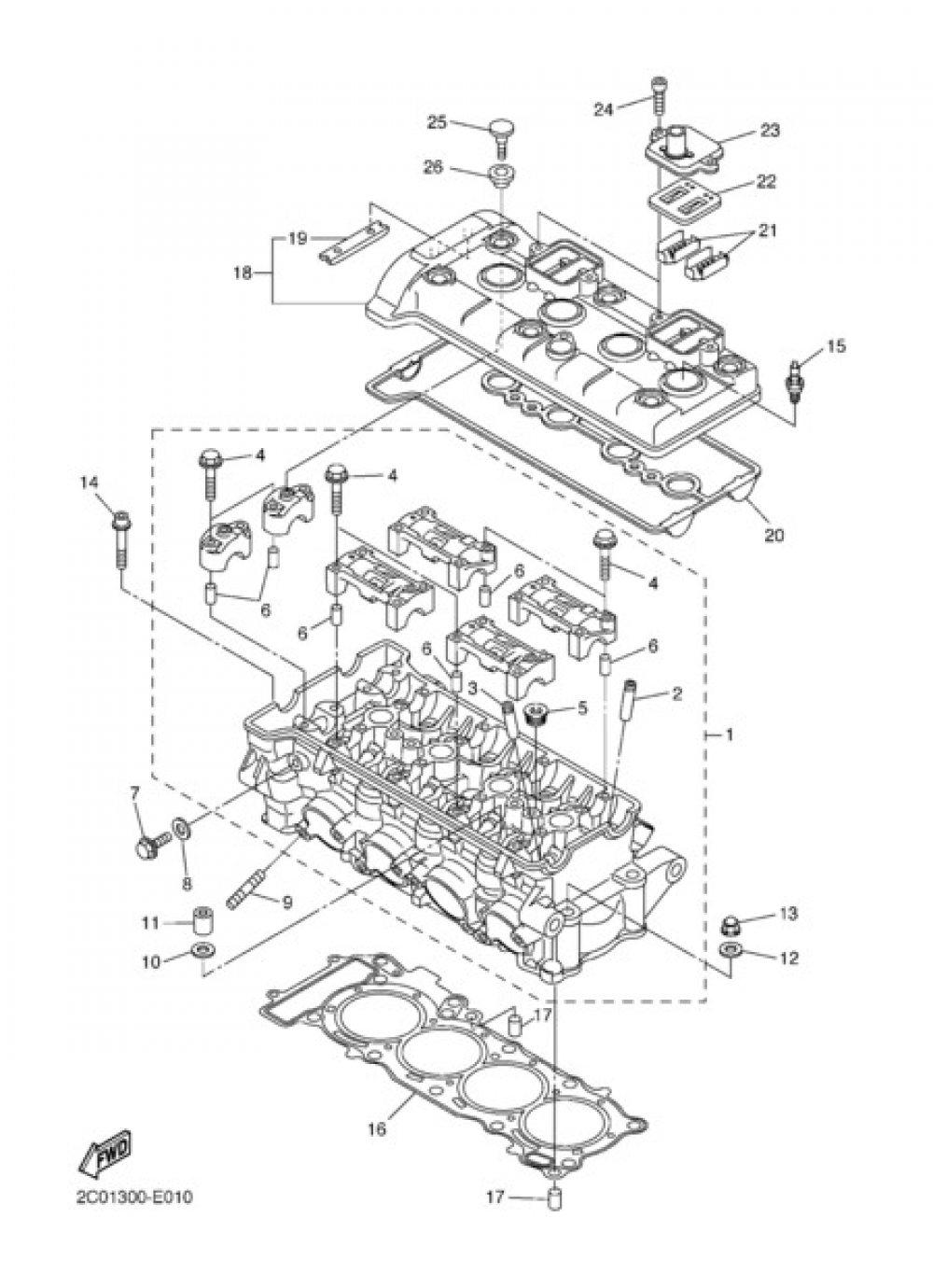

Add model to garageCYLINDER Yamaha YZF-R6 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CYLINDER HEAD ASSY
2C0111010100
|
3.316,60 € | 1 | Add |
| 2 |
GUIDE, VALVE 1
2C0111331100
|
45,94 € | 1 | Add |
| 3 |
GUIDE, VALVE 2
2C0111341100
|
64,54 € | 1 | Add |
| 4 |
BOLT, WASHER BASED
901050602700
|
1,49 € | 1 | Add |
| 5 |
PLUG, STRAIGHT SCREW
903401800200
|
7,94 € | 1 | Add |
| 6 |
PIN, DOWEL(3XW)
918081602300
|
1,55 € | 5 | Add |
| 7 |
BOLT, FLANGE
950220801200
|
0,74 € | 1 | Add |
| 8 |
WASHER, PLATE 3411117500
902010808700
|
3,09 € | 1 | Add |
| 9 |
BOLT, STUD
956120862500
|
2,22 € | 1 | Add |
| 10 |
WASHER, PLATE
902011003300
|
3,55 € | 1 | Add |
| 11 |
NUT
901791000600
|
10,53 € | 1 | Add |
| 12 |
WASHER, PLATE
902011003300
|
3,55 € | 1 | Add |
| 13 |
NUT, CROWN(2GG)
901761007500
|
4,57 € | 1 | Add |
| 14 |
BOLT, HEXAGON SOCKET HEAD
901100609400
|
6,45 € | 1 | Add |
| 15 |
PLUG, SPARK (CR10EK)
947010038600
|
15,14 € | 1 | Add |
| 16 |
GASKET, CYLINDER HEAD 1
2C0111810100
|
106,90 € | 1 | Add |
| 17 |
P1N, DOWEL
995301011400
|
1,60 € | 5 | Add |
| 18 |
TAPA CULATA DE CILINDRO 1
2C0111910100
|
383,64 € | 1 | Add |
| 19 |
TOPE DE GUIA 2
5BE122410100
|
34,11 € | 1 | Add |
| 20 |
GASKET, HEAD COVER 1
2C0111930000
|
55,42 € | 1 | Add |
| 21 |
PLATE
5VY1482K0000
|
6,86 € | 1 | Add |
| 22 |
REED VALVE ASSY
5SL148900000
|
55,56 € | 1 | Add |
| 23 |
CAP, CASE
5VY148990100
|
30,38 € | 1 | Add |
| 24 |
BOLT,SOCKET HEAD
913140602000
|
2,01 € | 1 | Add |
| 25 |
BOLT(4BP)
90109066F000
|
4,23 € | 1 | Add |
| 26 |
RUBBER, MOUNT 1
5VY1111G0000
|
14,93 € | 1 | Add |
