Yamaha XJ-SERIES XJ6 ABS 2011

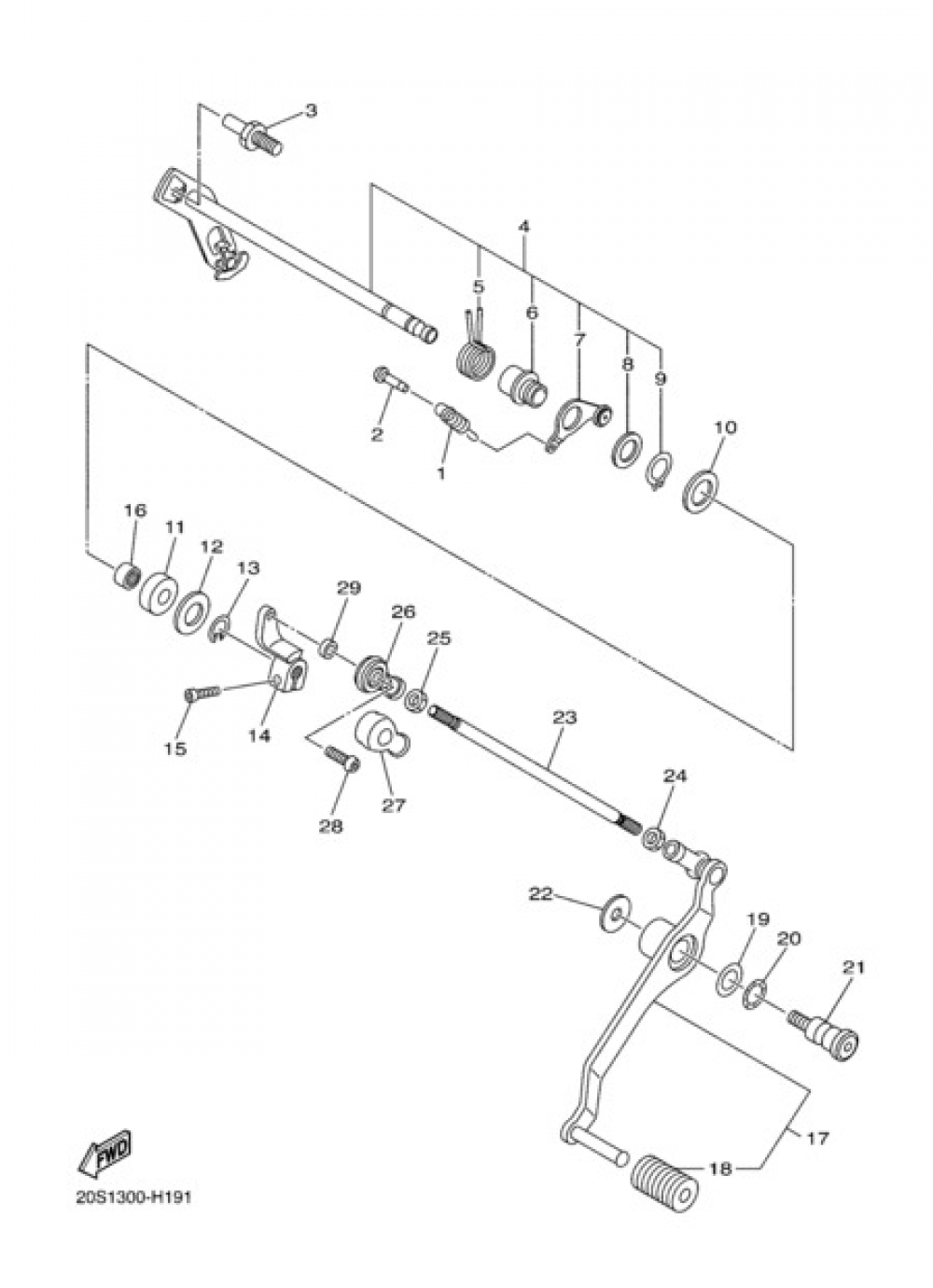

Add model to garageGEAR SHIFT AND PEDAL Yamaha XJ6 ABS 2011
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SPRING, TENSION
905061500500
|
3,37 € | 1 | Add |
| 2 |
HOOK, SPRING
132163460000
|
3,62 € | 1 | Add |
| 3 |
STOPPER, SCREW
5VK181270000
|
7,60 € | 1 | Add |
| 4 |
EJE SELECTOR COMPLETO
20S181010200
|
101,09 € | 1 | Add |
| 5 |
SPRING, TORSION
905083214100
|
5,44 € | 1 | Add |
| 6 |
ESPACIADOR
B7N181750000
|
23,39 € | 1 | Add |
| 7 |
STOPPER LEVER ASSY
20S181400000
|
18,82 € | 1 | Add |
| 8 |
WASHER, PLATE (30X)
90201177G400
|
3,37 € | 1 | Add |
| 9 |
CIRCLIP
9341017X0000
|
0,41 € | 10 | Add |
| 11 |
SEAL, OIL (30X)
931021232100
|
15,01 € | 1 | Add |
| 12 |
WASHER, PLATE (353)
902011257500
|
3,43 € | 1 | Add |
| 13 |
CIRCLIP
990061060000
|
1,66 € | 5 | Add |
| 14 |
ARM, SHIFT
20S181120000
|
64,89 € | 1 | Add |
| 15 |
BOLT
913120602000
|
2,88 € | 1 | Add |
| 16 |
BEARING
933171129500
|
11,83 € | 1 | Add |
| 17 |
SHIFT PEDAL ASSY
20S181100100
|
127,22 € | 1 | Add |
| 18 |
COVER, SHIFT PEDAL
5EB181130000
|
19,27 € | 1 | Add |
| 19 |
WASHER, PLATE
902011205100
|
1,33 € | 1 | Add |
| 20 |
WASHER, WAVE (17W)
902061207400
|
1,55 € | 1 | Add |
| 21 |
BOLT
4BP274341100
|
3,37 € | 1 | Add |
| 22 |
WASHER, PLATE
902010805300
|
2,22 € | 1 | Add |
| 23 |
ROD, SHIFT
3D8181150000
|
15,73 € | 1 | Add |
| 24 |
NUT
901700602600
|
0,62 € | 1 | Add |
| 25 |
NUT
953140670000
|
0,52 € | 1 | Add |
| 26 |
JOINT, ROD 1
5VX181160000
|
66,65 € | 1 | Add |
| 27 |
COVER, DUST
5VX181540000
|
5,45 € | 1 | Add |
