Yamaha XJ-SERIES XJ6 ABS 2013

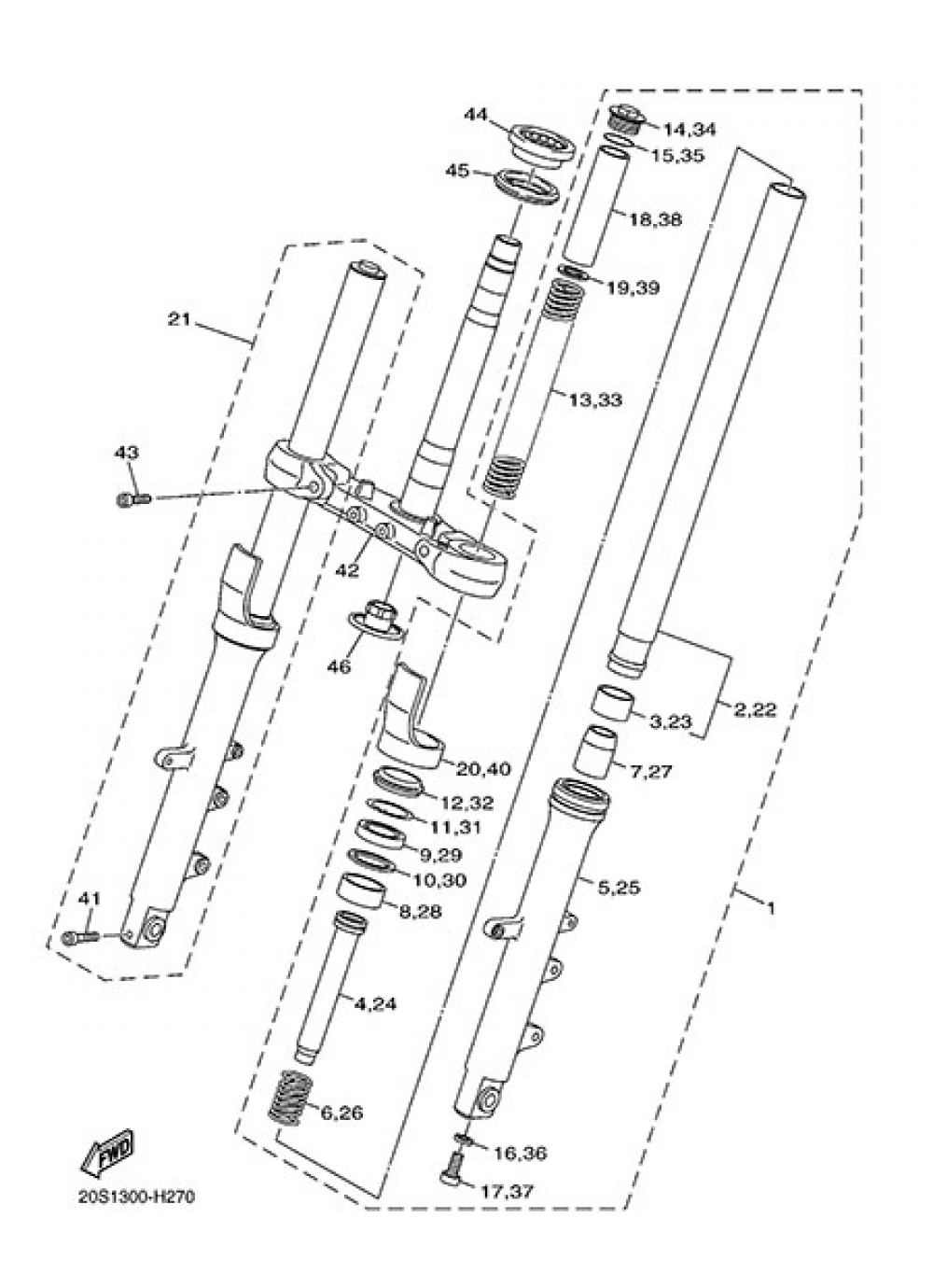

Add model to garageFRONT FORK Yamaha XJ6 ABS 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
20S231020000
|
517,51 € | 1 | Add |
| 2 |
INNER TUBE COMP.1
20S231100000
|
215,19 € | 1 | Add |
| 3 |
METAL, SLIDE 2
3VD231351000
|
20,62 € | 1 | Add |
| 4 |
CYLINDER COMP., FRONT FORK
20S231700000
|
294,59 € | 1 | Add |
| 5 |
TUBE, OUTER (LEFT)
20S231260000
|
278,70 € | 1 | Add |
| 6 |
SPRING, REBOUND
3VD231510000
|
6,17 € | 1 | Add |
| 7 |
SPINDLE, TAPER
5VU231730000
|
25,52 € | 1 | Add |
| 8 |
METAL, SLIDE 1
3VD231251000
|
21,23 € | 1 | Add |
| 9 |
OIL SEAL
5VU231450000
|
16,17 € | 1 | Add |
| 10 |
GUIDE, COVER UPPER
3VD231150000
|
6,85 € | 1 | Add |
| 11 |
CLIP, OIL SEAL
3VD231560000
|
3,90 € | 1 | Add |
| 12 |
SEAL, DUST
3VD231440000
|
20,20 € | 1 | Add |
| 13 |
SPRING, FRONT FORK
20S231410000
|
42,32 € | 1 | Add |
| 14 |
FORK, BOLT
5VU2311H0000
|
40,07 € | 1 | Add |
| 15 |
O-RING(3VD)
9321035N0200
|
4,52 € | 1 | Add |
| 16 |
GASKET (5R6)
904301017100
|
4,43 € | 5 | Add |
| 17 |
BOLT, HEXAGON SOCKET HEAD
9011010N5200
|
7,55 € | 1 | Add |
| 18 |
SPACER
5VU231180000
|
16,59 € | 1 | Add |
| 19 |
SEAT, SPRING UPPER
5VU231420000
|
3,13 € | 1 | Add |
| 20 |
COVER
4TX2331G0000
|
15,58 € | 1 | Add |
| 21 |
FRONT FORK ASSY (R.H)
20S231030000
|
517,51 € | 1 | Add |
| 22 |
INNER TUBE COMP.1
20S231100000
|
215,19 € | 1 | Add |
| 23 |
METAL, SLIDE 2
3VD231351000
|
20,62 € | 1 | Add |
| 24 |
CYLINDER COMP., FRONT FORK
20S231700000
|
294,59 € | 1 | Add |
| 25 |
TUBE, OUTER (RIGHT)
20S231360000
|
278,70 € | 1 | Add |
| 26 |
SPRING, REBOUND
3VD231510000
|
6,17 € | 1 | Add |
| 27 |
SPINDLE, TAPER
5VU231730000
|
25,52 € | 1 | Add |
