Yamaha XJ-SERIES XJ6 Diversion F 2013

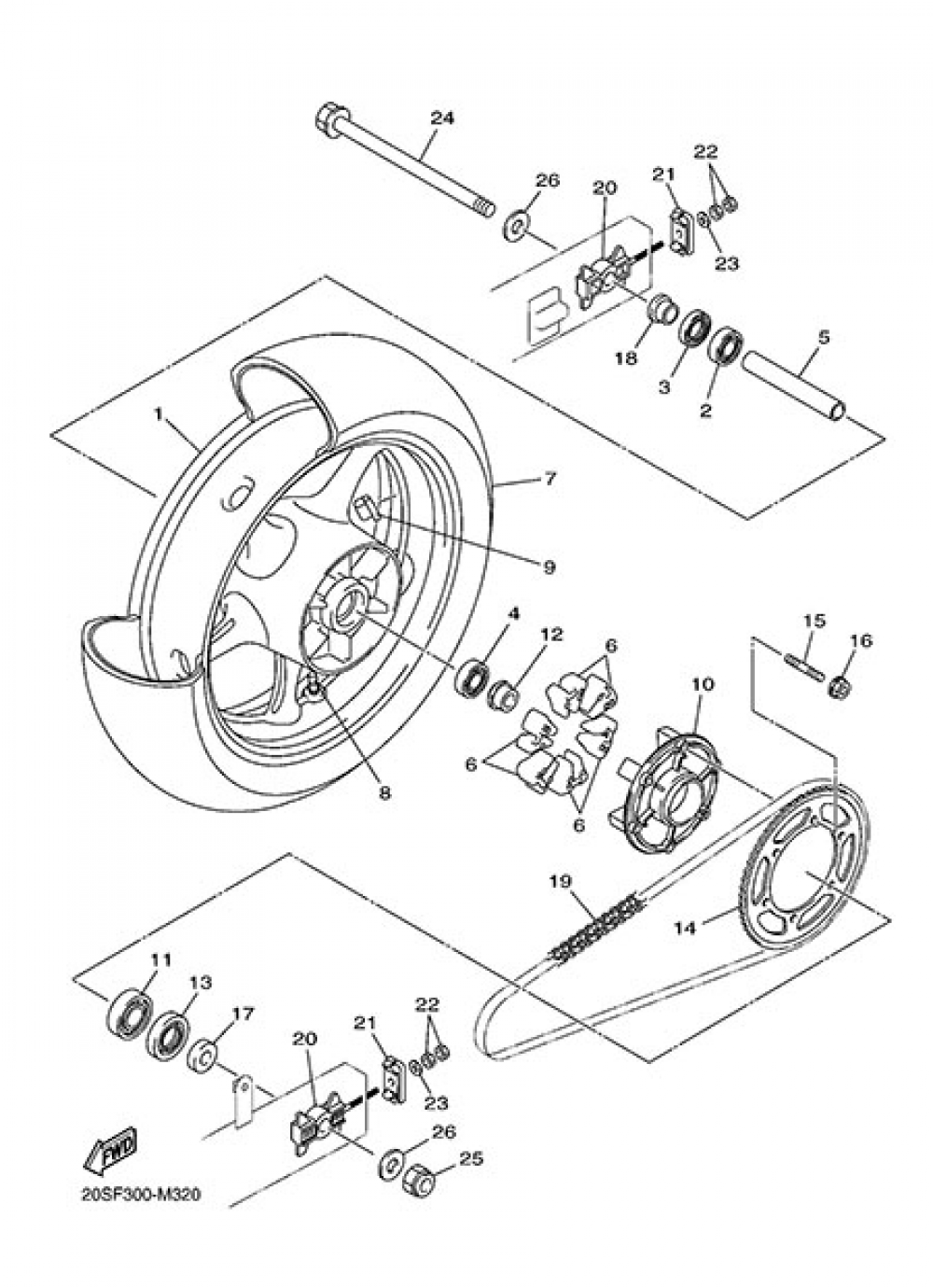

Add model to garageREAR WHEEL Yamaha XJ6 Diversion F 2013
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CAST WHEEL, REAR
20S253380098
|
862,40 € | 1 | Add |
| 1 |
CAST WHEEL, REAR
20S2533800P2
|
862,40 € | 1 | Add |
| 2 |
BEARING(4HM)
933063031700
|
41,22 € | 1 | Add |
| 3 |
OIL SEAL (25X47X7-801)
931022504400
|
10,04 € | 1 | Add |
| 4 |
BEARING(4HM)
933063031700
|
41,22 € | 1 | Add |
| 5 |
SPACER, BEARING
20S253170000
|
17,66 € | 1 | Add |
| 6 |
DAMPER
20S253640000
|
16,07 € | 1 | Add |
| 7 |
TIRE
941161701500
|
667,70 € | 1 | Add |
| 7 |
TIRE
941161701900
|
Obsolete | 1 | Not available |
| 8 |
VALVE, RIM(2GH)
939000003000
|
13,44 € | 1 | Add |
| 9 |
BALANCER, WHEEL
5MT253981000
|
13,57 € | 1 | Add |
| 9 |
BALANCER, WHEEL
5MT253982000
|
13,57 € | 1 | Add |
| 9 |
BALANCER, WHEEL
5MT253980000
|
13,57 € | 1 | Add |
| 10 |
CLUTCH, HUB
20S253660000
|
264,76 € | 1 | Add |
| 11 |
BEARING
933062065900
|
33,24 € | 1 | Add |
| 12 |
COLLAR, WHEEL
20S253830000
|
37,82 € | 1 | Add |
| 13 |
OIL SEAL
931064004100
|
13,99 € | 1 | Add |
| 14 |
SPROCKET, DRIVEN (46T)
20S254460000
|
67,65 € | 1 | Add |
| 15 |
BOLT, STUD
901161004800
|
3,49 € | 1 | Add |
| 16 |
NUT, U FLANGE
956021020000
|
4,29 € | 1 | Add |
| 17 |
COLLAR, WHEEL
20S253770000
|
42,40 € | 1 | Add |
| 18 |
COLLAR, WHEEL
20S251830000
|
34,20 € | 1 | Add |
| 19 |
CHAIN
945823711800
|
415,50 € | 1 | Add |
| 20 |
PULLER, CHAIN 1
1UF253880200
|
38,97 € | 1 | Add |
| 21 |
END 1
1UF221741000
|
38,97 € | 1 | Add |
| 22 |
NUT, HEX.
997800860000
|
1,42 € | 1 | Add |
| 23 |
WASHER, PLAIN (663)
929900860000
|
0,62 € | 5 | Add |
