Yamaha XJ-SERIES XJ6 Diversion F 2015

Add model to garage

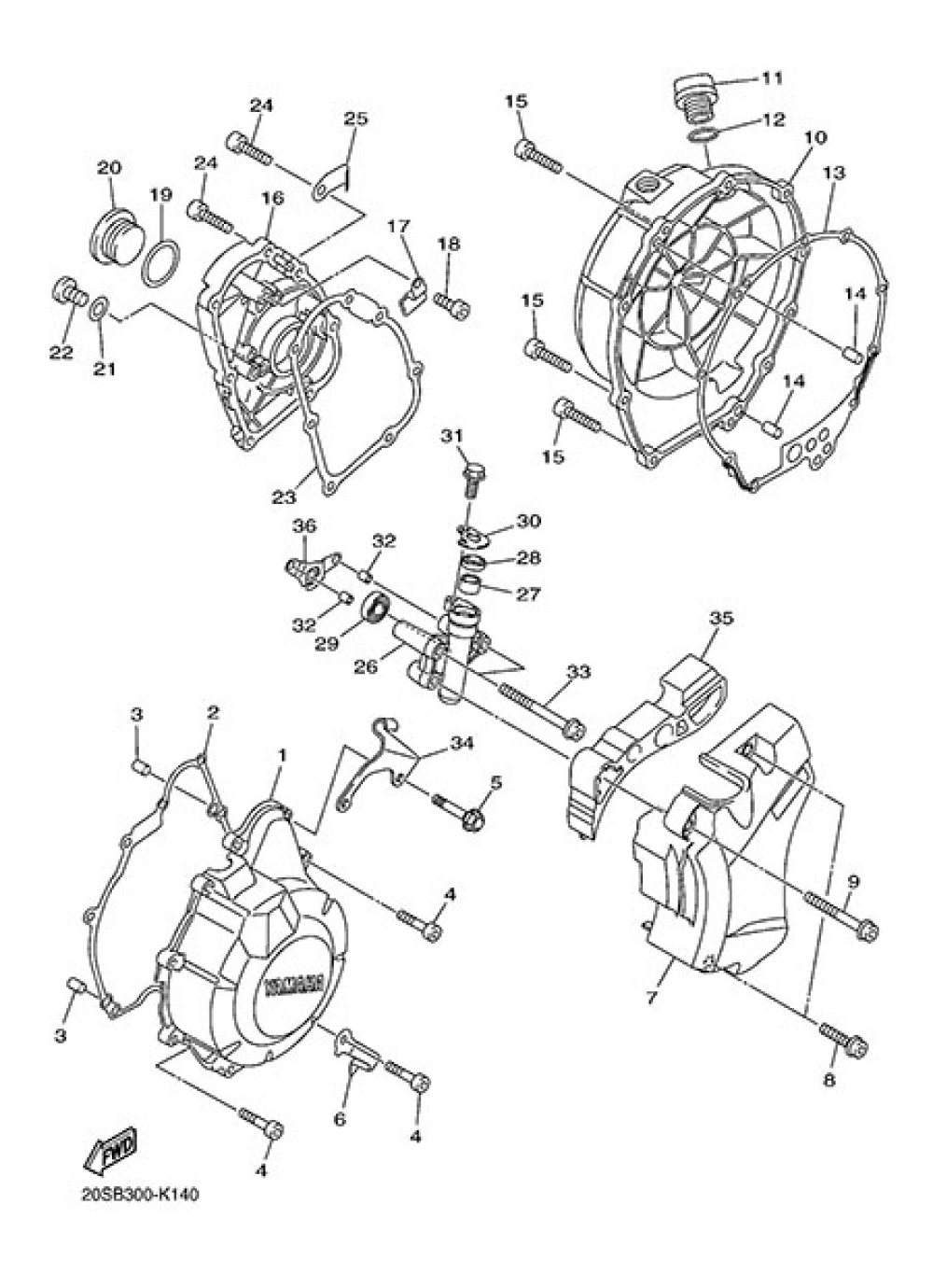

CRANKCASE COVER 1 Yamaha XJ6 Diversion F 2015

Pos. Ref./Description Price Qty.
1 COVER, CRANKCASE 1
36P154110100
190,31 € 1 Add
2 GASKET, CRANKCASE COVER 1
5VX154510100
21,23 € 1 Add
3 PIN, DOWEL(6G8)
995300801200
1,25 € 1 Add
4 BOLT,SOCKET HEAD
913140602500 901100629500
1,32 € 1 Add
5 TORNILLO CON ARANDELA
901050619500 901050619400
1,16 € 1 Add
6 CLAMP
904650804500
7,15 € 1 Add
7 COVER, CHAIN CASE
20S154180000
69,29 € 1 Add
8 BOLT, HEXAGON SOCKET HEAD
901100619500 901100632900
1,96 € 1 Add
9 BOLT, HEXAGON SOCKET HEAD
901100630500 901100633000
6,47 € 1 Add
10 COVER, CRANKCASE 2
36P154210000
197,50 € 1 Add
11 PLUG, OIL LEVEL
3F9153621000
13,19 € 1 Add
12 O-RING(1KT)
932102777800 932102719400
6,42 € 1 Add
13 GASKET, CRANKCASE COVER 2
20S154610000
21,23 € 1 Add
14 PIN, DOWEL
936081726300
1,96 € 5 Add
15 BOLT,SOCKET HEAD
913140602500 901100629500
1,32 € 1 Add
16 COVER, OIL PUMP
36P154160000
121,96 € 1 Add
17 CLAMP
904651401100
4,36 € 1 Add
18 BOLT,SOCKET
913170601600 901100616100
0,30 € 1 Add
19 O-RING (341)
932103217200
4,78 € 1 Add
20 PLUG, STRAIGHT SCREW
903403200400
11,54 € 1 Add
21 GASKET (256-11198-00)
904300814300
2,20 € 1 Add
22 BOLT, BUTTON HEAD
920140801400
1,51 € 1 Add
23 GASKET, OIL PUMP COVER 1
20S154560000
21,26 € 1 Add
24 BOLT,SOCKET HEAD
913140602000 901100627400
1,79 € 1 Add
25 CLAMP
904651004200
6,54 € 1 Add
26 COVER, GENERATOR 2
20S154251000
129,49 € 1 Add
27 BEARING
933171129500
11,08 € 1 Add
