Yamaha XJ-SERIES XJ6 Diversion 2009

Add model to garage

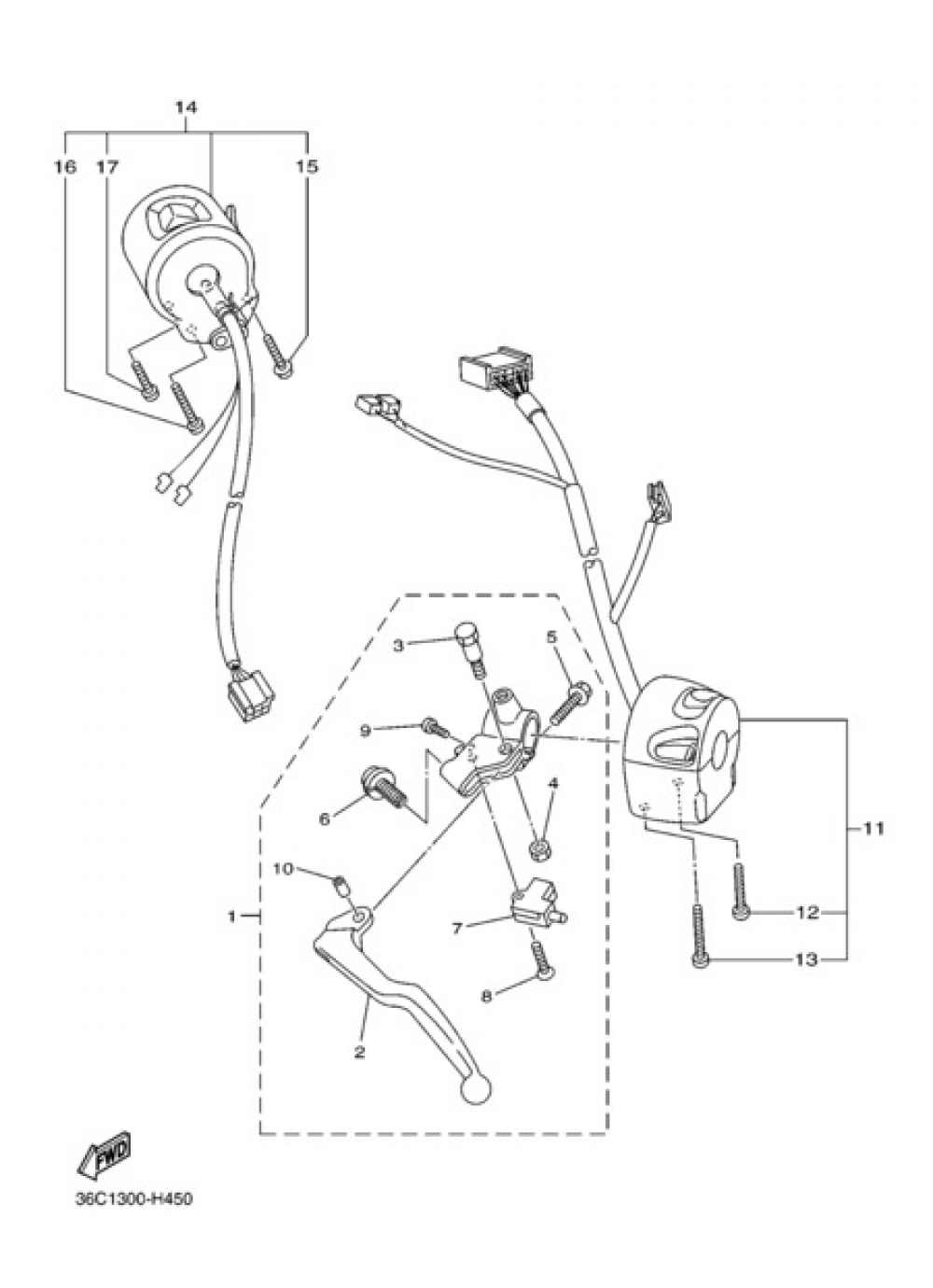

HANDLEBAR SWITCH AND LEVER Yamaha XJ6 Diversion 2009

Pos. Ref./Description Price Qty.
1 LEVER HOLDER ASSY (LEFT)
5VX829100100
137,58 € 1 Add
2 LEVER 1
5EB839120300
42,17 € 1 Add
3 BOLT, LEVER
2C0839450000 4XV839450000
6,06 € 1 Add
4 NUT, U
956170610000 956070610000
3,61 € 1 Add
5 BOLT, FLANGE(6U1)
950270602000
0,28 € 1 Add
6 BOLT, CABLE ADJUSTING
5LV839510000
9,25 € 1 Add
7 SWITCH
3YX829170100
62,46 € 1 Add
8 SCREW, SPECIAL
57M833580000 987040302000
0,61 € 5 Add
9 SCREW, PAN HEAD(6G8)
985070401000
0,58 € 1 Add
10 COLLAR, LEVER 1
5JJ839130000
6,86 € 1 Add
11 SWITCH, HANDLE 5
36C839690000
173,14 € 1 Add
12 unknown
985170503000 985070503000
0,30 € 1 Add
13 SCREW, PAN
985070504500
1,12 € 1 Add
14 SWITCH, HANDLE 2
5VX839750100
123,87 € 1 Add
15 SCREW,WITH WASHER
976070525500
2,12 € 1 Add
16 SCREW, PAN
985070504500
1,12 € 1 Add
17 SCREW, PAN HEAD
985170502000 985070502000
0,58 € 1 Add
