Yamaha XJ-SERIES XJ600N 2002

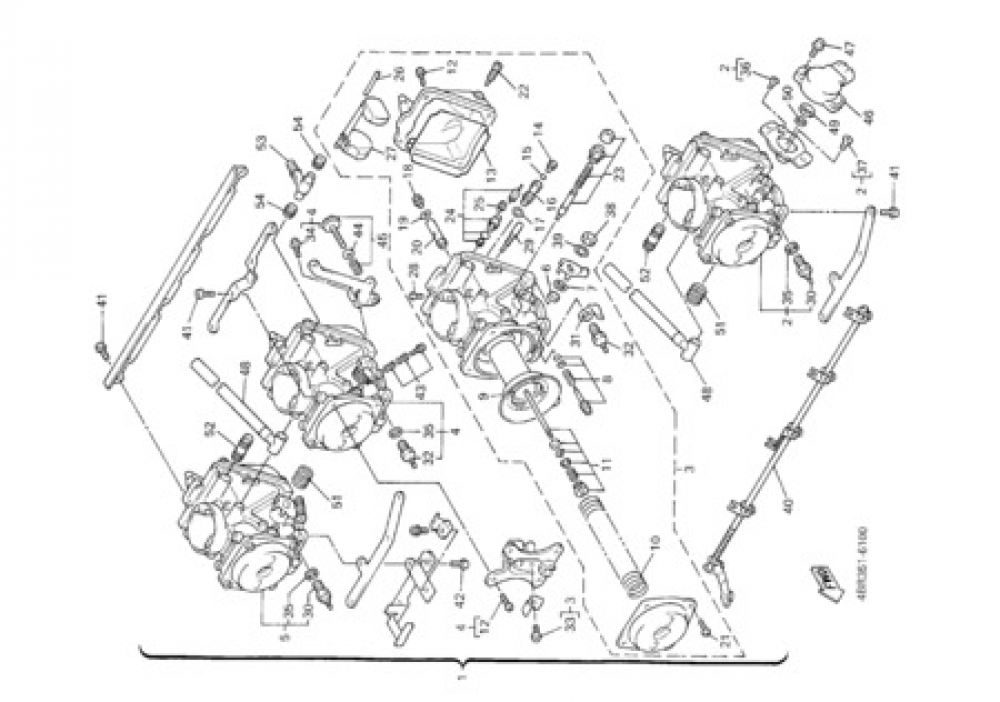

Add model to garageCARBURET0R Yamaha XJ600N 2002
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 19 |
WASHER,MAIN JET
137141530000
|
3,18 € | 1 | Add |
| 20 |
MAIN NOZZLE(0-0)
3DM141413000
|
54,22 € | 1 | Add |
| 21 |
SCREW, PAN HEAD (713)
985800400800
|
1,54 € | 1 | Add |
| 21 |
SCREW, PAN HEAD (713)
985800400800
|
1,54 € | 1 | Add |
| 22 |
PLUG, DRAIN
12R141910000
|
8,44 € | 1 | Add |
| 23 |
STARTER SET
4DU1410A0000
|
Obsolete | 1 | Not available |
| 24 |
NEEDLE VALVE SET
3CF141071000
|
71,61 € | 1 | Add |
| 25 |
SCREW
1FN145650000
|
5,07 € | 1 | Add |
| 26 |
PIN, FLOAT
353141860000
|
1,60 € | 1 | Add |
| 27 |
FLOAT
1HX149850000
|
75,19 € | 1 | Add |
| 28 |
JET, MAIN (N?135)
1HX142312700
|
15,25 € | 1 | Add |
| 28 |
JET, MAIN (N?140)
1HX142312800
|
15,25 € | 1 | Add |
| 29 |
JET, PILOT (N?17.5)
22F141421700
|
20,81 € | 1 | Add |
| 29 |
JET, PILOT (N? 15)
22F141421500
|
20,81 € | 1 | Add |
| 30 |
HEATER ASSY
4EB837900000
|
Obsolete | 1 | Not available |
| 31 |
TERMINAL 1
4DH821030000
|
12,10 € | 1 | Add |
| 32 |
HEATER ASSY
5FU837900000
|
54,33 € | 1 | Add |
| 33 |
SCREW, PAN HEAD (7G3)
985800500800
|
1,72 € | 1 | Add |
| 34 |
SCREW
4DU141250000
|
Obsolete | 1 | Not available |
| 34 |
SCREW
4DU141250000
|
Obsolete | 1 | Not available |
| 35 |
WASHER, PLATE (22K)
90201082H000
|
0,62 € | 5 | Add |
| 36 |
SCREW, FLAT
987070300800
|
0,52 € | 1 | Add |
| 37 |
SCREW, FLAT
987070501000
|
2,97 € | 1 | Add |
| 38 |
NUT
812145940000
|
4,71 € | 1 | Add |
| 39 |
WASHER(JN5)
929070810000
|
0,52 € | 1 | Add |
| 40 |
STARTER LEVER SET, 1
4BR1490L0000
|
Obsolete | 1 | Not available |
| 41 |
SCREW, PAN HEAD(62X)
978850501000
|
0,74 € | 1 | Add |
