Yamaha CARRETERA XT660X 2007

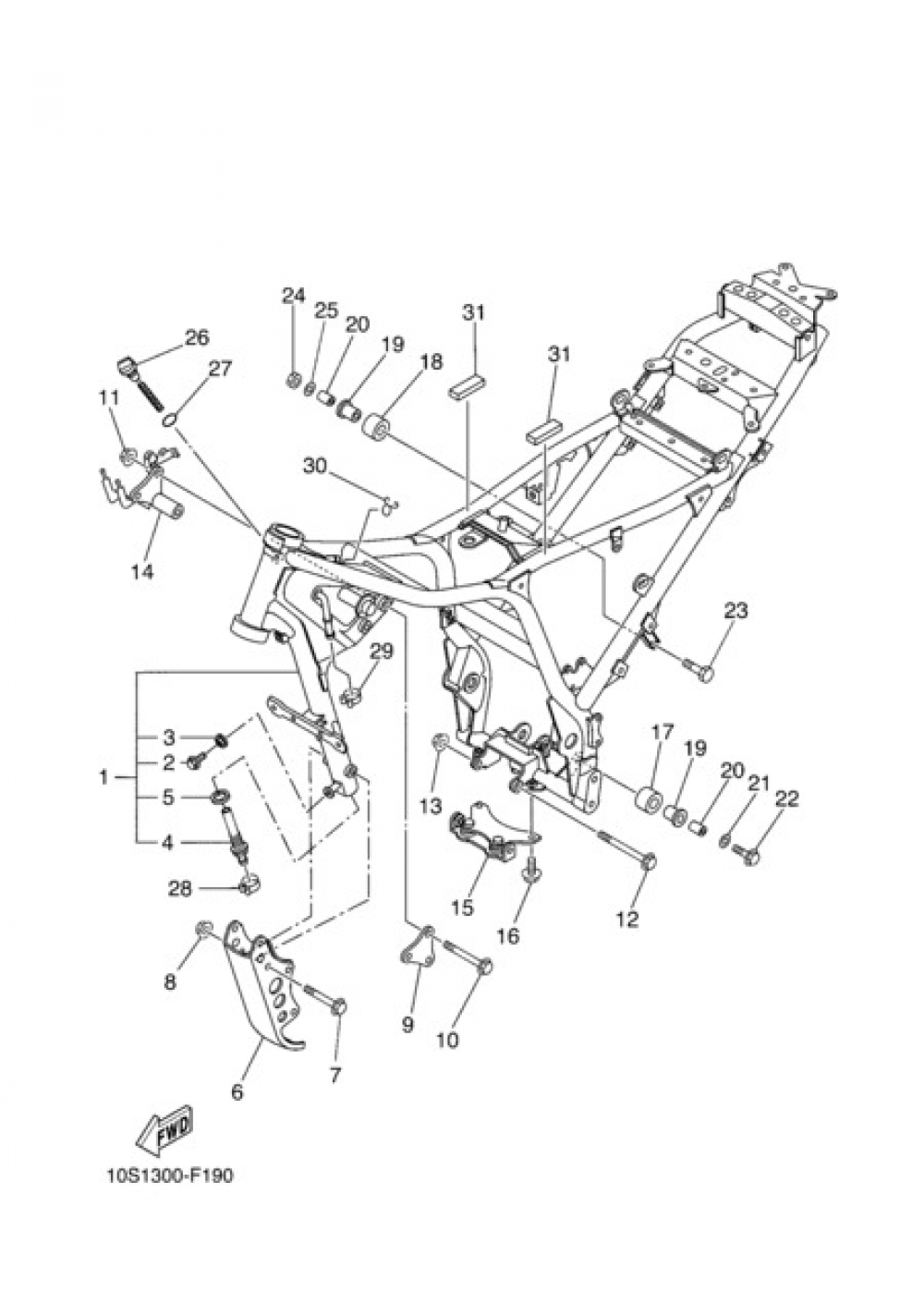

Add model to garageFRAME Yamaha XT660X 2007
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
1 |
FRAME COMP MBL2
5VKF11101000
|
2.419,66 € | 1 | Add |
2 |
BOLT, FLANGE
958170801200
|
1,28 € | 1 | Add |
3 |
WASHER, PLATE 3411117500
902010808700
|
2,99 € | 1 | Add |
4 |
NET FILTER
5VKF17560000
|
60,98 € | 1 | Add |
5 |
GASKET (583 OIL TANK)
904302212300
|
3,89 € | 1 | Add |
6 |
STAY ENGINE 2
5VKF13160000
|
42,58 € | 1 | Add |
7 |
BOLT, FLANGE
958141007000
|
4,75 € | 1 | Add |
8 |
NUT, FLANGE(3BM)
957041050000
|
1,55 € | 1 | Add |
9 |
STAY ENGINE 1
5VKF13150000
|
22,89 € | 1 | Add |
10 |
BOLT, FLANGE(4TR)
958141010000
|
5,71 € | 1 | Add |
11 |
NUT, FLANGE(3BM)
957041050000
|
1,55 € | 1 | Add |
12 |
BOLT
901051004000
|
6,57 € | 1 | Add |
13 |
NUT, FLANGE(3BM)
957041050000
|
1,55 € | 1 | Add |
14 |
ENGINE BRACKET COMP.
5VKF14100000
|
62,75 € | 1 | Add |
15 |
STAY, MUFFLER 1
5VK214450000
|
64,69 € | 1 | Add |
16 |
BOLT, FLANGE (3JPE)
950240801600
|
1,61 € | 1 | Add |
17 |
TENSIONER
30X221780000
|
17,85 € | 1 | Add |
18 |
TENSIONER
10V221780000
|
19,73 € | 1 | Add |
19 |
BUSH
10V221840000
|
4,93 € | 1 | Add |
20 |
COLLAR
903870802400
|
4,69 € | 1 | Add |
21 |
WASHER, PLATE (22K)
90201082H000
|
0,60 € | 5 | Add |
22 |
BOLT, FLANGE
958170804000
|
1,61 € | 1 | Add |
23 |
BOLT (2W6)
901010842800
|
2,39 € | 1 | Add |
24 |
NUT, U
956170810000
|
5,13 € | 1 | Add |
25 |
WASHER(6TC)
929070820000
|
0,60 € | 1 | Add |
26 |
PLUG, OIL LEVEL
5VK153620100
|
16,21 € | 1 | Add |
27 |
O-RING (646)
932101912300
|
4,98 € | 5 | Add |
