Yamaha CARRETERA XT660X 2007

Add model to garage

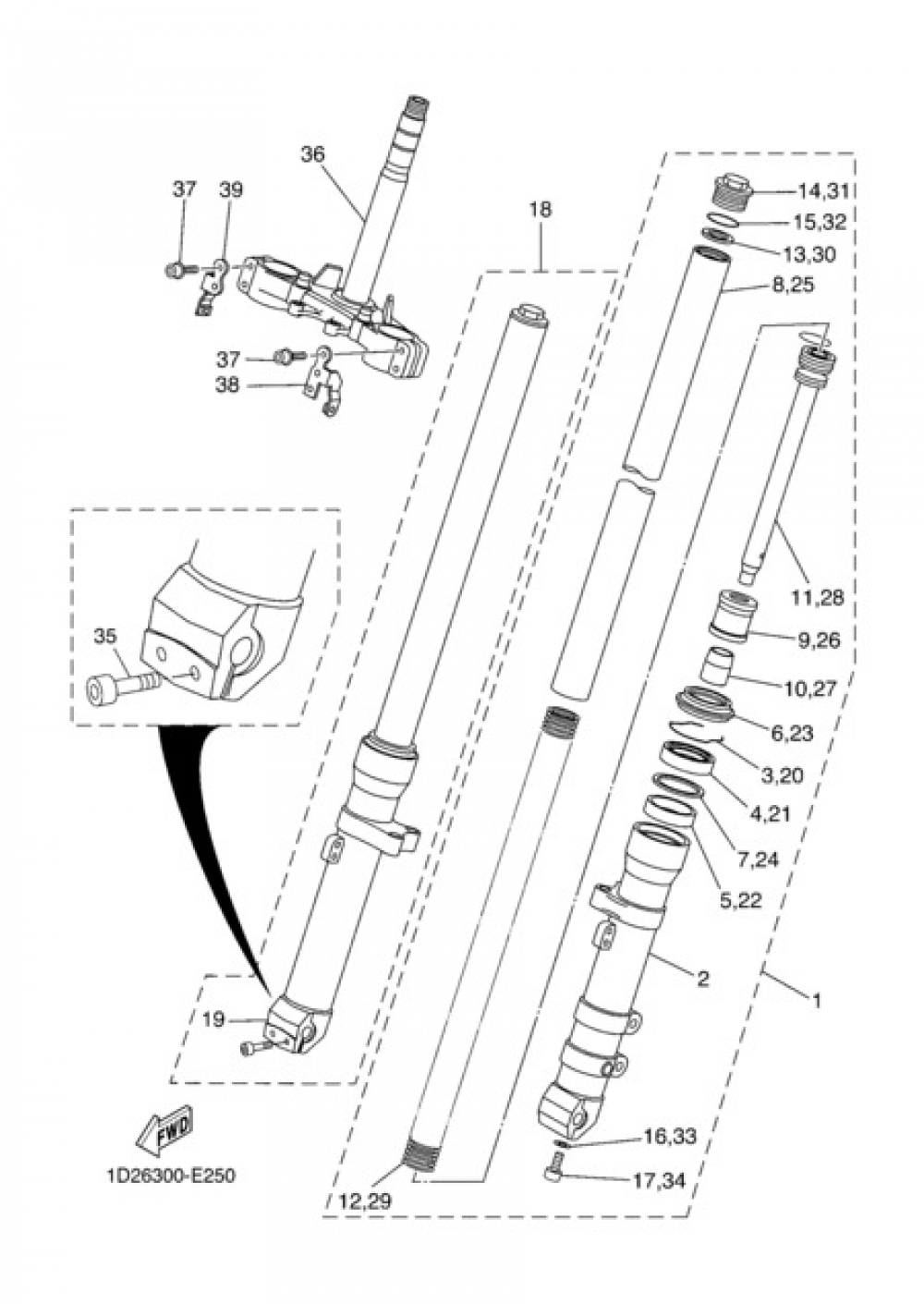

FRONT FORK Yamaha XT660X 2007

Pos. Ref./Description Price Qty.
1 FRONT FORK ASSY LEFT
1D2F31022000
440,75 € 1 Add
2 OUTER TUBE LEFT
1D2F31262000
237,35 € 1 Add
3 RING, SNAP
4V423153L000 5VKF31530000
3,09 € 1 Add
4 OIL SEAL
4PU231450100 4DA23145L000
14,44 € 1 Add
5 METAL, SLIDE 1
5EB231250000 3XJ23125L000
18,67 € 1 Add
6 SEAL, DUST
5VKF31440000
27,94 € 1 Add
7 WASHER, OIL SEAL
11DF31460000 5VKF31460000
7,91 € 1 Add
8 INNER TUBE COMP.1
1D2F31100000
404,76 € 1 Add
9 PISTON, FRONT FORK
5EB231710000 3XJ23171L000
20,63 € 1 Add
10 SPINDLE, TAPER
5VKF31730000
Obsolete 1 Not available
11 CYLINDER COMP. FRONT FORK
1D2F31700000
242,91 € 1 Add
14 BOLT, CAP
1D2F31110000
69,38 € 1 Add
15 O-RING
4V423188L000
4,11 € 1 Add
16 GASKET
5JHF31580000
6,61 € 1 Add
17 BOLT, HEXAGON SOCKET HEAD
3D8231810000 1D2F31810000
4,36 € 1 Add
18 FRONT FORK ASSY RIGHT
1D2F31032000
402,50 € 1 Add
19 OUTER TUBE RIGHT
1D2F31362000
Obsolete 1 Not available
20 RING, SNAP
4V423153L000 5VKF31530000
3,09 € 1 Add
21 OIL SEAL
4PU231450100 4DA23145L000
14,44 € 1 Add
22 METAL, SLIDE 1
5EB231250000 3XJ23125L000
18,67 € 1 Add
23 SEAL, DUST
5VKF31440000
27,94 € 1 Add
24 WASHER, OIL SEAL
11DF31460000 5VKF31460000
7,91 € 1 Add
25 INNER TUBE COMP.1
1D2F31100000
404,76 € 1 Add
26 PISTON, FRONT FORK
5EB231710000 3XJ23171L000
20,63 € 1 Add
27 SPINDLE, TAPER
5VKF31730000
Obsolete 1 Not available
