Yamaha CUSTOM VMAX 2016

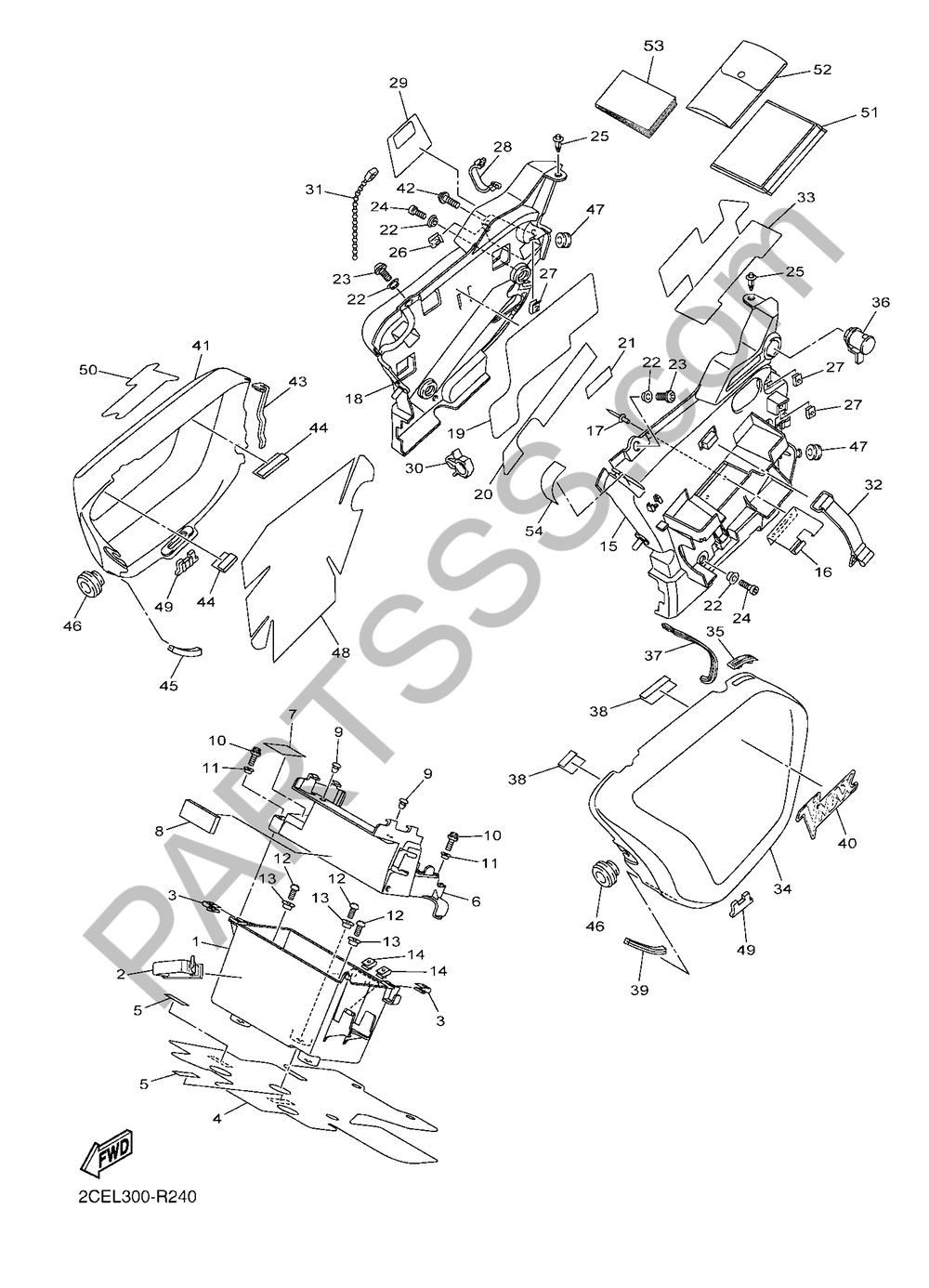

Add model to garageCUBIERTA LATERAL 2 Yamaha VMAX 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
BOX, BATTERY
2S32177G0000
|
48,70 € | 1 | Add |
| 2 |
CLAMP
904641301200
|
10,38 € | 1 | Add |
| 3 |
NUT, SPRING
90183050A600
|
2,43 € | 1 | Add |
| 4 |
PROTECTOR
2S32117G0200
|
66,07 € | 1 | Add |
| 5 |
SEAL 1
2S3217320000
|
2,07 € | 1 | Add |
| 6 |
BOX, BATTERY 1
2S38212B0000
|
68,48 € | 1 | Add |
| 7 |
PATCH 5
5JW2164K0000
|
3,94 € | 1 | Add |
| 8 |
DAMPER 1
2S3216380000
|
18,40 € | 1 | Add |
| 9 |
PLUG(1NL)
903380718000
|
6,85 € | 5 | Add |
| 10 |
BOLT, HEXAGON SOCKET HEAD
901100502800
|
0,86 € | 1 | Add |
| 11 |
COLLAR
903870503500
|
5,40 € | 1 | Add |
| 12 |
BOLT, BUTTON HEAD
920120601200
|
0,86 € | 1 | Add |
| 13 |
COLLAR
903870613000
|
6,71 € | 1 | Add |
| 14 |
NUT, SPRING(47R)
901830403900
|
9,76 € | 1 | Add |
| 15 |
PANEL 1
2S32172A0000
|
40,14 € | 1 | Add |
| 16 |
HOOK, BAND
2S32175R0000
|
19,79 € | 1 | Add |
| 17 |
RIVET, BLIND (8K1)
902674007600
|
1,60 € | 1 | Add |
| 18 |
PANEL 2
2S32172F0000
|
40,14 € | 1 | Add |
| 19 |
DAMPER, PLATE 1
2S32414H0000
|
38,13 € | 1 | Add |
| 20 |
DAMPER, SEAT
2S3247370000
|
4,42 € | 1 | Add |
| 21 |
DAMPER, MUFFLER
7TD147471000
|
1,85 € | 1 | Add |
| 22 |
COLLAR
903870604000
|
7,83 € | 1 | Add |
| 23 |
BOLT,HEX. SOCKET BUTTON
901110611900
|
4,42 € | 1 | Add |
| 24 |
BOLT,SOCKET HEAD
913140602000
|
2,07 € | 1 | Add |
| 25 |
RIVET
902690600800
|
1,30 € | 1 | Add |
| 26 |
NUT, SPRING(4ES)
901830606900
|
2,12 € | 1 | Add |
| 27 |
NUT, SPRING
90183050A600
|
2,43 € | 1 | Add |
| 28 |
CLAMP(4NK)
904642423000
|
4,49 € | 1 | Add |
| 29 |
PROTECTOR
2S3216520000
|
6,15 € | 1 | Add |
| 30 |
CLAMP(3XV)
904641515700
|
3,47 € | 1 | Add |
| 31 |
BAND
80L263970000
|
0,41 € | 5 | Add |
| 32 |
BAND, BATTERY
3TJ821310000
|
13,57 € | 1 | Add |
| 33 |
DAMPER
2S3217460000
|
6,15 € | 1 | Add |
| 34 |
TAPA LATERAL 3
2S3217312000
|
Obsolete | 1 | Not available |
| 35 |
CAP, SLIDER
2S32171P0000
|
22,56 € | 1 | Add |
| 36 |
LOCK ASSY 2
2S3217080100
|
453,62 € | 1 | Add |
| 37 |
MOLD, SEAT
2S3247850000
|
39,02 € | 1 | Add |
| 38 |
DAMPER
2AL845530000
|
7,74 € | 1 | Add |
| 39 |
MOLE 4
2S3283480000
|
5,31 € | 1 | Add |
| 40 |
EMBLEM 3D
2S32173D0100
|
88,90 € | 1 | Add |
| 41 |
CUBIERTA LATERAL 4
2S3217412100
|
Obsolete | 1 | Not available |
| 42 |
BOLT
901110603800
|
4,29 € | 1 | Add |
| 43 |
MOLD 2
2S32478K0000
|
43,37 € | 1 | Add |
| 44 |
DAMPER
2AL845530000
|
7,74 € | 1 | Add |
| 45 |
MOLE 4
2S3283480000
|
5,31 € | 1 | Add |
| 46 |
DAMPER
2S3217170000
|
14,74 € | 1 | Add |
| 47 |
GROMMET
904801232000
|
2,64 € | 1 | Add |
| 48 |
DAMPER, SEAT
2S3247240000
|
15,69 € | 1 | Add |
| 49 |
DAMPER
2S3246650000
|
7,83 € | 1 | Add |
| 50 |
EMBLEM 3D
2S32174D0100
|
86,34 € | 1 | Add |
| 51 |
TOOL KIT
2S3281000000
|
105,57 € | 1 | Add |
| 52 |
TOOL KIT, 2
2S3281100000
|
61,01 € | 1 | Add |
| 53 |
MANUAL DEL PROPRIETARIO
2CE28199S100
|
Obsolete | 1 | Not available |
| 54 |
TAPE, 2
2C0215670000
|
5,68 € | 1 | Add |
