Yamaha CUSTOM VMAX 2016

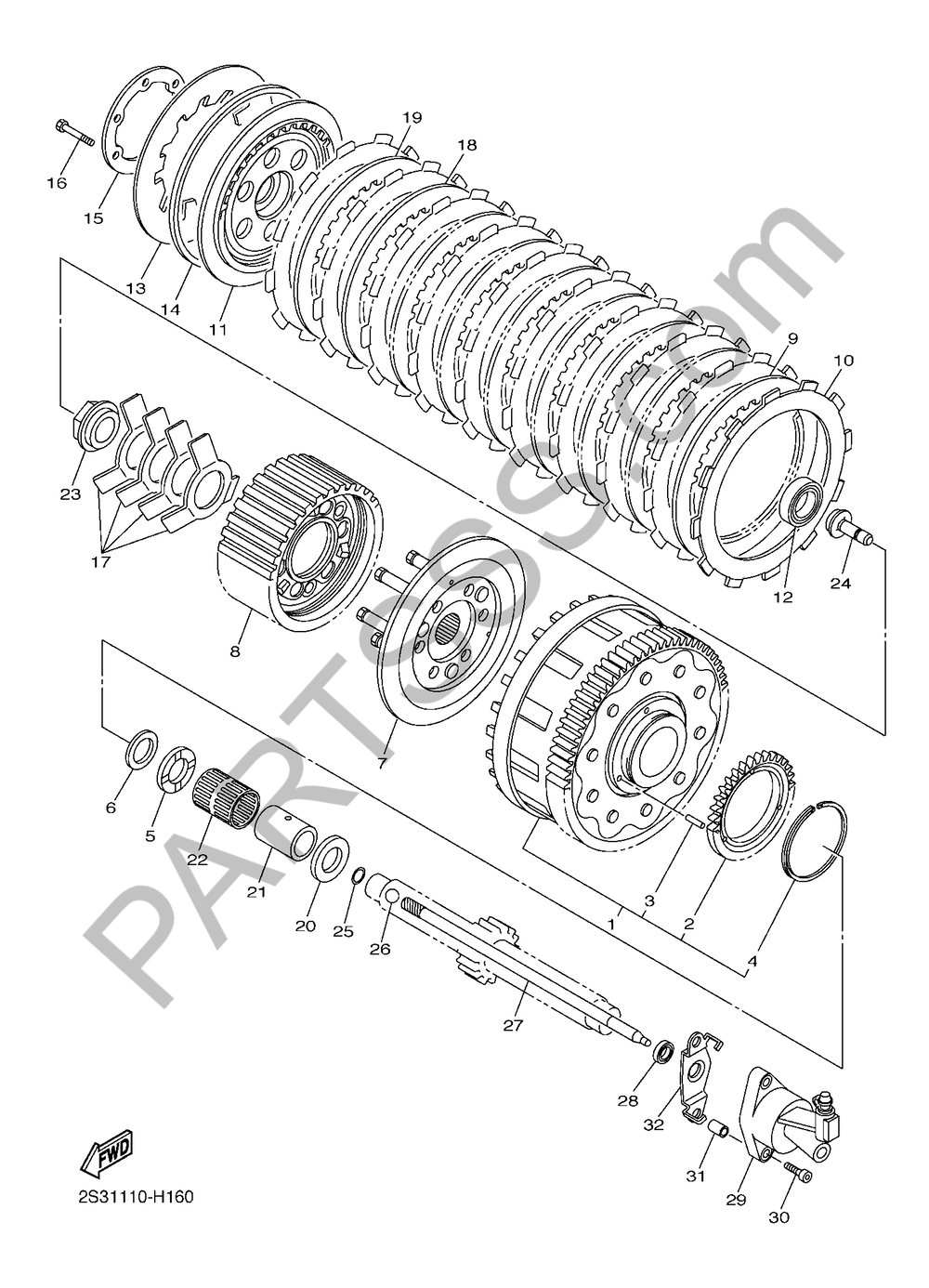

Add model to garageEMBRAGUE Yamaha VMAX 2016
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
PRIMARY DRIVEN GEAR COMP.
2S3161500000
|
1.708,52 € | 1 | Add |
| 2 |
GEAR, PUMP DRIVE
2S3133240000
|
156,64 € | 1 | Add |
| 3 |
PIN, DOWEL (409)
936041609200
|
2,97 € | 5 | Add |
| 4 |
CIRCRIP (682)
9344057M0100
|
26,01 € | 1 | Add |
| 5 |
PLATE, THRUST 1
4B1161540000
|
146,11 € | 1 | Add |
| 6 |
WASHER, CONICAL SPRING
902082500200
|
10,66 € | 1 | Add |
| 7 |
PRESSURE PLATE ASSY 2
2S3163600000
|
1.004,58 € | 1 | Add |
| 8 |
CLUTCH BOSS ASSY
2S3163700000
|
1.024,57 € | 1 | Add |
| 9 |
DISCO, DE EMBRAGUE
2H7163251000
|
18,72 € | 1 | Add |
| 10 |
PLATE, FRICTION
5YU163210000
|
20,51 € | 1 | Add |
| 11 |
PLATE, PRESSURE 1
2S3163510000
|
133,73 € | 1 | Add |
| 12 |
BEARING(2JN)
933060031500
|
39,18 € | 1 | Add |
| 13 |
SPRING, CLUTCH 2
5YU163340000
|
87,58 € | 1 | Add |
| 14 |
HOUSING, SPRING
36Y163350000
|
23,47 € | 1 | Add |
| 15 |
PLATE, PRESSURE 3
2S3163530000
|
12,03 € | 1 | Add |
| 16 |
BOLT, HEXAGON
970170602500
|
1,37 € | 1 | Add |
| 17 |
RESORTE
2S3165390100
|
24,23 € | 1 | Add |
| 18 |
PLACA DE EMBRAGUE
2H7163241000
|
24,92 € | 1 | Add |
| 18 |
DISCO, DE EMBRAGUE
2H7163251000
|
18,72 € | 1 | Add |
| 19 |
PLACA DE EMBRAGUE
47X163241000
|
48,93 € | 1 | Add |
| 19 |
DISCO, DE EMBRAGUE
2H7163251000
|
18,72 € | 1 | Add |
| 19 |
PLACA DE EMBRAGUE
2H7163241000
|
24,92 € | 1 | Add |
| 20 |
PLATE, THRUST 2
5VY161640000
|
20,99 € | 1 | Add |
| 21 |
COLLAR
903872502600
|
46,78 € | 1 | Add |
| 22 |
BEARING
933103355900
|
33,33 € | 1 | Add |
| 23 |
NUT, LOCK
2S3163770000
|
79,28 € | 1 | Add |
| 24 |
ROD, PUSH 1
4KG163560000
|
35,49 € | 1 | Add |
| 25 |
O-RING (26H)
932100663200
|
2,44 € | 1 | Add |
| 26 |
BALL (498)
935113202700
|
3,18 € | 5 | Add |
| 27 |
ROD, PUSH 2
2S3163570000
|
53,27 € | 1 | Add |
| 28 |
OIL SEAL
931020800800
|
11,23 € | 1 | Add |
| 29 |
PUSH LEVER COMP.
2S3163810000
|
318,23 € | 1 | Add |
| 30 |
BOLT, HEXAGON SOCKET HEAD(1VJ)
901100613800
|
3,60 € | 1 | Add |
| 31 |
PIN, DOWEL(6G8)
995300801200
|
1,46 € | 1 | Add |
| 32 |
SHIM, KICK SHAFT
2S3156450000
|
20,47 € | 1 | Add |
