Yamaha CUSTOM XVS1100A Classic 2005

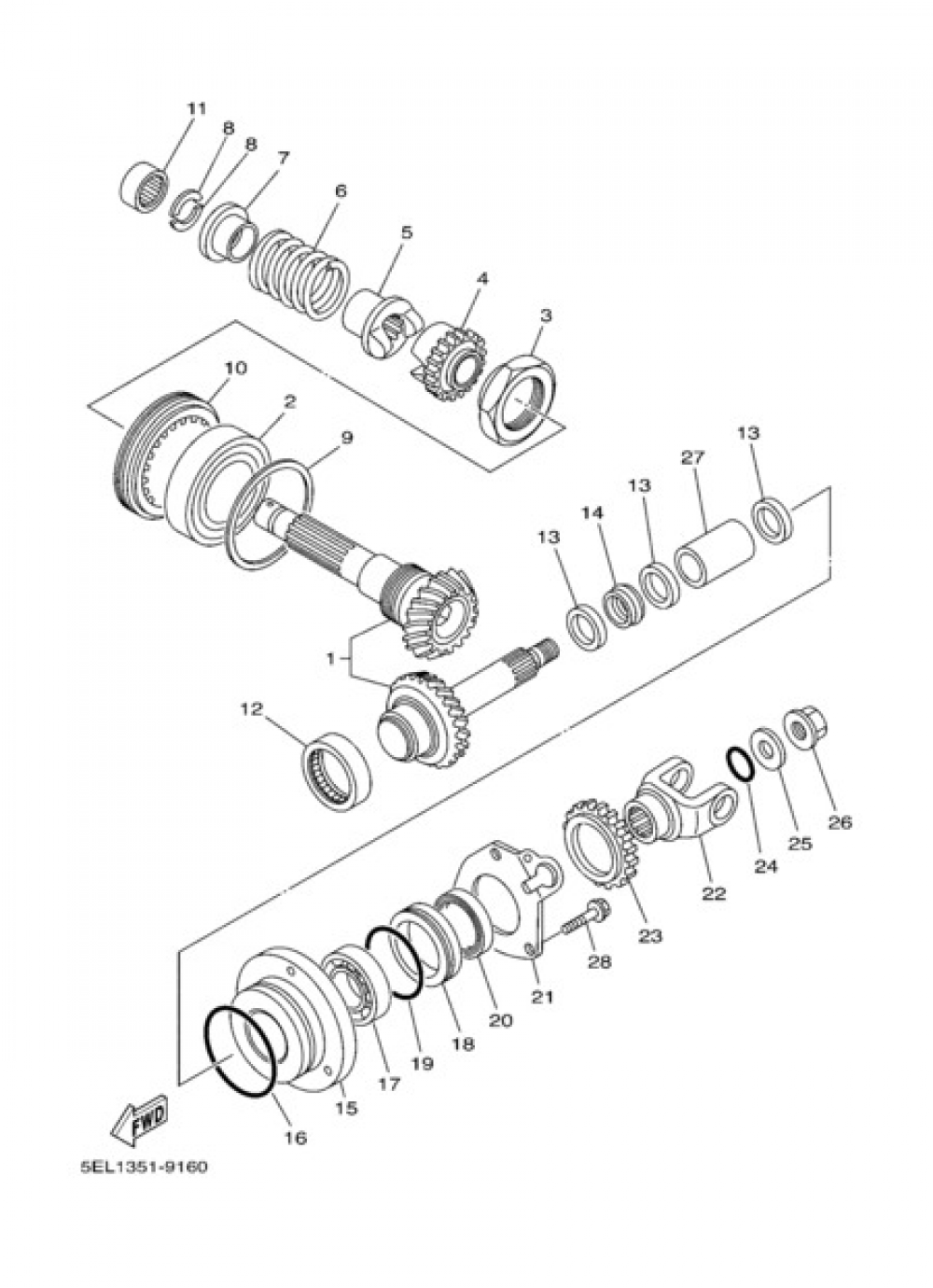

Add model to garageMID DRIVE GEAR Yamaha XVS1100A Classic 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
MIDDLE GEAR COMP SET.
999990380000
|
741,49 € | 1 | Add |
| 2 |
BRG,R-B 6209RSH2-C2 85MM 412G
933062090100
|
101,58 € | 1 | Add |
| 3 |
NUT (4X7)
901794432800
|
35,60 € | 1 | Add |
| 4 |
CAM, DRIVE
42X175260100
|
115,86 € | 1 | Add |
| 5 |
CAM, DRIVEN
31A175270000
|
97,61 € | 1 | Add |
| 6 |
SPRING, COMPRESSION (31A)
905017076200
|
44,73 € | 1 | Add |
| 7 |
HOLDER
4X7175240000
|
37,02 € | 1 | Add |
| 8 |
WASHER, THRUST
3H5175290000
|
4,51 € | 1 | Add |
| 9 |
SHIM, PINION
4X7175310015
|
6,06 € | 1 | Add |
| 9 |
SHIM, PINION
4X7175310030
|
6,06 € | 1 | Add |
| 9 |
SHIM, PINION
4X7175310050
|
6,06 € | 1 | Add |
| 10 |
NUT (4X7)
901798833600
|
35,60 € | 1 | Add |
| 11 |
BEARING, CYLINDRICAL (4X7)
933172202100
|
39,82 € | 1 | Add |
| 12 |
BRG,CYL-CAL ROLLER (10L)
933114405100
|
81,82 € | 1 | Add |
| 13 |
WASHER, PLATE (4X7)
90201255A600
|
10,08 € | 1 | Add |
| 14 |
SPACER, EXPANSION
1J746129Y100
|
22,16 € | 1 | Add |
| 15 |
HOUSING, BEARING
11H175510000
|
Obsolete | 1 | Not available |
| 16 |
O-RING (2H7)
932107136000
|
8,41 € | 1 | Add |
| 17 |
BRG,R-B 6205RC2 52MM 124G KY
933062054800
|
49,12 € | 1 | Add |
| 18 |
RETAINER, BEARING
4X7175540000
|
49,16 € | 1 | Add |
| 19 |
O-RING(50M)
932105058200
|
5,41 € | 1 | Add |
| 20 |
OIL SEAL (4X7)
931013509900
|
10,04 € | 1 | Add |
| 21 |
PLATE, BEARING
5EL175580000
|
34,05 € | 1 | Add |
| 22 |
YOKE, JOINT
5EL175560000
|
Obsolete | 1 | Not available |
| 23 |
ROTOR
5EL8135E0000
|
54,42 € | 1 | Add |
| 24 |
O-RING (2H7)
932101435900
|
4,29 € | 1 | Add |
| 25 |
WASHER, PLATE (1J7)
902011463300
|
8,20 € | 1 | Add |
