Yamaha CUSTOM XVS1100A Classic 2005

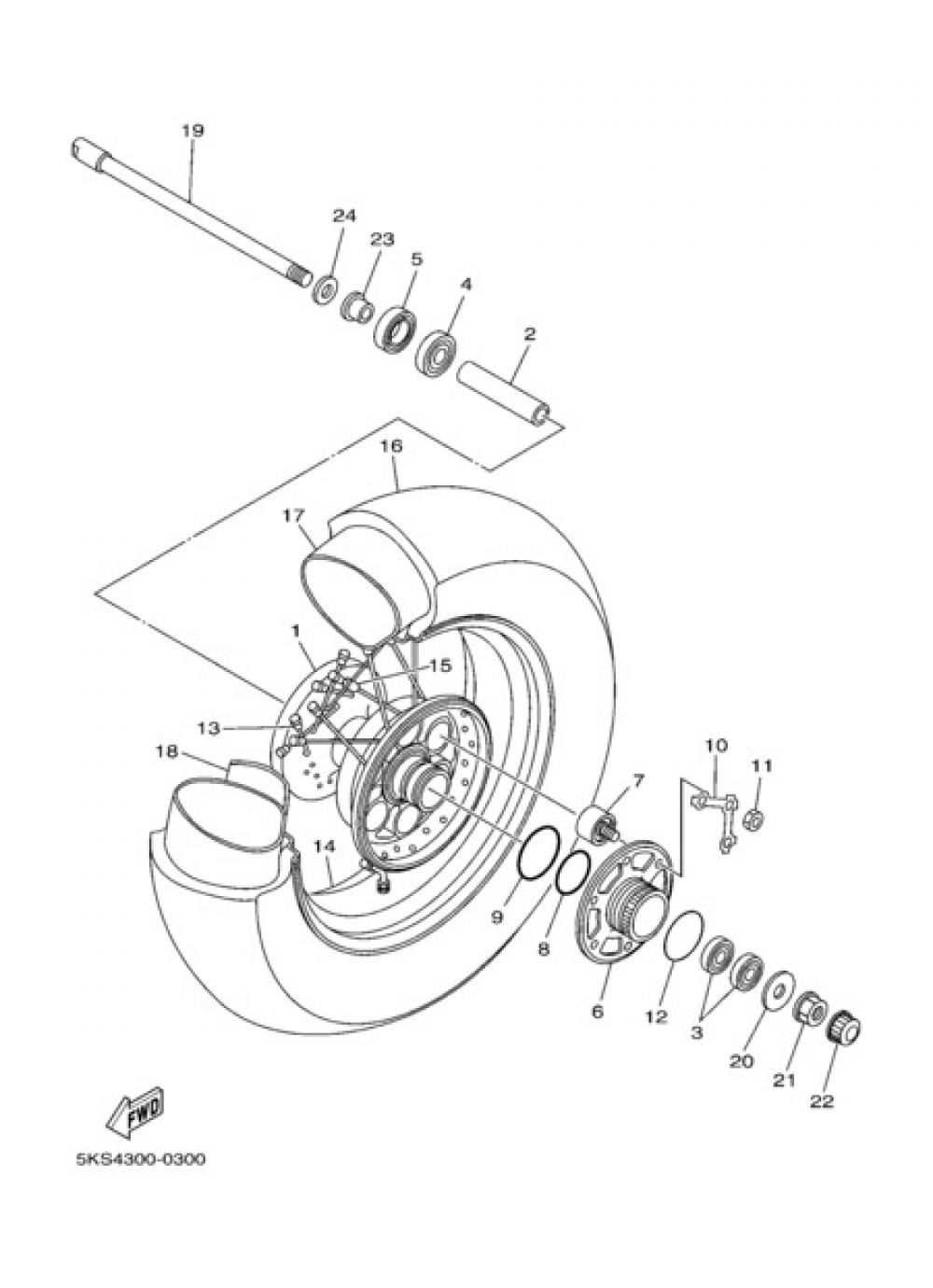

Add model to garageREAR WHEEL Yamaha XVS1100A Classic 2005
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HUB, REAR
5EL253110000
|
312,77 € | 1 | Add |
| 2 |
COLLAR(1FN)
90387173M500
|
25,07 € | 1 | Add |
| 3 |
BEARING
933062034800
|
32,83 € | 1 | Add |
| 4 |
BEARING(4HM)
933063031700
|
41,22 € | 1 | Add |
| 5 |
OIL SEAL (25X47X7-801)
931022504400
|
10,04 € | 1 | Add |
| 6 |
CLUTCH, HUB
16G253660100
|
195,50 € | 1 | Add |
| 7 |
DAMPER
5EL253640000
|
18,41 € | 1 | Add |
| 8 |
O-RING (11H)
932104853000
|
5,08 € | 1 | Add |
| 9 |
O-RING (11H)
932105953100
|
8,00 € | 1 | Add |
| 10 |
WASHER
16G254120000
|
9,34 € | 1 | Add |
| 11 |
NUT
901701001100
|
1,55 € | 1 | Add |
| 12 |
O-RING (4H7)
932105742800
|
7,61 € | 1 | Add |
| 13 |
SPOKE SET, REAR
5KS253040000
|
173,83 € | 1 | Add |
| 14 |
RIM
944451500200
|
684,98 € | 1 | Add |
| 15 |
BALANCER, WHEEL
3HT253980000
|
7,45 € | 1 | Add |
| 16 |
TIRE
941171500900
|
378,39 € | 1 | Add |
| 17 |
TUBE(4TR)
942171529800
|
131,43 € | 1 | Add |
| 18 |
BAND, RIM
943171518100
|
7,66 € | 1 | Add |
| 19 |
AXLE, WHEEL
5EL253811000
|
58,32 € | 1 | Add |
| 20 |
WASHER, PLATE(3LD)
90201160T200
|
9,73 € | 1 | Add |
| 21 |
NUT, FLANGE (4PT)
956041620000
|
35,60 € | 1 | Add |
| 22 |
CAP
5KS253350000
|
16,38 € | 1 | Add |
| 23 |
COLLAR (3HE)
90387177Y400
|
17,74 € | 1 | Add |
| 24 |
COLLAR, WHEEL
4H7253770000
|
7,60 € | 1 | Add |
