Yamaha CUSTOM XVS1300A Midnight Star 2014

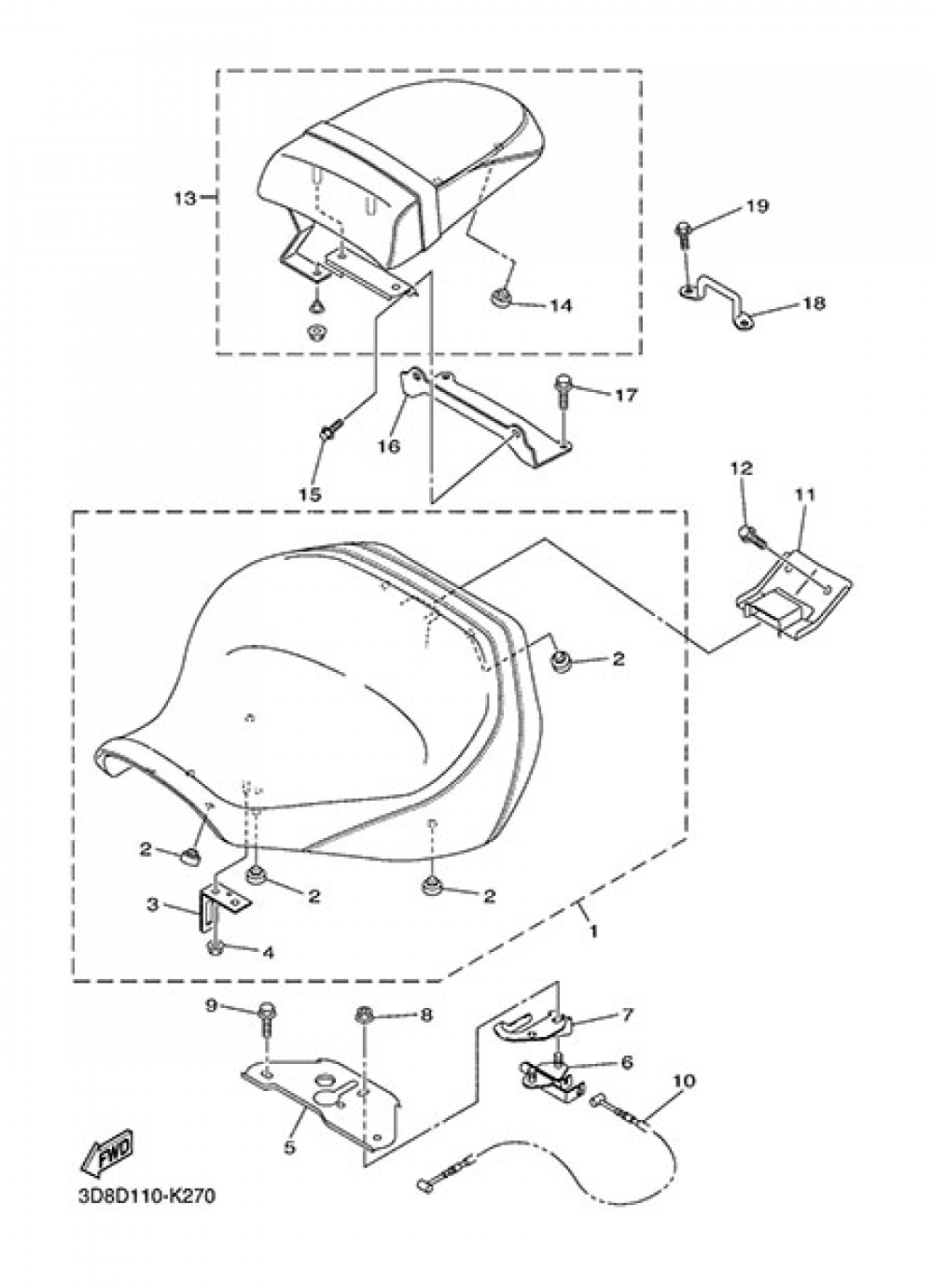

Add model to garageSEAT Yamaha XVS1300A Midnight Star 2014
Pos. | Ref./Description | Price | Qty. | |
---|---|---|---|---|
1 |
SINGLE ASIENTO CONJUNTO
3D8247101100
|
333,84 € | 1 | Add |
2 |
PAD, SEAT
22W247410000
|
1,50 € | 1 | Add |
3 |
BRACKET, SEAT
4NK247280000
|
9,85 € | 1 | Add |
4 |
NUT, U FLANGE
956040620000
|
1,50 € | 1 | Add |
5 |
BRACKET, SEAT 1
3D8213410100
|
20,84 € | 1 | Add |
6 |
SEAT LOCK ASSY
4BP247800000
|
66,07 € | 1 | Add |
7 |
PLATE
27D247920000
|
8,05 € | 1 | Add |
8 |
NUT, FLANGE(7NB)
957800650000
|
1,70 € | 1 | Add |
9 |
BOLT, FLANGE
958170601400
|
0,90 € | 1 | Add |
10 |
CABLE, SEAT LOCK
5PX2478E0000
|
16,63 € | 1 | Add |
11 |
BRACKET
3D82475N0000
|
26,74 € | 1 | Add |
12 |
BOLT, BUTTON HEAD
920120801200
|
1,28 € | 1 | Add |
13 |
ASIENTO TANDEM COMPLETO
3D8247500200
|
263,02 € | 1 | Add |
14 |
PAD, SEAT
22W247410000
|
1,50 € | 1 | Add |
15 |
BOLT, FLANGE
950220801200
|
0,71 € | 1 | Add |
16 |
BRACKET, SEAT LEVER 1
1D72475H0000
|
14,03 € | 1 | Add |
17 |
BOLT, FLANGE
950220801200
|
0,71 € | 1 | Add |
18 |
BRACKET 6
3D82475R0000
|
17,14 € | 1 | Add |
19 |
BOLT, FLANGE
950220801200
|
0,71 € | 1 | Add |
