Yamaha FZ- SERIES FZ1 ABS 2009

Add model to garage

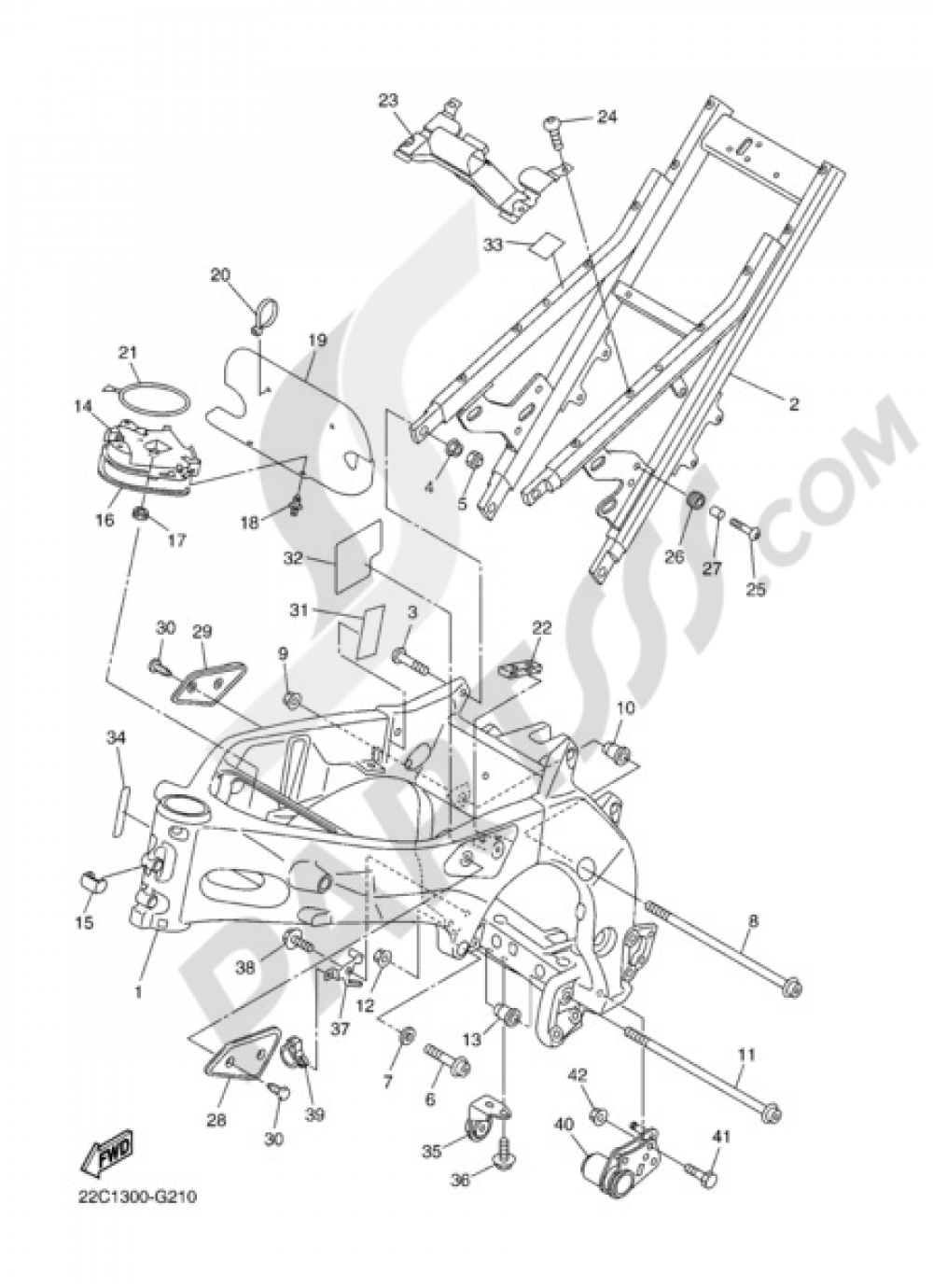

FRAME Yamaha FZ1 ABS 2009

Pos. Ref./Description Price Qty.
1 FRAME COMP.
2D12111043P0 2D12111041P0
2.442,84 € 1 Add
2 REAR FRAME COMP.
2D12119011P0 2D12119010P0
707,33 € 1 Add
3 SCREW, PAN HEAD
901571000100
2,64 € 1 Add
4 NUT, SELF-LOCKING
901851017000 956041020000
8,37 € 1 Add
5 CAP
5YU2143A0000
4,32 € 1 Add
6 BOLT, SMALL FLANGE
950241004000
2,32 € 1 Add
7 WASHER, PLATE
902011002000
2,38 € 1 Add
8 BOLT, HEXAGON SOCKET HEAD
901101002400
9,72 € 1 Add
9 NUT
901791002500
4,78 € 1 Add
10 BOLT, ENGINE ADJUSTING
4C8214950000
14,22 € 1 Add
11 BOLT, HEXAGON SOCKET HEAD
901101002400
9,72 € 1 Add
12 NUT
901791002500
4,78 € 1 Add
13 BOLT, ENGINE ADJUSTING
4C8214950000
14,22 € 1 Add
14 COVER 3
2D12117N0000
27,00 € 1 Add
15 CAP, TOOL BOX
2D1213990000
7,90 € 1 Add
16 DAMPER
2D12174Y0000
1,56 € 1 Add
17 GROMMET (11H)
904800133300
3,69 € 1 Add
18 RIVET
902690600100
1,33 € 1 Add
19 PROTECTOR
2D12117G0000
30,14 € 1 Add
20 BAND
1UA825910000
1,67 € 5 Add
21 BAND, TOOL
3YX213760000
16,78 € 1 Add
22 DAMPER, LOCATING 5
2D1241850000
4,38 € 1 Add
23 SOPORTE ACCESORIO DE DEPOSITO
5D0213450100 5D0213450000
134,44 € 1 Add
24 SCREW
901490602900 901490602600
2,46 € 1 Add
25 BOLT, BUTTON HEAD
920120602000 901110609800
0,65 € 1 Add
26 GROMMET
904801401300
1,96 € 1 Add
27 COLLAR (J10)
903870602600
2,89 € 1 Add
