Yamaha MAXI SCOOTERS X-Max 250 ABS 2013

Add model to garage

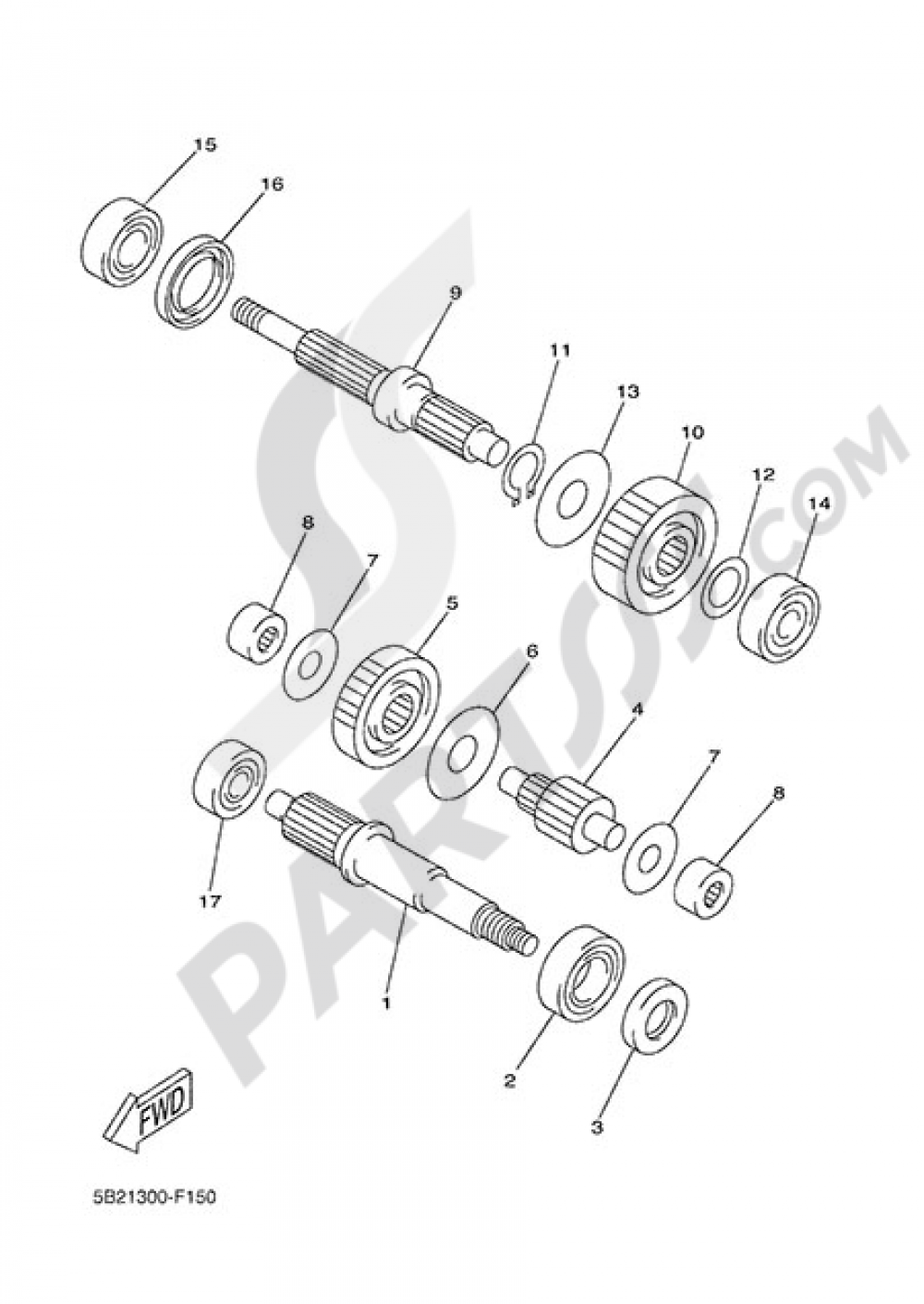

TRANSMISSION Yamaha X-Max 250 ABS 2013

Pos. Ref./Description Price Qty.
1 GEAR, PRIMARY DRIVE
1C0E61110000
174,75 € 1 Add
2 BEARING
93306255Y100
12,56 € 1 Add
3 OIL SEAL(1JY)
931022580000
14,33 € 1 Add
4 AXLE, MAIN
1C0E74111000
174,75 € 1 Add
5 GEAR, PRIMARY DRIVEN
5GM161510000 1C0E61510000
110,06 € 1 Add
6 WASHER, CONICAL SP
9020821X0000
4,26 € 1 Add
7 WASHER, PLATE
9020115X0500
5,13 € 1 Add
8 BEARING
93311415Y000
26,31 € 1 Add
9 AXLE, DRIVE
1C0E74210000
173,73 € 1 Add
10 GEAR, 1ST WHEEL
1C0E72112000
100,37 € 1 Add
11 CIRCLIP
9341025X0000
0,23 € 10 Add
12 WASHER, PLATE
9020123X0000
3,46 € 1 Add
13 WASHER, CONICAL SP
9020825X0000
4,78 € 1 Add
14 BRG,R-B 6000 26MM 19G NT
93306303YA00
10,84 € 1 Add
15 BEARING
93306272Y100
31,36 € 1 Add
16 OIL SEAL
931023200400
14,33 € 1 Add
17 BRG,R-B 6000 26MM 19G NT
93306302X900
10,26 € 1 Add
