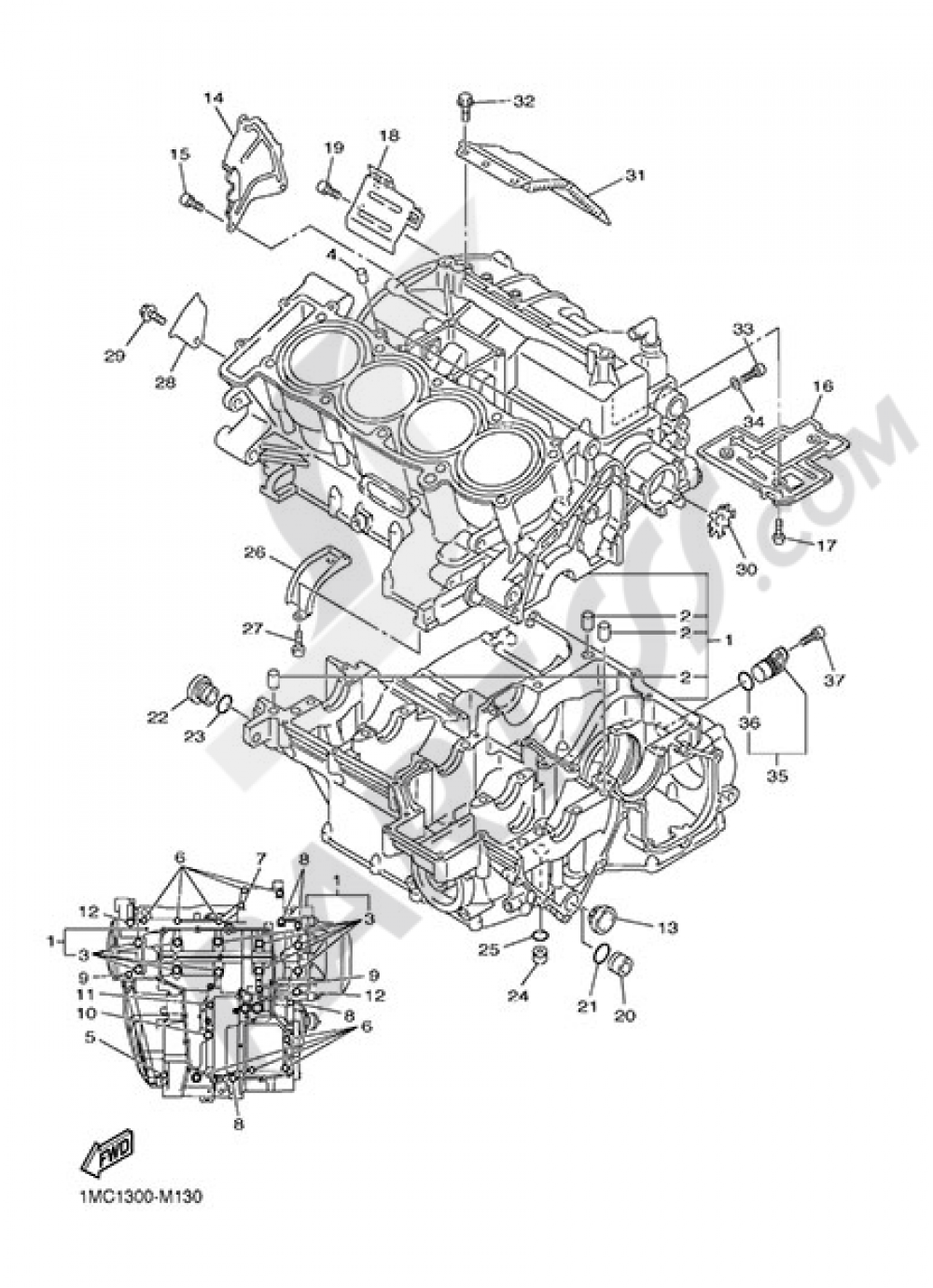

Yamaha SPORT TOURING FJR1300A 2015
Add model to garageCARTER Yamaha FJR1300A 2015
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CRANKCASE ASSY
1MC151000800
|
4.647,25 € | 1 | Add |
| 2 |
PIN, DOWEL
995301001400
|
3,18 € | 1 | Add |
| 3 |
BOLT, WITH WASHER
901190900100
|
17,98 € | 10 | Add |
| 4 |
P1N, DOWEL
995301011400
|
1,65 € | 5 | Add |
| 5 |
BOLT, FLANGE
958170604500
|
1,65 € | 1 | Add |
| 6 |
BOLT, FLANGE
958120605500
|
1,37 € | 1 | Add |
| 7 |
BOLT, FLANGE
958120605500
|
1,37 € | 1 | Add |
| 8 |
BOLT, FLANGE
958120606500
|
1,54 € | 1 | Add |
| 9 |
BOLT, FLANGE
958120608000
|
1,72 € | 1 | Add |
| 10 |
BOLT, FLANGE
958170805000
|
3,18 € | 1 | Add |
| 11 |
BOLT, FLANGE
958140806500
|
3,18 € | 1 | Add |
| 12 |
BOLT
901090616800
|
2,76 € | 1 | Add |
| 13 |
GAUGE, LEVEL
2H7153610000
|
29,34 € | 1 | Add |
| 14 |
PLACA RESPIRADERO
5JW111650100
|
58,65 € | 1 | Add |
| 15 |
BOLT,SOCKET
913170601200
|
0,93 € | 1 | Add |
| 16 |
PLATE, BREATHER 2
5JW111450000
|
79,63 € | 1 | Add |
| 17 |
SCREW
901490615600
|
1,72 € | 1 | Add |
| 18 |
COVER, OIL PUMP
5JW154120000
|
39,50 € | 1 | Add |
| 19 |
BOLT,SOCKET
913170601200
|
0,93 € | 1 | Add |
| 20 |
PLUG
903382026300
|
13,09 € | 1 | Add |
| 21 |
O-RING (1J7)
932101631400
|
1,98 € | 1 | Add |
| 22 |
PLUG
4H7151890000
|
22,69 € | 1 | Add |
| 23 |
ANILLO O
932102080200
|
4,89 € | 1 | Add |
| 24 |
PLUG
903381626200
|
11,49 € | 1 | Add |
| 25 |
O-RING(3LD)
932101279000
|
1,25 € | 5 | Add |
| 26 |
PLATE
5JW151910000
|
36,67 € | 1 | Add |
| 27 |
SCREW
901490615600
|
1,72 € | 1 | Add |
