Yamaha SPORT TOURING FJR1300A 2015

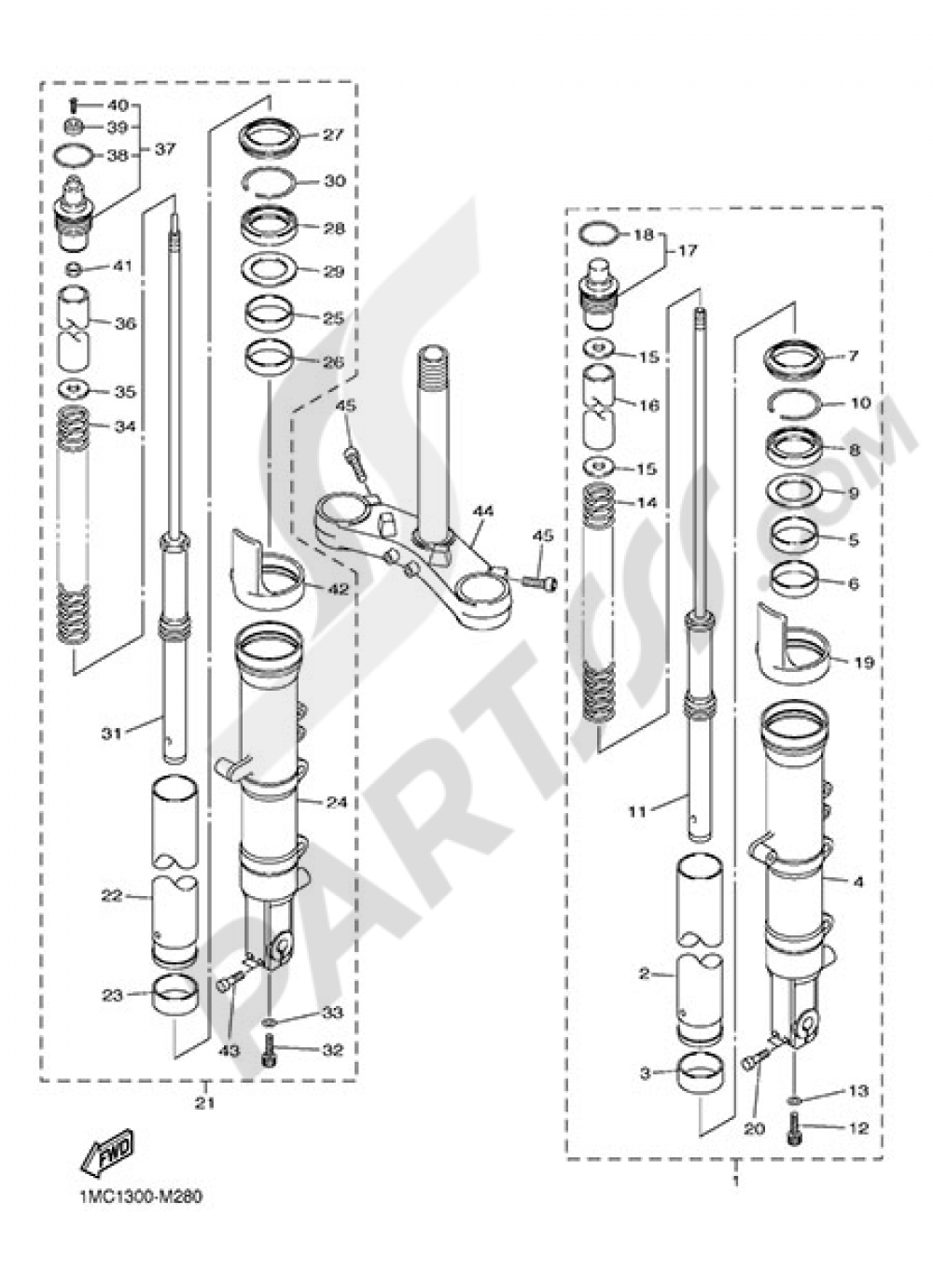

Add model to garageFRONT FORK Yamaha FJR1300A 2015
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
FRONT FORK ASSY (L.H)
1MC231020000
|
883,34 € | 1 | Add |
| 2 |
INNER TUBE COMP.1
3P6231101100
|
Obsolete | 1 | Not available |
| 3 |
METAL, SLIDE 2
4SV231351000
|
21,99 € | 1 | Add |
| 4 |
TUBE, OUTER (LEFT)
1MC231260000
|
489,31 € | 1 | Add |
| 5 |
METAL, SLIDE 1
4SV231251000
|
22,34 € | 1 | Add |
| 6 |
METAL, SLIDE 2
3P6231350000
|
22,21 € | 1 | Add |
| 7 |
SEAL, DUST
4SV231440000
|
21,57 € | 1 | Add |
| 8 |
OIL SEAL
4SV231450100
|
19,87 € | 1 | Add |
| 9 |
SEAT 1
4SV231150000
|
7,89 € | 1 | Add |
| 10 |
CLIP, OIL SEAL
4SV231560000
|
2,64 € | 1 | Add |
| 11 |
CYL. COMP.,2
1MC2315K0000
|
408,80 € | 1 | Add |
| 12 |
BOLT, HEXAGON SOCKET HEAD
9011010N5200
|
8,44 € | 1 | Add |
| 13 |
GASKET (5R6)
904301017100
|
4,56 € | 5 | Add |
| 14 |
SPRING, FRONT FORK
1MC231410000
|
46,84 € | 1 | Add |
| 15 |
WASHER, PLATE
90201140J100
|
2,43 € | 1 | Add |
| 16 |
SPACER
1MC231180000
|
Obsolete | 1 | Not available |
| 17 |
BOLT, CAP
1MC231110000
|
109,44 € | 1 | Add |
| 18 |
O-RING(4SV)
9321040N5000
|
4,28 € | 1 | Add |
| 19 |
COVER
4SV2331G0000
|
20,34 € | 1 | Add |
| 20 |
BOLT,SOCKET
913140804500
|
2,24 € | 1 | Add |
| 21 |
FRONT FORK ASSY (R.H)
1MC231030000
|
Obsolete | 1 | Not available |
| 22 |
INNER TUBE COMP.1
3P6231101100
|
Obsolete | 1 | Not available |
| 23 |
METAL, SLIDE 2
4SV231351000
|
21,99 € | 1 | Add |
| 24 |
OUTER TUBE COMP. (R.H)
3P6231070100
|
489,31 € | 1 | Add |
| 25 |
METAL, SLIDE 1
4SV231251000
|
22,34 € | 1 | Add |
| 26 |
METAL, SLIDE 2
3P6231350000
|
22,21 € | 1 | Add |
| 27 |
SEAL, DUST
4SV231440000
|
21,57 € | 1 | Add |
