Yamaha 50cc SCOOTERS Bw's 50 2006

Add model to garage

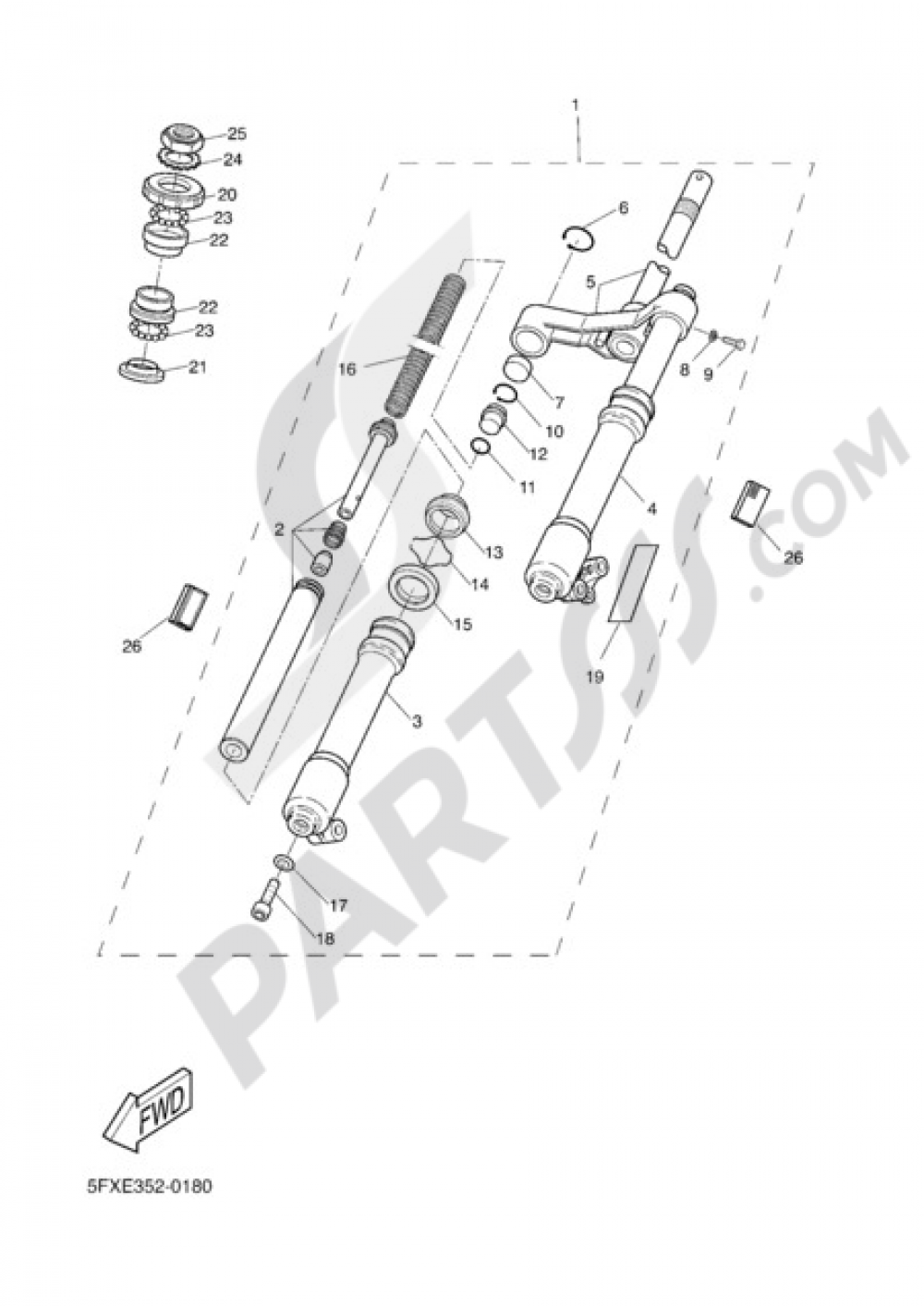

FRONT FORK Yamaha Bw's 50 2006

Pos. Ref./Description Price Qty.
1 FRONT FROK ASSY
5FXF31000200
399,47 € 1 Add
2 INNER TUBE COMP.1
5FXF31100000
Obsolete 1 Not available
3 OUTER, TUBE 2
5FXF31360000
122,57 € 1 Add
4 TUBE, OUTER 1
5FXF31260000
155,67 € 1 Add
5 UNDER, BRACKET COMP.
5BRF33400200
157,85 € 1 Add
6 RING, SNAP
4TDF31530000
Obsolete 1 Not available
7 PLUG, INNER TUBE
4TDF31540000
Obsolete 1 Not available
8 WASHER, CAP
4TDF31120000
Obsolete 1 Not available
9 BOLT, SPECIAL
4TDF33940000
2,59 € 1 Add
10 CIRCLIP
4TDF31830000
6,07 € 1 Add
11 O-RING
4TDF31470000
Obsolete 1 Not available
12 BOLT, CAP
4TDF31110000
14,03 € 1 Add
13 SEAL, DUST
4TDF31440000
16,62 € 1 Add
14 CLIP, OIL SEAL
4TDF31560000
7,28 € 1 Add
15 OIL SEAL
4TDF31450000
24,84 € 1 Add
16 SPRING, FRONT FORK
4TDF31410000
19,46 € 1 Add
17 WASHER, FELT
4CUF31650000
Obsolete 1 Not available
18 BOLT, HEXAGON SOCKET HEAD
4TDF31810000
5,26 € 1 Add
19 EMBLEM
5BRF31080000
Obsolete 1 Not available
20 MAINTENANCE PART
4SBF34110200 4SBF34110100
7,41 € 1 Add
21 RACE, BALL 4
4SBF34140000
8,12 € 1 Add
22 RACE, BALL 2
4SBF34120000
7,76 € 1 Add
23 PLANE BEARING, STEERING
4SBF38120000
8,05 € 1 Add
24 WASHER
4SBF34270100
9,47 € 1 Add
25 NUT
9017925X0000 4SBF34530100
2,11 € 5 Add
26 REFLECTOR
5HEH51110000
11,43 € 1 Add
