Yamaha 50cc SCOOTERS Bw's 50 2006

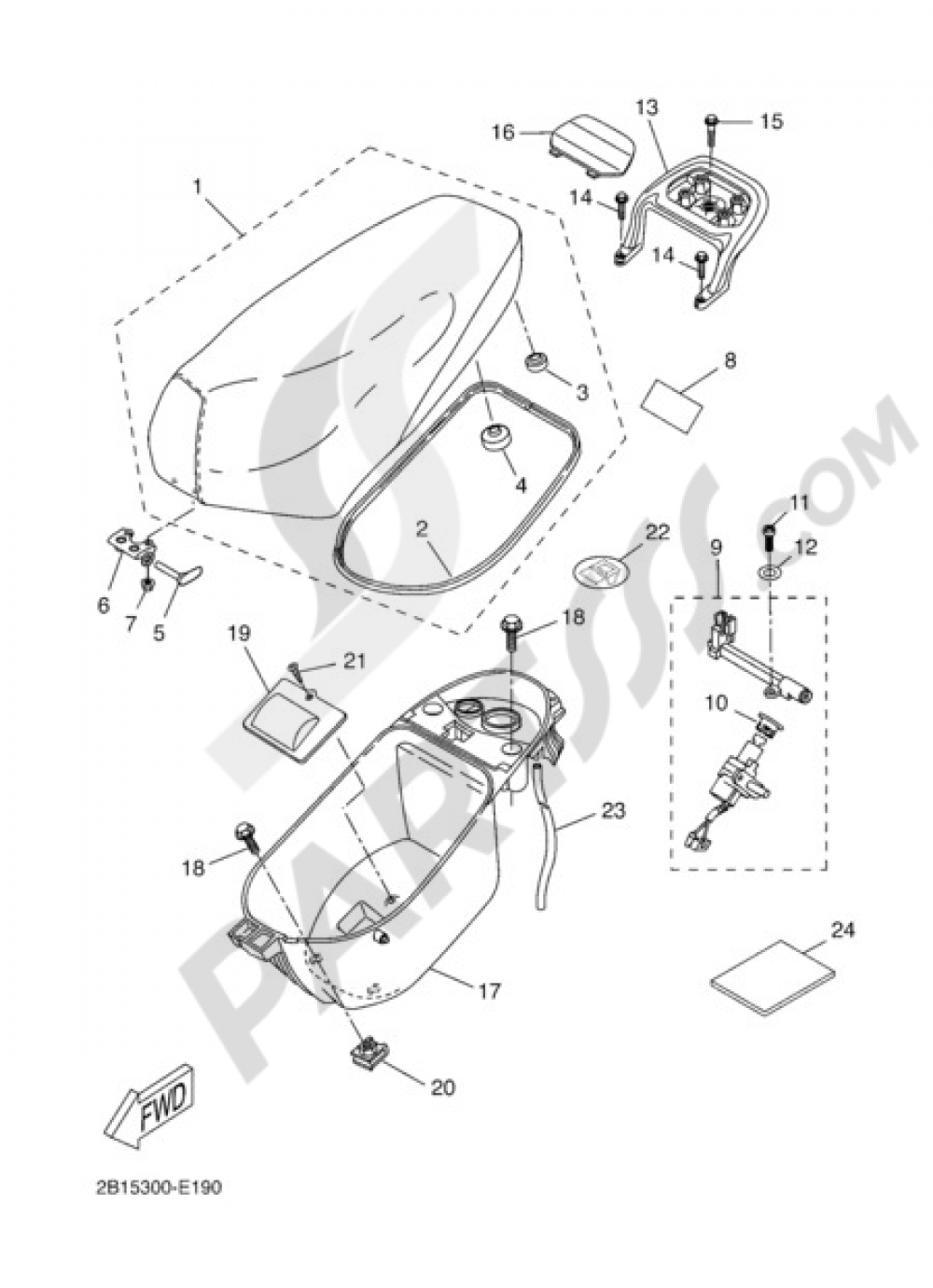

Add model to garageSEAT Yamaha Bw's 50 2006
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
DOUBLE SEAT ASSY
5FXF47300000
|
Obsolete | 1 | Not available |
| 2 |
SEAL
4SBF475M0000
|
9,91 € | 1 | Add |
| 3 |
PAD, SEAT
3VLF47410000
|
5,90 € | 1 | Add |
| 4 |
PAD, SEAT
3VLF47411000
|
5,90 € | 1 | Add |
| 5 |
PIN, WHITH HEAD
9024110X0000
|
8,59 € | 1 | Add |
| 6 |
HINGE, SEAT
4CUF47260000
|
Obsolete | 1 | Not available |
| 7 |
NUT
9017906X0000
|
8,09 € | 10 | Add |
| 8 |
LABEL 1
5RJF48750100
|
Obsolete | 1 | Not available |
| 9 |
KEY SET
1B0H20210000
|
147,54 € | 1 | Add |
| 10 |
CAP, SWITCH
1S0H25520000
|
5,48 € | 1 | Add |
| 11 |
SCREW, PAN
985170602000
|
2,01 € | 5 | Add |
| 12 |
WASHER(6TA)
929070660000
|
0,62 € | 10 | Add |
| 13 |
CARRIER, 2
5FXF48420000
|
Obsolete | 1 | Not available |
| 13 |
CARRIER, REAR
5FXF48421000
|
Obsolete | 1 | Not available |
| 14 |
BOLT, WASHER BASED
9010506X0200
|
Obsolete | 1 | Not available |
| 15 |
BOLT
9010508X0200
|
Obsolete | 1 | Not available |
| 16 |
COVER 2
5FXF48460000
|
Obsolete | 1 | Not available |
| 17 |
BOX 1
4SBF473R0200
|
Obsolete | 1 | Not available |
| 18 |
BOLT
9010906X0500
|
5,48 € | 10 | Add |
| 19 |
LID 1
4SBF473T0000
|
Obsolete | 1 | Not available |
| 20 |
NUT 1
25G215350000
|
6,24 € | 1 | Add |
| 21 |
SCREW, TAPPING
9016705X0100
|
2,01 € | 10 | Add |
| 22 |
LABEL CAUTION
5DNF415A1000
|
12,37 € | 1 | Add |
| 23 |
PIPE,OVER FLOW
4SBF43184100
|
Obsolete | 1 | Not available |
| 24 |
MANUAL,OWNER'S
1B0F8199H000
|
21,98 € | 1 | Add |
