Yamaha 50cc SCOOTERS NS50N 2014

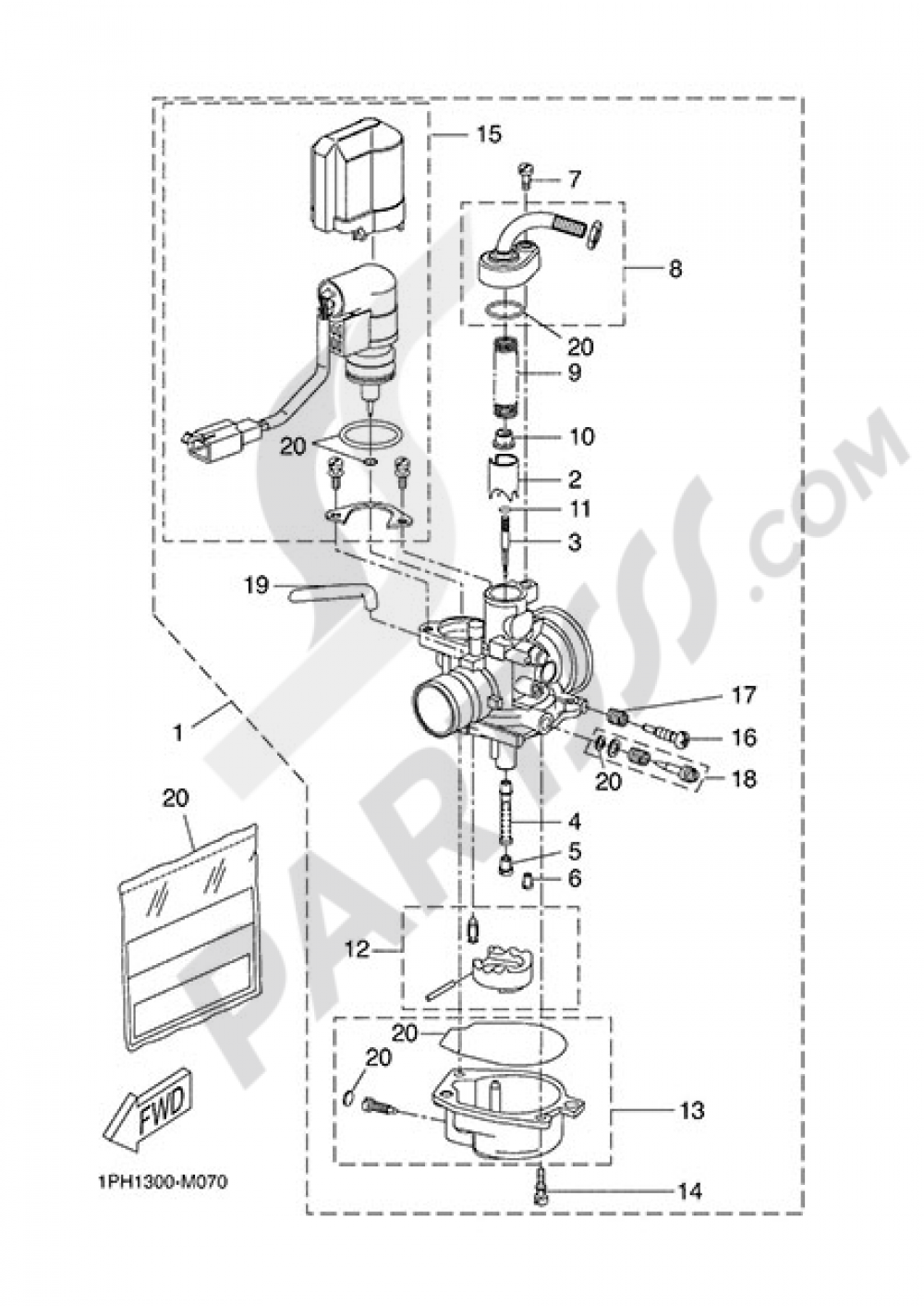

Add model to garageCARBURET0R Yamaha NS50N 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
CARBURETOR ASSY 1
4B0E4D010100
|
304,93 € | 1 | Add |
| 2 |
VALVE, THROTTLE 1
5RNE4D124000
|
73,14 € | 1 | Add |
| 3 |
NEEDLE
1PHE4D362500
|
49,65 € | 1 | Add |
| 4 |
NOZZLE, MAIN
1PHE4D410000
|
28,04 € | 1 | Add |
| 5 |
JET, MAIN
1PHE4D433000
|
3,35 € | 1 | Add |
| 6 |
JET, PILOT #0.38
5ADE43420000
|
8,98 € | 1 | Add |
| 7 |
SCREW, PAN HEAD
5BRE43250000
|
Obsolete | 1 | Not available |
| 8 |
DIAPHRAGM ASS'Y 2
1PHE4D691000
|
84,59 € | 1 | Add |
| 9 |
SPRING, THROTTLE VALVE
4SBE43310100
|
3,77 € | 5 | Add |
| 10 |
STOPPER
4SBE43770000
|
2,88 € | 1 | Add |
| 11 |
CLIP
4SBE41370000
|
0,86 € | 1 | Add |
| 12 |
VALVE NEEDLE
4SBWE4190000
|
38,69 € | 1 | Add |
| 13 |
BODY, FLOAT CHAMBE
1PHE4D810000
|
51,99 € | 1 | Add |
| 14 |
SCREW
5RNE4D160000
|
1,49 € | 1 | Add |
| 15 |
STARTER SET
5RNE4D0A0000
|
173,49 € | 1 | Add |
| 16 |
AIR SCREW SET
4SBE41040000
|
5,25 € | 1 | Add |
| 17 |
SPRING, AIR ADJUSTING
4SBE41340000
|
Obsolete | 1 | Not available |
| 18 |
THROTTLE SCREW SET
1S1E41030000
|
29,41 € | 1 | Add |
| 19 |
PIPE
5RNE4D970000
|
7,94 € | 1 | Add |
| 20 |
GASKET KIT
5RNWE4D10000
|
35,07 € | 1 | Add |
