Yamaha 50cc SCOOTERS NS50N 2014

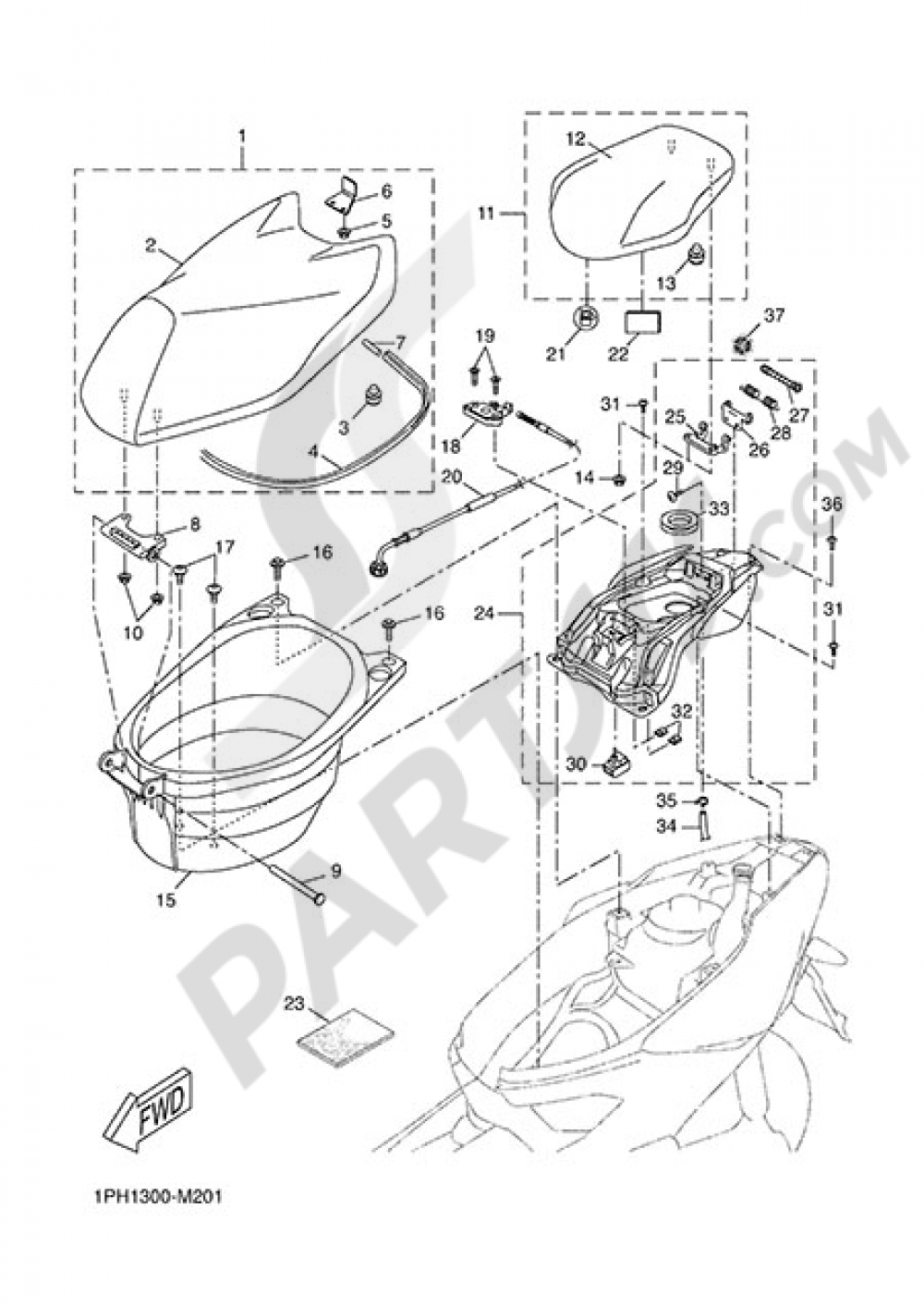

Add model to garageSEAT & LUGGAGECARRIER Yamaha NS50N 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
SINGLE SEAT ASSY
1PLF47100000
|
226,42 € | 1 | Add |
| 2 |
COVER SEAT
1PLF47310000
|
34,20 € | 1 | Add |
| 3 |
SEAT CUSHION
2RNF47410000
|
2,01 € | 1 | Add |
| 4 |
SEAL
1PHF475M0000
|
17,42 € | 1 | Add |
| 5 |
NUT, SELF-LOCKING
9018506X0100
|
0,22 € | 1 | Add |
| 6 |
BRACKET, SEAT LOCK
1PHF478X0000
|
38,50 € | 1 | Add |
| 7 |
SEAL
1PHF475M1000
|
16,02 € | 1 | Add |
| 8 |
HINGE SEAT
5DSF47260000
|
16,71 € | 1 | Add |
| 9 |
PIN
9024110X0100
|
Obsolete | 1 | Not available |
| 11 |
TANDEM SEAT ASSY
1PLF47500000
|
59,56 € | 1 | Add |
| 12 |
COVER, TANDEM SEAT
1PLF47510000
|
34,20 € | 1 | Add |
| 13 |
SEAT CUSHION
2RNF47410000
|
2,01 € | 1 | Add |
| 15 |
BOX 1
5C2F473R1100
|
84,11 € | 1 | Add |
| 16 |
BOLT, WITH WASHER
9011906X1100
|
11,56 € | 1 | Add |
| 17 |
BOLT
901090622000
|
2,17 € | 1 | Add |
| 18 |
SEAT LOCK ASSY
3C6F47800000
|
45,68 € | 1 | Add |
| 19 |
BOLT
92B120602500
|
0,11 € | 1 | Add |
| 20 |
CABLE, SEAT LOCK
1PHF478E0000
|
40,45 € | 1 | Add |
| 21 |
LABEL CAUTION
5DNF415A1000
|
12,02 € | 1 | Add |
| 22 |
LABEL
1PHF118N0000
|
23,39 € | 1 | Add |
| 23 |
O/M NS50'13
1PHF8199S000
|
20,84 € | 1 | Add |
| 23 |
OM NS50'13
1PHF8199G000
|
21,34 € | 1 | Add |
