Yamaha 50cc SCOOTERS NS50N 2014

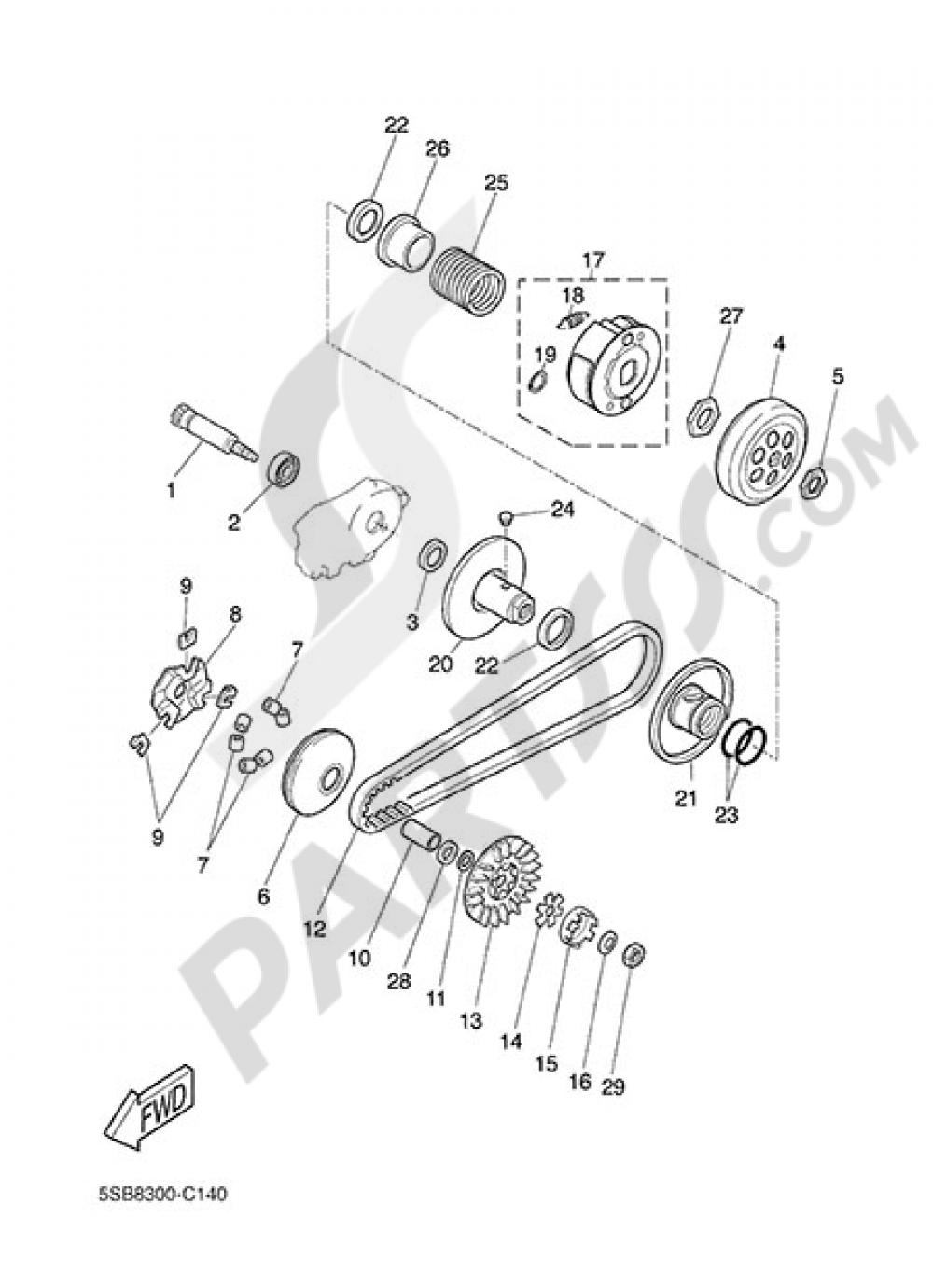

Add model to garageCLUTCH Yamaha NS50N 2014
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
GEAR, PRIMARY DRIV
3VLE61110000
|
76,37 € | 1 | Add |
| 2 |
COJINETE
93306253YN00
|
10,88 € | 1 | Add |
| 3 |
OIL SEAL
931021781100
|
1,40 € | 1 | Add |
| 4 |
CLUTCH HOUSING COMP.
5BRE66111000
|
66,49 € | 1 | Add |
| 5 |
NUT
9017010X0100
|
7,20 € | 5 | Add |
| 6 |
PRIMARY SLIDING SH
5WWE76201000
|
54,00 € | 1 | Add |
| 7 |
WEIGHT
4B0E76320000
|
3,88 € | 6 | Add |
| 8 |
CAM
4B0E76230000
|
25,87 € | 1 | Add |
| 9 |
SLIDER
4B0E76530000
|
2,53 € | 12 | Add |
| 10 |
COLLAR(3FC)
90387135U900
|
12,88 € | 1 | Add |
| 11 |
WASHER, PLATE(3FC)
90201133M800
|
3,77 € | 1 | Add |
| 12 |
V-BELT
5RNE76411000
|
26,69 € | 1 | Add |
| 13 |
SHEAVE, PRIMARY FI
5WWE76111000
|
21,95 € | 1 | Add |
| 14 |
WASHER, CLAW(3FC)
902141305500
|
7,26 € | 1 | Add |
| 15 |
CLUTCH, ONEWAY
3VLE56570000
|
7,66 € | 1 | Add |
| 16 |
WASHER 823214910000
902081001200
|
9,48 € | 5 | Add |
| 17 |
CLUTCH CARRIER ASSY
5HEE66201100
|
72,55 € | 1 | Add |
| 18 |
SPRING, CLUTCH WEIGHT 1
5HEE66261000
|
5,25 € | 3 | Add |
| 19 |
CIRCLIP
9343006X0100
|
0,52 € | 10 | Add |
| 20 |
SECONDARY FIXED SHEAVE COMP.
5BRE76601000
|
131,59 € | 1 | Add |
| 21 |
SECONDARY SLIDING
5BRE76701000
|
94,93 € | 1 | Add |
| 22 |
OIL SEAL (560)
931093480100
|
7,94 € | 1 | Add |
| 23 |
O-RING
9321040X0000
|
3,16 € | 10 | Add |
| 24 |
PIN, GUIDE
5BRE76641000
|
1,55 € | 10 | Add |
| 25 |
SPRING (278-13169-00)
9050135X0100
|
14,65 € | 1 | Add |
| 26 |
SEAT, SECONDARY SPRING
5BRE76841000
|
12,36 € | 1 | Add |
| 27 |
NUT
9017028X0000
|
5,77 € | 5 | Add |
