Yamaha AVENTURA XT1200Z SuperTenere 2010

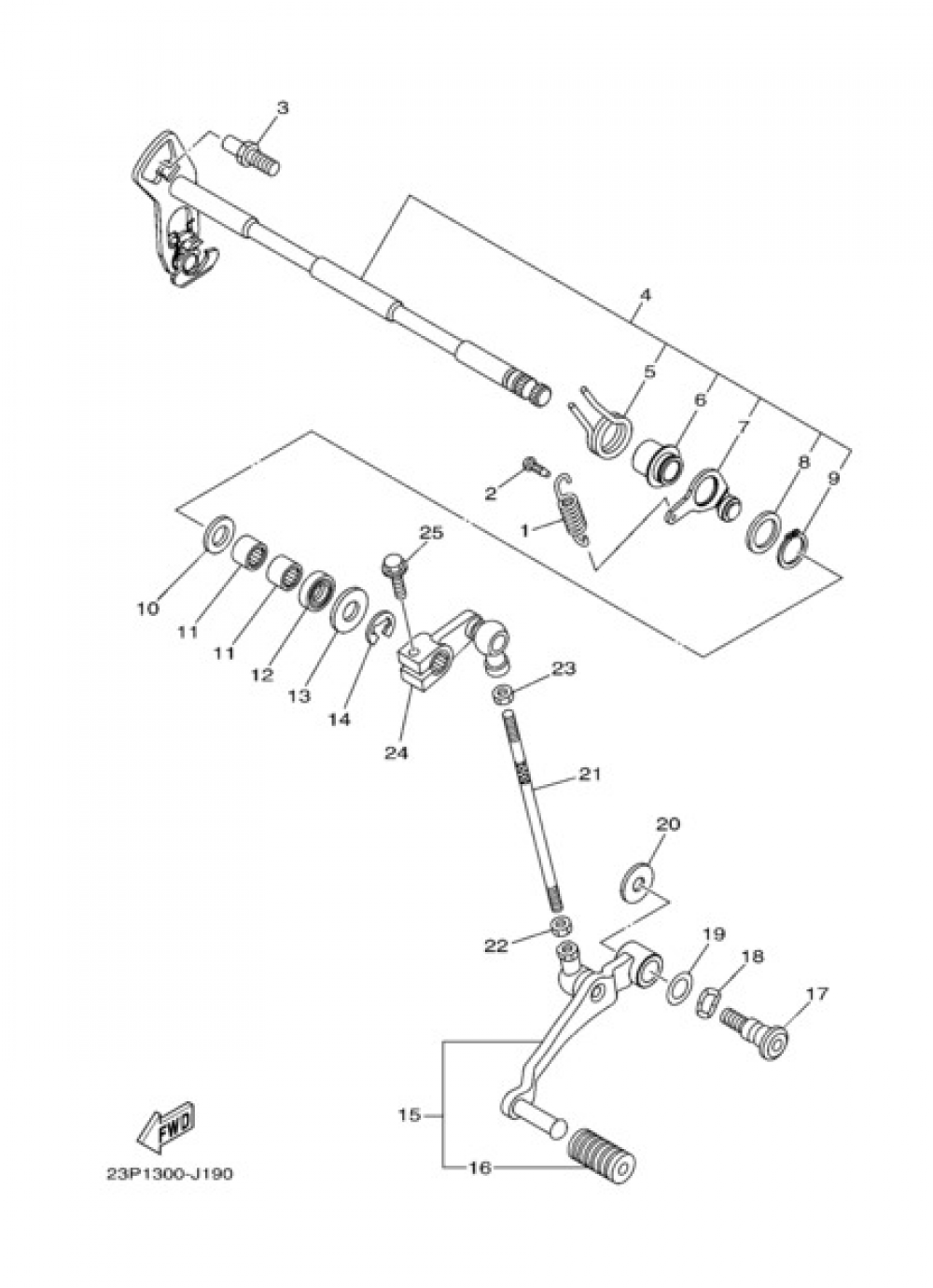

Add model to garageGEAR SHIFT AND PEDAL Yamaha XT1200Z SuperTenere 2010
| Pos. | Ref./Description | Price | Qty. | |
|---|---|---|---|---|
| 1 |
HANGER, SPRING
2C0181440000
|
3,43 € | 1 | Add |
| 2 |
HOOK, SPRING
132163460000
|
3,49 € | 1 | Add |
| 3 |
STOPPER, SCREW
5VK181270000
|
7,34 € | 1 | Add |
| 4 |
EJE SELECTOR COMPLETO
23P181010200
|
129,35 € | 1 | Add |
| 5 |
SPRING, TORSION
905083214100
|
5,26 € | 1 | Add |
| 6 |
ESPACIADOR
B7N181750000
|
22,60 € | 1 | Add |
| 7 |
STOPPER LEVER ASSY
2C0181400000
|
46,87 € | 1 | Add |
| 8 |
WASHER, PLATE (30X)
90201177G400
|
3,25 € | 1 | Add |
| 9 |
CIRCLIP
9341017X0000
|
0,39 € | 10 | Add |
| 11 |
BEARING
933171129500
|
11,60 € | 1 | Add |
| 12 |
SEAL, OIL (30X)
931021232100
|
14,71 € | 1 | Add |
| 13 |
WASHER, PLATE (353)
902011257500
|
3,32 € | 1 | Add |
| 14 |
CIRCLIP
990061060000
|
1,61 € | 5 | Add |
| 15 |
SHIFT PEDAL ASSY
23P181100000
|
172,53 € | 1 | Add |
| 16 |
COVER, CHANGE PEDAL
1W6181130000
|
4,03 € | 1 | Add |
| 17 |
BOLT
4BP274341100
|
3,25 € | 1 | Add |
| 18 |
WASHER, WAVE (17W)
902061207400
|
1,50 € | 1 | Add |
| 19 |
WASHER, PLATE
902011201300
|
1,50 € | 1 | Add |
| 20 |
WASHER, PLATE (3L7)
902010878400
|
3,25 € | 1 | Add |
| 21 |
ROD, SHIFT
2GV181150000
|
6,57 € | 1 | Add |
| 22 |
NUT (2H9)
901700622800
|
2,59 € | 1 | Add |
| 23 |
NUT
9538R0670000
|
0,45 € | 1 | Add |
| 24 |
ARM, SHIFT
23P181120000
|
81,59 € | 1 | Add |
| 25 |
BOLT, FLANGE
958170602000
|
1,22 € | 1 | Add |
